WG320240D1-TMI-TZ#

Graphic LCD 4.7'' 320x240, B/L white, STN blue neg, COB, 5V, Interface No controller, 6 O'clock, VNEG, Temperature compensator, Black plastic frame

DESCRIPTION

New version with Black plastic board // Previous version with silver metal frame EOL P/N WG320240D-TMI-TZ# in 'Related Product' section on the bottom page

WG320240D1 is monochrome 320x240 LCD graphic displays which is having the module dimension of 142x96 mm and AA size of 95.97x71.97 mm, diagonal size 4.7 inch.  This LCD graphic display is without controller on module. Operating temperatures from -20℃ to +70℃;  storage temperatures range from -30℃ to +80℃.

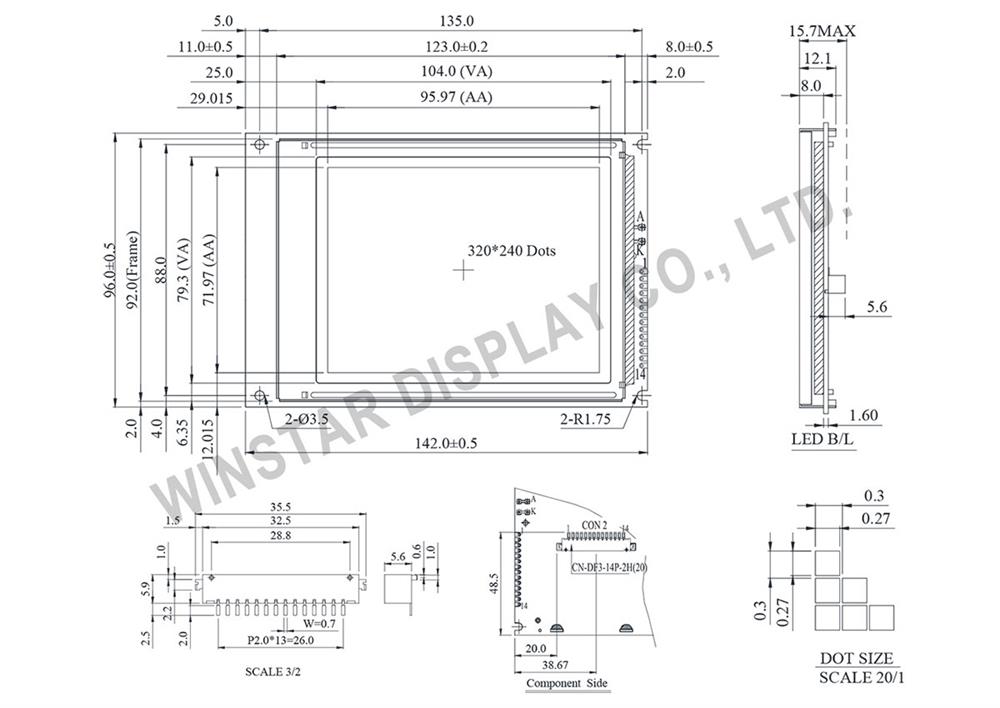

DRAWING



Winstar Graphic LCD Module 320x240 - WG320240D1



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 FRAME Scan start-up signal
2 DF Frame reverse signal(alternate signal)
3 LOAD Data latch pulse
4 CP Data shift pulse
5 DISPOFF Display off H:ON L:OFF
6~9 D0~D3 Data bus line
10 VDD Power supply for logic
11 VSS Ground
12 VEE Negative Voltage Output
13 VO Contrast Adjustment
14 FG Frame ground



Mechanical Data

ItemStandard ValueUnit
Module Dimension 142.0 × 96.0 mm
Viewing Area 104.0 × 79.3 mm
Mounting Hole 135.0 × 88.0 mm
Dot Pitch 0.30 × 0.30 mm
Dot Size 0.27 × 0.27 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 21.6 V




SKU: WG320240D1-TMI-TZ#
Brand: Winstar
Disponibile: Si
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€67,90
€60,00
€47,60

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€67,90 IVA esclusa

DESCRIPTION

New version with Black plastic board // Previous version with silver metal frame EOL P/N WG320240D-TMI-TZ# in 'Related Product' section on the bottom page

WG320240D1 is monochrome 320x240 LCD graphic displays which is having the module dimension of 142x96 mm and AA size of 95.97x71.97 mm, diagonal size 4.7 inch.  This LCD graphic display is without controller on module. Operating temperatures from -20℃ to +70℃;  storage temperatures range from -30℃ to +80℃.




DRAWING



Winstar Graphic LCD Module 320x240 - WG320240D1



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 FRAME Scan start-up signal
2 DF Frame reverse signal(alternate signal)
3 LOAD Data latch pulse
4 CP Data shift pulse
5 DISPOFF Display off H:ON L:OFF
6~9 D0~D3 Data bus line
10 VDD Power supply for logic
11 VSS Ground
12 VEE Negative Voltage Output
13 VO Contrast Adjustment
14 FG Frame ground



Mechanical Data

ItemStandard ValueUnit
Module Dimension 142.0 × 96.0 mm
Viewing Area 104.0 × 79.3 mm
Mounting Hole 135.0 × 88.0 mm
Dot Pitch 0.30 × 0.30 mm
Dot Size 0.27 × 0.27 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 21.6 V




Specifiche di prodotto
Brand Winstar
Size 4.7"
Risoluzione 320x240
Area Attiva (mm) 95.97x71.97
Dot Size 0.27x0.27
Colore B/L, Tipo LCD B/L white, STN blue neg
Alimentazione 5V
Interfaccia Display No controller
IC Controller Display X
Struttura Costruttiva COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 14
Passo Pin 2mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 4.7"
Risoluzione 320x240
Area Attiva (mm) 95.97x71.97
Dot Size 0.27x0.27
Colore B/L, Tipo LCD B/L white, STN blue neg
Alimentazione 5V
Interfaccia Display No controller
IC Controller Display X
Struttura Costruttiva COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 14
Passo Pin 2mm
Preferred - Not Preferred Preferred
