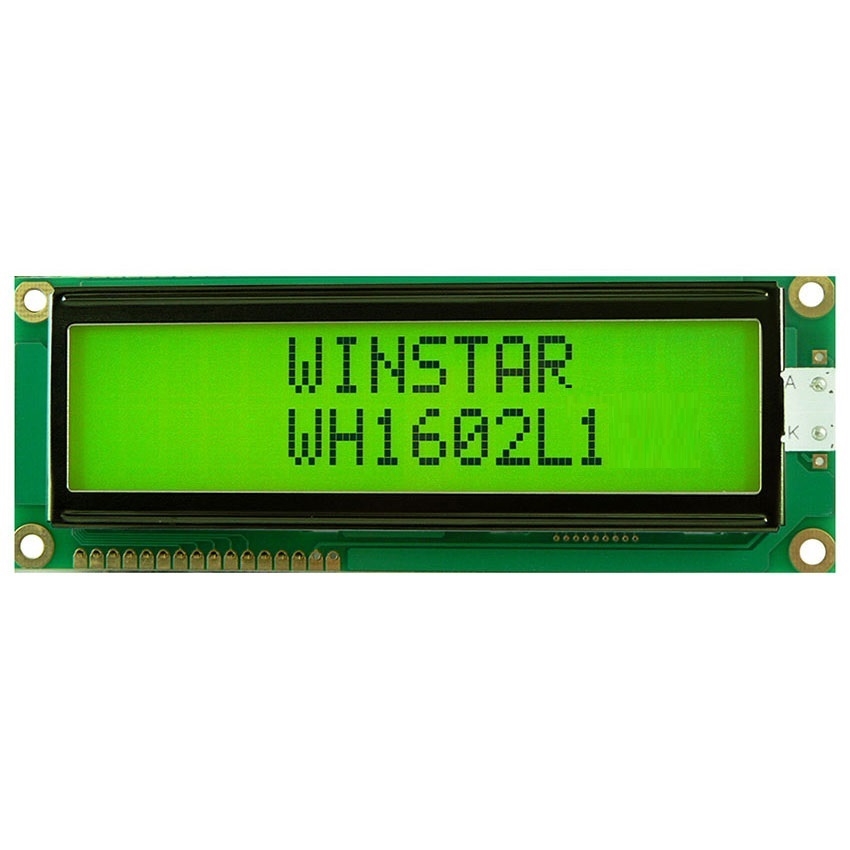

    Character LCD 3.8" 16x2, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, Font Eng/Cyr, 6 O'clock
    Brand: Winstar
    Cod.: WH1602L1-YYH-CT#

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €14,10
    €12,70
    €11,90
    €11,60

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €14,10 IVA esclusa
    i h

    DESCRIPTION

    It is a 16x2 Character Dot Matrix LCD Module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel.  The WH1602L1 model is negative voltage optional as well. This display is also available in SPI and I2C interface by using RW1063 controller IC. WH1602L1 is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white LED. The LEDs can be driven by PIN1, PIN2, PIN15, PIN16 or A and K.

    There are different interface options for WH1602L1 series, details as below:
    ►WH1602L1 : 6800 interface (ST7066 IC)
    ►WH1602L2 : SPI interface (RW1063 IC)
    ►WH1602L3 : I2C interface (RW1063 IC)


    DRAWING





    SPECIFICATIONS

    Interface Pin Function

    Pin No.SymbolDescription
    1 VSS Ground
    2 VDD Power supply for logic
    3 VO Contrast Adjustment
    4 RS Data/ Instruction select signal
    5 R/W Read/Write select signal
    6 E Enable signal
    7~14 DB0~DB7 Data bus line
    15 A Power supply for B/L +
    16 K Power supply for B/L -



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 122.0 x 44.0 mm
    Viewing Area 99.0 x 24.0 mm
    Mounting Hole 115.0 x 37.0 mm
    Character Size 4.80 x 8.56 mm



    Electrical Characteristics

    ItemSymbolStandard Value
    typ.
    Unit
    Input Voltage VDD 3/5 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    VDD-VO 4.20 V



    Display Character Address Code

    Display Position12345678910111213141516
    DD RAM Address 00 01                           0F
    DD RAM Address 40 41                           4F


    Specifiche di prodotto
    Size 3.8"
    Resolution 16x2
    Active Area (mm) 94.84x20.00
    Dot Size 0.92x1.10
    B/L color, LCD type B/L yellow/green, STN yellow/green pos
    Power supply 5V
    Display Interface 6800
    Display IC ST7066
    Constructive Structure COB
    View Angle 6H
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 16
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
