WH1604A-TGH-ET#

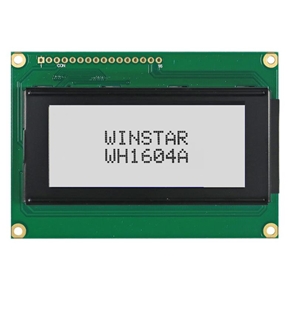

Character LCD 2.4'' 16x4, B/L white, STN gray pos, Transflective, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock

DESCRIPTION



Winstar's WH1604A is a character LCD 16x4 display which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel, 5V power supply.  These LCD display 16x4 modules are also available in SPI and I2C interface by using RW1063 controller IC. The WH1604A display LCD 16x4 series is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white LEDs.

There are three interface options for WH1604A series, details as below:
►WH1604A : 6800 interface (ST7066 IC)
►WH1604A1: SPI interface (RW1063 IC)
►WH1604A2: I2C interface (RW1063 IC)



DRAWING



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 87.0 × 60.0 mm
Viewing Area 62.0 × 26.0 mm
Mounting Hole 82.0 × 55.0 mm
Character Size 2.95 × 4.75 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.35 V



Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01                           0F
DD RAM Address 40 41                           4F
DD RAM Address 10 11                           1F
DD RAM Address 50 51                           5F


SKU: WH1604A-TGH-ET#
Brand: Winstar
Disponibile: No
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€12,80
€9,40
€9,10
€8,80

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€12,80 IVA esclusa

DESCRIPTION



Winstar's WH1604A is a character LCD 16x4 display which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel, 5V power supply.  These LCD display 16x4 modules are also available in SPI and I2C interface by using RW1063 controller IC. The WH1604A display LCD 16x4 series is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white LEDs.

There are three interface options for WH1604A series, details as below:
►WH1604A : 6800 interface (ST7066 IC)
►WH1604A1: SPI interface (RW1063 IC)
►WH1604A2: I2C interface (RW1063 IC)



DRAWING



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 87.0 × 60.0 mm
Viewing Area 62.0 × 26.0 mm
Mounting Hole 82.0 × 55.0 mm
Character Size 2.95 × 4.75 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.35 V



Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01                           0F
DD RAM Address 40 41                           4F
DD RAM Address 10 11                           1F
DD RAM Address 50 51                           5F


Specifiche di prodotto
Brand Winstar
Size 2.4"
Risoluzione 16x4
Area Attiva (mm) 56.20x20.80
Dot Size 0.55x0.55
Colore B/L, Tipo LCD B/L white, STN gray pos
Alimentazione 5V
Interfaccia Display 6800
Display IC ST7066
Struttura Costruttiva COB
Angolo Visione 6H
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 16
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
Download
