DESCRIPTION
Winstar WH2004A is a Character LCD 20x4 display which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel. These 20x4 LCD modules are also available in SPI and I2C interface by using RW1063 controller IC. WH2004A is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white, and RGB LEDs. There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.
There are different interface options for WH2004A series, details as below:
►WH2004A : 6800 interface (ST7066 IC)
►WH2004A1 : SPI interface (RW1063 IC)
►WH2004A2 : I2C interface (RW1063 IC)

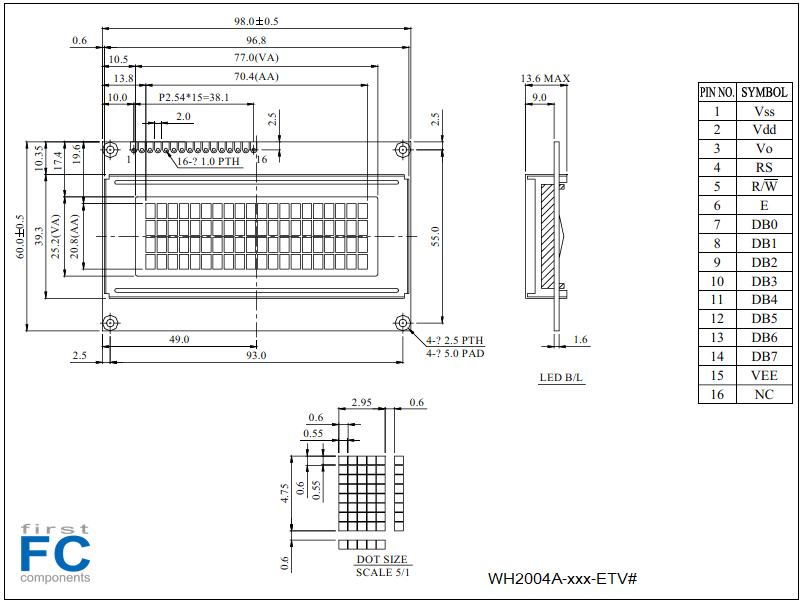

DRAWING
SPECIFICATIONS
Mechanical Data
| Item | Standard Value | Unit |
| Module Dimension |
98.0 × 60.0 |
mm |
| Viewing Area |
77.0 × 25.2 |
mm |
| Mounting Hole |
93.0 × 55.0 |
mm |
| Character Size |
2.95 × 4.75 |
mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. | Unit |
| Input Voltage |
VDD |
3 |
V |
Display Character Address Code
| Display Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | --- | --- | 20 |
| DD RAM Address |
00 |
01 |
02 |
|
|
|
|
|
|
|
|
|
|
|
|
13 |
| DD RAM Address |
40 |
41 |
42 |
|
|
|
|
|
|
|
|
|
|
|
|
53 |
| DD RAM Address |
14 |
15 |
16 |
|
|
|
|
|
|
|
|
|
|
|
|
27 |
| DD RAM Address |
54 |
35 |
56 |
|
|
|
|
|
|
|
|
|
|
|
|
67 |
Specifiche di prodotto
|
Size
|
2.9" |
|
Resolution
|
20x4 |
|
Active Area (mm)
|
70.40x20.80 |
|
Dot Size
|
0.55x0.55 |
|
B/L color, LCD type
|
B/L yellow/green, STN yellow/green pos |
|
Power supply
|
3V |
|
Display Interface
|
6800 |
|
Display IC
|
ST7066 |
|
Constructive Structure
|
COB |
|
View Angle
|
6H |
|
O. Temperature (°C)
|
-20~70 |
|
Data Connection
|
Soldering PAD |
|
Pin Nr.
|
16 |
|
Pin Pitch
|
2.54mm |
|
Preferred - Not Preferred
|
Preferred |
