WO12864-85HU#FC

Graphic LCD 2.2'' 128x64, B/L white, FSTN white pos, Transflective, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock (IC ST7565P)

DESCRIPTION

Winstar released a new COG mono graphic LCD module which is made of 128x64 dot matrix format. This COG module is built in with ST7565P IC, it supports 8-bit 6800, 8-bit 8080 parallel and 4-wire serial SPI interface. This module has the same outline dimension, AA size, VA size as WX12864U2. The power supply (VDD) of WO12864-xxxU#FC is 3.3V, VOP 8.5V which are the same as WX12864U2. It is an alternative item to replace WX12864U2 which TAB IC had been phased out: the outline dimension, AA size, VA size, interface, pin assignment, main electrical characteristics are all the same.

This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

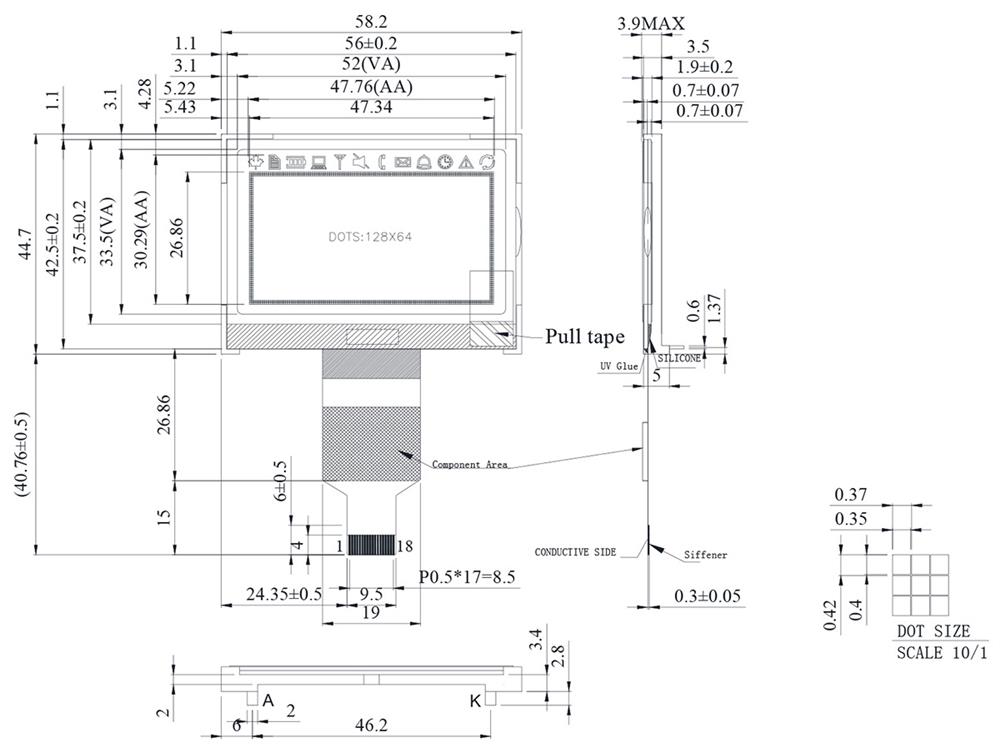

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolI/ODescription
1 VDD ­_ Power supply pin for logic.
2 VSS _ Ground pin, connected to 0V
3 /CS1 I Chip select input pin. Interface access is enabled when CS1B is "L" and CB2 is "H" . When chip is on-active (CS1B="H" or CS2="L"), D[7:0] pins are high impedance.
4 CS2
5 /RES I Hardware reset input pin. When RSTB is "L", internal initialization is executed and the internal registers will be initialized.
6 A0 I It determines whether the access is related to data or command.
A0=“H”: Indicates that signals on D[7:0] are display data.
A0=“L”: Indicates that signals on D[7:0] are command.
7 R/W I Read/Write execution control pin. When PSB is "H",
C86MPU TypeRWRDescription
H 6800 series R/W Read/Write control input pin.
R/W="H": read
R/W="L": write
L 8080 series /WR Write enable input pin.
Signals on D[7:0] will be latched at the rising edge of /WR signal.

RWR is not used in serial interface and should fix to "H" by VDD.
8 E I Read/Write execution control pin. When PSB is "H",
C86MPU TypeERDDescription
H 6800 series E Read/Write control input pin.
R/W="H": When E is "H", D[7:0] are in output mode.
R/W="L": Signals on D[7:0] are latched at the falling edge of E signal
L 8080 series /RD Read enable input pin.
When /RD is "L", D[7:0] are in output mode.

ERD is not used in serial interface and should fix to "H" by VDD.
9-16 D0-D7 I/O Data bus line
17 C86 I C86 selects the microprocessor type in parallel interface mode.
PSBC86Selected Interface
"H" "H" Parallel 6800 Series MPU Interface
"H" "L" Parallel 8080 Series MPU Interface
"L" "X" Serial 4-Line SPI Interface

Please refer to “APPLICATION NOTES” and “Microprocessor Interface” (Section 6) for detailed connection of the selected interface.
18 P/S I PSB selects the interface type: Serial or Parallel.



General Specification

ItemDimensionUnit
Number of dots 128 × 64
Module dimension 58.2 × 44.7 × 3.9(MAX) mm
View area 52.0 × 33.5 mm
Active area 47.76 × 30.29 mm
Dot size 0.40 × 0.35 mm
Dot pitch 0.42 × 0.37 mm
Duty 1/64
Backlight Type LED
IC ST7565P



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80
Power Supply Voltage VDD -0.3 3.6 V
Power supply voltage (VDD standard) V0, VOUT -0.3 14.5 V
Power supply voltage (VDD standard) V1, V2, V3, V4 -0.3 V0+0.3 V



Electrical Characteristics

ItemSymbolConditionMin.Typ.Max.Unit
Supply Voltage For Logic VDD-VSS 3.0 3.3 V
Supply Voltage For LCD VOP Ta=-20℃
Ta=25℃
Ta=70℃

8.3

8.5

8.7
V
V
V
Input High Volt. VIH 0.8VDD VDD V
Input Low Volt. VIL VSS 0.2VDD V
Output High Volt. VOH 0.8VDD VDD V
Output Low Volt. VOL VDD 0.2VDD V
Supply Current IDD VDD=3.3V 1 2 mA




SKU: WO12864-85HU#FC
Brand: Winstar
Disponibile: No
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€12,60
€9,20
€8,90
€8,60

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€12,60 IVA esclusa

DESCRIPTION

Winstar released a new COG mono graphic LCD module which is made of 128x64 dot matrix format. This COG module is built in with ST7565P IC, it supports 8-bit 6800, 8-bit 8080 parallel and 4-wire serial SPI interface. This module has the same outline dimension, AA size, VA size as WX12864U2. The power supply (VDD) of WO12864-xxxU#FC is 3.3V, VOP 8.5V which are the same as WX12864U2. It is an alternative item to replace WX12864U2 which TAB IC had been phased out: the outline dimension, AA size, VA size, interface, pin assignment, main electrical characteristics are all the same.

This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolI/ODescription
1 VDD ­_ Power supply pin for logic.
2 VSS _ Ground pin, connected to 0V
3 /CS1 I Chip select input pin. Interface access is enabled when CS1B is "L" and CB2 is "H" . When chip is on-active (CS1B="H" or CS2="L"), D[7:0] pins are high impedance.
4 CS2
5 /RES I Hardware reset input pin. When RSTB is "L", internal initialization is executed and the internal registers will be initialized.
6 A0 I It determines whether the access is related to data or command.
A0=“H”: Indicates that signals on D[7:0] are display data.
A0=“L”: Indicates that signals on D[7:0] are command.
7 R/W I Read/Write execution control pin. When PSB is "H",
C86MPU TypeRWRDescription
H 6800 series R/W Read/Write control input pin.
R/W="H": read
R/W="L": write
L 8080 series /WR Write enable input pin.
Signals on D[7:0] will be latched at the rising edge of /WR signal.

RWR is not used in serial interface and should fix to "H" by VDD.
8 E I Read/Write execution control pin. When PSB is "H",
C86MPU TypeERDDescription
H 6800 series E Read/Write control input pin.
R/W="H": When E is "H", D[7:0] are in output mode.
R/W="L": Signals on D[7:0] are latched at the falling edge of E signal
L 8080 series /RD Read enable input pin.
When /RD is "L", D[7:0] are in output mode.

ERD is not used in serial interface and should fix to "H" by VDD.
9-16 D0-D7 I/O Data bus line
17 C86 I C86 selects the microprocessor type in parallel interface mode.
PSBC86Selected Interface
"H" "H" Parallel 6800 Series MPU Interface
"H" "L" Parallel 8080 Series MPU Interface
"L" "X" Serial 4-Line SPI Interface

Please refer to “APPLICATION NOTES” and “Microprocessor Interface” (Section 6) for detailed connection of the selected interface.
18 P/S I PSB selects the interface type: Serial or Parallel.



General Specification

ItemDimensionUnit
Number of dots 128 × 64
Module dimension 58.2 × 44.7 × 3.9(MAX) mm
View area 52.0 × 33.5 mm
Active area 47.76 × 30.29 mm
Dot size 0.40 × 0.35 mm
Dot pitch 0.42 × 0.37 mm
Duty 1/64
Backlight Type LED
IC ST7565P



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80
Power Supply Voltage VDD -0.3 3.6 V
Power supply voltage (VDD standard) V0, VOUT -0.3 14.5 V
Power supply voltage (VDD standard) V1, V2, V3, V4 -0.3 V0+0.3 V



Electrical Characteristics

ItemSymbolConditionMin.Typ.Max.Unit
Supply Voltage For Logic VDD-VSS 3.0 3.3 V
Supply Voltage For LCD VOP Ta=-20℃
Ta=25℃
Ta=70℃

8.3

8.5

8.7
V
V
V
Input High Volt. VIH 0.8VDD VDD V
Input Low Volt. VIL VSS 0.2VDD V
Output High Volt. VOH 0.8VDD VDD V
Output Low Volt. VOL VDD 0.2VDD V
Supply Current IDD VDD=3.3V 1 2 mA




Specifiche di prodotto
Brand Winstar
Size 2.2"
Risoluzione 128x64
Area Attiva (mm) 47.76x30.29
Dot Size 0.40x0.35
Colore B/L, Tipo LCD B/L white, FSTN white pos
Alimentazione 3.3V
Interfaccia Display 6800/8080/SPI
Display IC ST7565P
Struttura Costruttiva COG
Angolo Visione 6H
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC per ZIF Connector
Nr. Pin 18
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
