    Character LCD 1.9" 16x2, B/L white, STN blue neg, Transmissive, COG, 3V/5V, Interface I2C, 6 O'clock (IC ST7032i)
    Brand: Winstar
    Cod.: WO1602AT-84IH#FC
    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €8,80
    €7,90
    €7,40
    €7,30

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €8,80 IVA esclusa
    i h

    DESCRIPTION

    16 characters x 2 lines LCD COG Display. This Character COG display is built in with ST7032I controller IC and its interface is I2C. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.  This LCD COG display is very suitable for the applications that demand more compact package displays.

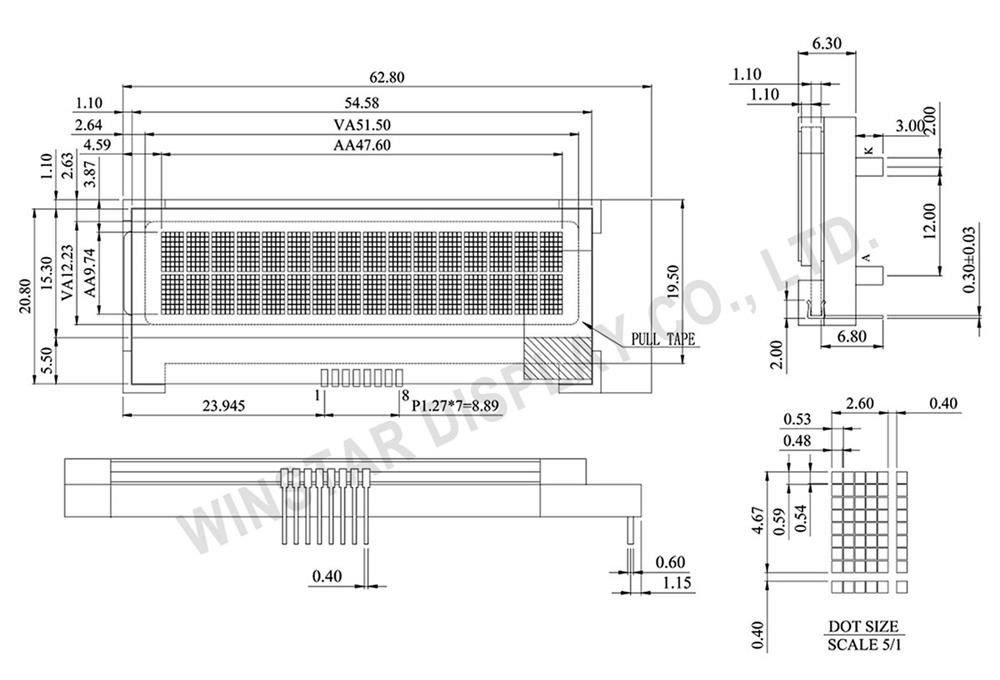

    DRAWING

    Winstar WO1602H - LCD COG Display, LCD COG, I2C 16x2 LCD

    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 Vout Positive Voltage output
    2 CAP1N DC/DC voltage converter.
    3 CAP1P DC/DC voltage converter.
    4 VDD Power supply for logic
    5 VSS Ground
    6 SDA Serial input data
    7 SCL Serial clock input
    8 RST Controller reset signal, Active Low



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 62.8 × 23.0 mm
    Viewing Area 51.5 × 12.23 mm
    Dot Pitch 0.53 × 0.59 mm
    Dot Size 0.48 × 0.54 mm



    Electrical Characteristics

    ItemSymbolStandard value
    typ.
    Unit
    Input Voltage VDD 3/5 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    Vo-Vss 4.50 V


    Specifiche di prodotto
    Size 1.9"
    Resolution 16x2
    Active Area (mm) 47.60x9.74
    Dot Size 0.48x0.54
    B/L color, LCD type B/L white, STN blue neg
    Power supply 3V
    Display Interface I2C
    Display IC ST7032i
    Constructive Structure COG
    View Angle 6H
    Frame No
    O. Temperature (°C) -20~70
    Data Connection Pin Strip
    Pin Nr. 8
    Pin Pitch 1.27mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
