    WO24064-85HB#FC

    Graphic LCD 5.2" 240x64, B/L white, FSTN white pos, Transflective, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock, Frame
    Brand: Winstar
    Cod.: WO24064-85HB#FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €23,20
    €20,90
    €19,60

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €23,20 IVA esclusa
    i h

    DESCRIPTION

    The Winstar Display COG graphic standard display LCD 240x64 has outline dimension 142.5 x 51.7 mm and AA size 127.17x33.89mm. This display is built in with one ST7586S-G4 driver IC which supports 6800/8080, 4 Line SPI or 3 Line SPI (optional) interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.

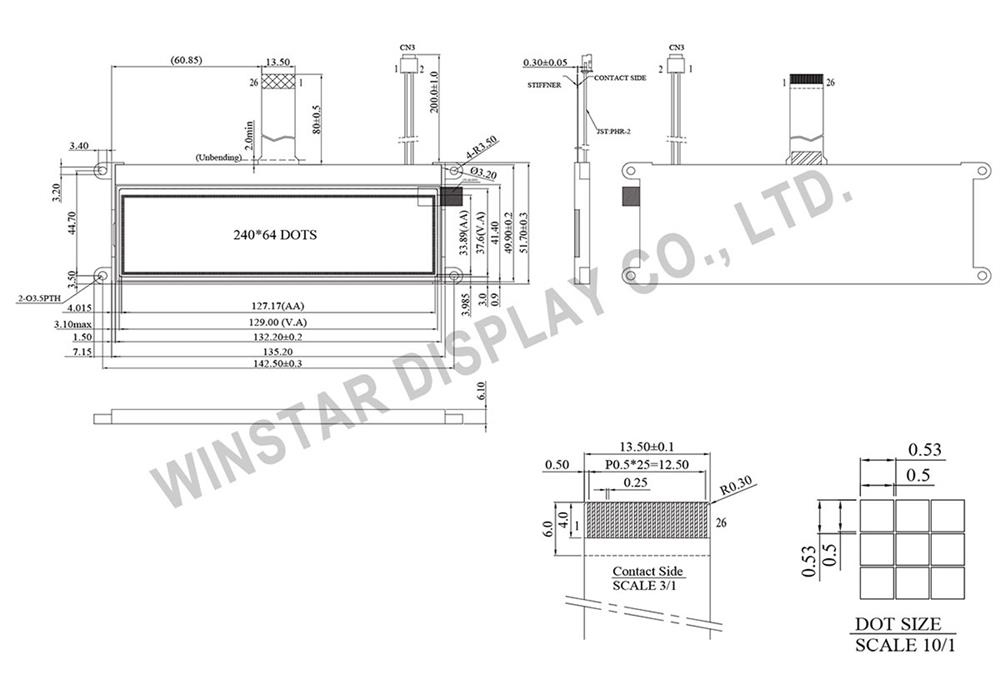

    DRAWING

    COG Display LCD 240x64 - Winstar WO24064B

    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 VG VG is the power of SEG-drivers.
    2 XV0 Negative operating voltage of COM-drivers.
    3 V0 Positive operating voltage for Vop generator.
    4 VM VM is the non-select voltage level of COM-drivers.
    5 VDDA Analog power for internal booster.
    6 VSS Ground
    7 VD1 VD1 is the power source of digital circuits.
    8 VDDI Power of interface I/O circuit.
    9 CSB Chip select input pins
    10 IF3 These pins select interface operation mode.
    "110" : 80 series。 "100" : 68 series。 "011" : SPI-4 。"010" : SPI-3
    11 IF2
    12 IF1
    13 RSTB Controller reset signal, Active Low
    14 /RD(E) 8080 family: Read signal, 6800 family: Enable clock
    15~22 D7~Do Data bus line
    23 NC No connection
    24 /WR(R/W) 8080 family: Write signal, 6800 family: Read/Write signal
    25 A0(SCL) Data/ Instruction select signal / In serial mode used as SCL (serial-clock)
    26 VSS Ground



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 142.5 × 51.7 mm
    Viewing Area 129.0 × 37.6 mm
    Mounting Hole 142.5 × 44.7 mm
    Dot Pitch 0.53 × 0.53 mm
    Dot Size 0.50 × 0.50 mm



    Electrical Characteristics

    ItemSymbolStandard value
    typ.
    Unit
    Input Voltage VDD 3.3 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    Vo-Vss 10.0 V


    Specifiche di prodotto
    Size 5.2"
    Resolution 240x64
    Active Area (mm) 127.17x33.89
    Dot Size 0.50x0.50
    B/L color, LCD type B/L white, FSTN white pos
    Power supply 3.3V
    Display Interface 6800/8080/SPI
    Display IC ST7586S-G4
    Constructive Structure COG
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 26
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
