CSHA101-1502A001R1AB-30

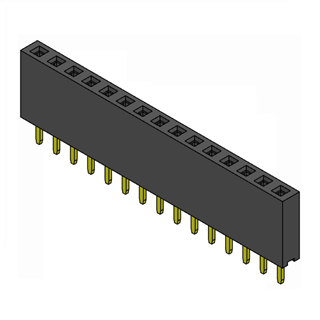

Female Header - Straight Contact, Single Row, 15 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 4-6mm)

Specifications

Current Rating： 1Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 300VAC
Contact Resistance： 20 mΩMax
Operating Temperature： -40ºC to +105ºC



Material

Contact Material：Phosphor Bronze
Insulation Material：High Temperature Thermoplastic, UL 94V-0 LCP



Dimensions

SKU: CSHA101-1502A001R1AB-30
Brand: Greenconn
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
50+
100+
Price
€0.70
€0.59
€0.56
€0.51
€0.47
€0.39

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€0.70 excl tax

Specifications

Current Rating： 1Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 300VAC
Contact Resistance： 20 mΩMax
Operating Temperature： -40ºC to +105ºC



Material

Contact Material：Phosphor Bronze
Insulation Material：High Temperature Thermoplastic, UL 94V-0 LCP



Dimensions

Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*15
Pin Pitch 2.54mm
Contact Direction DIP
Download
Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*15
Pin Pitch 2.54mm
Contact Direction DIP
