GPEB101-1502A033C1BA-Q5

Pin Header - R/A Contact, Single Row, 15 Pins, Pitch 1.27mm, Gold Plated (Mating Contact Length: 3,75mm)

Specifications

Current Rating： 1.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 300VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC



Materials

Contact Material：Brass
Insulation Material：High Temperature Thermoplastic, UL 94V-0 LCP

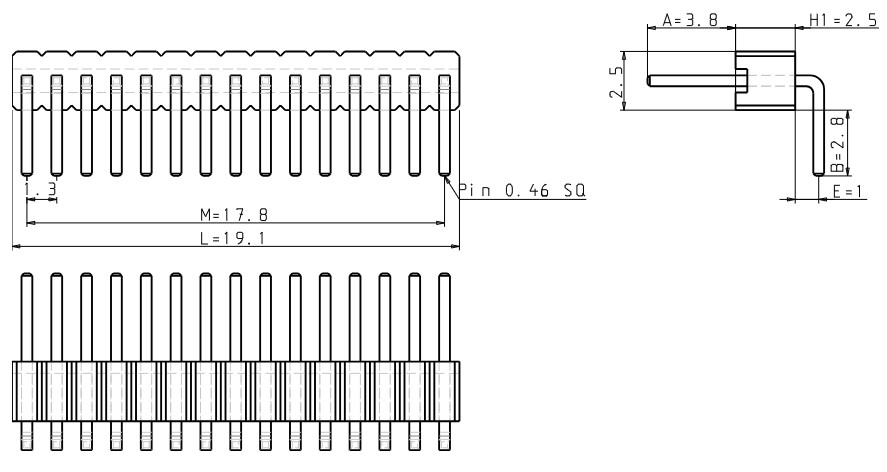

Dimensions

SKU: GPEB101-1502A033C1BA-Q5
Brand: Greenconn
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
50+
100+
Price
€0.61
€0.51
€0.49
€0.45
€0.41
€0.34

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€0.61 excl tax

Specifications

Current Rating： 1.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 300VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC



Materials

Contact Material：Brass
Insulation Material：High Temperature Thermoplastic, UL 94V-0 LCP



Dimensions

Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*15
Pin Pitch 1.27mm
Contact Direction R/A
Download
Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*15
Pin Pitch 1.27mm
Contact Direction R/A
