GPHA101-1602A001R1BA-30

Pin Header - Straight Contact, Single Row, 16 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 6mm)

Specifications

Current Rating：3.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 600VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC



Materials

Contact Material：Brass, Phosphor Bronze
Insulation Material：PBT, Nylon, LCP, UL 94V-0

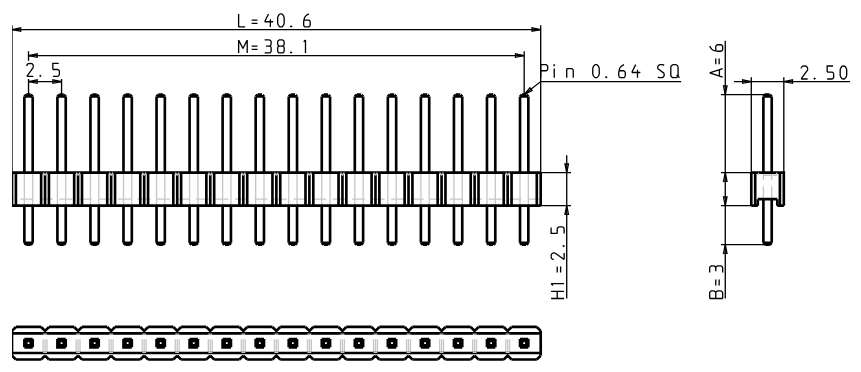

Dimensions

SKU: GPHA101-1602A001R1BA-30
Brand: Greenconn
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
50+
100+
Price
€0.47
€0.40
€0.39
€0.35
€0.32
€0.27

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€0.47 excl tax

Specifications

Current Rating：3.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 600VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC



Materials

Contact Material：Brass, Phosphor Bronze
Insulation Material：PBT, Nylon, LCP, UL 94V-0



Dimensions

Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*16
Pin Pitch 2.54mm
Contact Direction DIP
Download
Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*16
Pin Pitch 2.54mm
Contact Direction DIP
