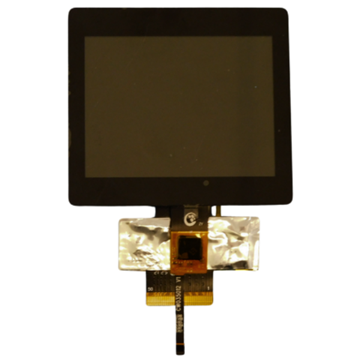

HNA320240T028-ZHC

TFT 3.5" 320x240, Smart UART, 800cd/m², Wide View Angle (IPS), Capacitive Touch Panel (GG), SD Card Slot, USB port

CONCEPT



POWERTIP GRAPHIC EDITOR

  • Design tool for individual GUIs
  • Fast development and easy use
  • Open source image database
  • Run designed GUIs on Powertip integrated display
  • Generate source code for PC and Powertip integrated display
  • Get product to the market faster
  • TRY OUT the latest version available



3.5" TFT PANEL

MINI BOARD



MINI

P05D00063-01

MCU

N32926U1DN

ARCH.

240 MHz, ARM926EJ-S

RAM

64MB DDR2

FLASH

(4GB eMMC optional)

IO PORT

mSD, UART, 10 x GPIO

Display Resolution

Up to 1024x600

Display Interface

Parallel TTL RGB

Board TYPE

MINI
SKU: HNA320240T028-ZHC
Brand: Powertip
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€73.70
€71.20
€67.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€73.70 excl tax

CONCEPT



POWERTIP GRAPHIC EDITOR

  • Design tool for individual GUIs
  • Fast development and easy use
  • Open source image database
  • Run designed GUIs on Powertip integrated display
  • Generate source code for PC and Powertip integrated display
  • Get product to the market faster
  • TRY OUT the latest version available



3.5" TFT PANEL

MINI BOARD



MINI

P05D00063-01

MCU

N32926U1DN

ARCH.

240 MHz, ARM926EJ-S

RAM

64MB DDR2

FLASH

(4GB eMMC optional)

IO PORT

mSD, UART, 10 x GPIO

Display Resolution

Up to 1024x600

Display Interface

Parallel TTL RGB

Board TYPE

MINI
Products specifications
Brand Powertip
Size 3.5"
Resolution 320x240
Viewing Area (mm) 71.08x53.56
Active Area (mm) 70.08x52.56
Color Full Color
Power supply 5V
Display Interface UART // USB2.0 // MicroSD
Display IC N32926U1DN
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Powertip
Size 3.5"
Resolution 320x240
Viewing Area (mm) 71.08x53.56
Active Area (mm) 70.08x52.56
Color Full Color
Power supply 5V
Display Interface UART // USB2.0 // MicroSD
Display IC N32926U1DN
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
