NG12232BN002WS

Graphic LCD 2.2'' 122x32, B/L white, STN gray pos, Transflective, COB, 3V, Interface 6800, 6 O'clock, VNEG, IC AiP31520

DESCRIPTION

This module is a monochrome 122x32 graphic 2.2” LCD display module. This 122x32 graphic LCD display is built in with SBN1661G controller IC which supports 6800 8-bit parallel interface. This module is 5V power supply, also negative voltage 3V optional. Please note WG12232O is white LED backlight available only. If you need other color LED, please contact with us.

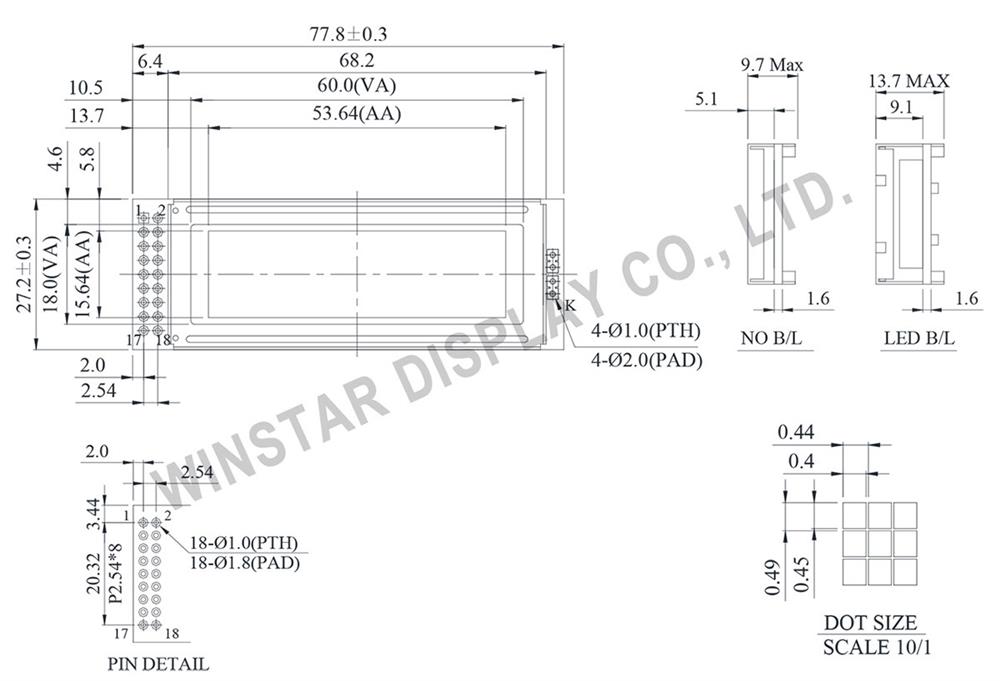

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_SS	Ground
2	V_dd	Power supply for logic
3	V_O	Contrast Adjustment
4	A0	Data/ Instruction select signal
5	E1	Enable signal
6	E2	Enable signal
7	NC/CL	No connection / External clock 2KHz
8	NC/E	No connection / Enable signal
9	R/W	Read/Write select signal
10~17	DB0~DB7	Data bus line
18	/RST	Controller reset signal, Active Low

Mechanical Data

Item	Standard Value	Unit
Module Dimension	77.8 × 27.2	mm
Viewing Area	60.0 × 18.0	mm
Dot Pitch	0.44 × 0.49	mm
Dot Size	0.40 × 0.45	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	4.45	V

SKU: NG12232BN002WS

Brand: Next Vision Display

Available: No

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€14.80

€10.90

€10.50

€10.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€14.80 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_SS	Ground
2	V_dd	Power supply for logic
3	V_O	Contrast Adjustment
4	A0	Data/ Instruction select signal
5	E1	Enable signal
6	E2	Enable signal
7	NC/CL	No connection / External clock 2KHz
8	NC/E	No connection / Enable signal
9	R/W	Read/Write select signal
10~17	DB0~DB7	Data bus line
18	/RST	Controller reset signal, Active Low

Mechanical Data

Item	Standard Value	Unit
Module Dimension	77.8 × 27.2	mm
Viewing Area	60.0 × 18.0	mm
Dot Pitch	0.44 × 0.49	mm
Dot Size	0.40 × 0.45	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	4.45	V

Products specifications

Brand	Next Vision Display
Size	2.2"
Resolution	122x32
Active Area (mm)	53.64x15.64
Dot Size	0.40x0.45
B/L color, LCD type	B/L white, STN gray pos
Power supply	3V
Display Interface	6800
Display IC	AiP31520
Constructive Structure	COB
View Angle	6H
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	18
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred

Download

Your name

Your email

Enquiry

Products specifications

Brand	Next Vision Display
Size	2.2"
Resolution	122x32
Active Area (mm)	53.64x15.64
Dot Size	0.40x0.45
B/L color, LCD type	B/L white, STN gray pos
Power supply	3V
Display Interface	6800
Display IC	AiP31520
Constructive Structure	COB
View Angle	6H
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	18
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
