NG12864BN001WS
NG12864BN001WS
Graphic LCD 2.4'' 128x64, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, VNEG
DESCRIPTION
This is a mono 128x64 graphic LCD display, diagonal size 2.4 inch. This model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.
This 128x64 LCD module is 5V power supply. This 12864 Graphic LCD module is available for without backlight or with LED backlight options. WG12864B is available in various LCD panel colors including gray, yellow/green and blue LCD options. This model graphic LCD display can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

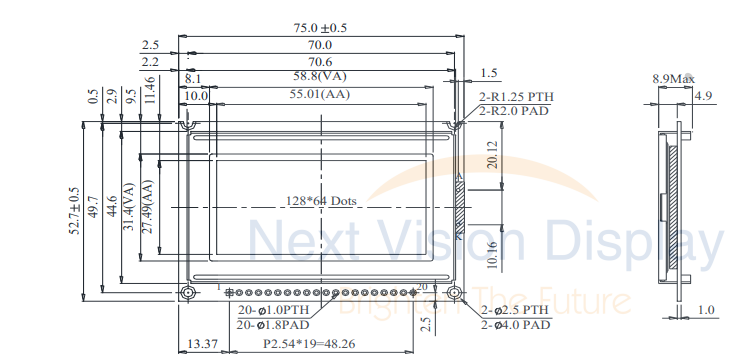

DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Description
1
V
DD
Power supply for logic
2
V
SS
Ground
3
V
O
Contrast Adjustment
4~11
DB0~DB7
Data bus line
12
CS1
Select Column 1~ Column 64
13
CS2
Select Column 65~ Column 128
14
/RST
Controller reset signal, Active Low
15
R/W
Read/Write select signal
16
D/I
Data/ Instruction select signal
17
E
Enable signal
18
V
EE
Negative Voltage Output
19
A
Power supply for B/L +
20
K
Power supply for B/L -
Mechanical Data
Item
Standard Value
Unit
Module Dimension
75.0 × 52.7
mm
Viewing Area
58.8 × 31.4
mm
Mounting Hole
70.0 × 49.7
mm
Dot Pitch
0.43 × 0.43
mm
Dot Size
0.40 × 0.40
mm
Electrical Characteristics
Item
Symbol
Standard Value
typ.
Unit
Input Voltage
VDD
5.0
V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO
8.0
V
SKU:
NG12864BN001WS
Brand:
Next Vision Display
Be the first to review this product
Accessory Kit
Display Connector
-- Check specs. in Download section --
GPHA101-2002A001R1BA-30 [+€0.49]
CSHA101-2002A001R1AB-30 [+€0.74]
GPHB101-2002A044A1BA-30 [+€0.72]
CSHA106-2002A001R1AB-30 [+€0.93]
Overview
Specifications
Download
Contact Us
DESCRIPTION
This is a mono 128x64 graphic LCD display, diagonal size 2.4 inch. This model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.
This 128x64 LCD module is 5V power supply. This 12864 Graphic LCD module is available for without backlight or with LED backlight options. WG12864B is available in various LCD panel colors including gray, yellow/green and blue LCD options. This model graphic LCD display can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Description
1
V
DD
Power supply for logic
2
V
SS
Ground
3
V
O
Contrast Adjustment
4~11
DB0~DB7
Data bus line
12
CS1
Select Column 1~ Column 64
13
CS2
Select Column 65~ Column 128
14
/RST
Controller reset signal, Active Low
15
R/W
Read/Write select signal
16
D/I
Data/ Instruction select signal
17
E
Enable signal
18
V
EE
Negative Voltage Output
19
A
Power supply for B/L +
20
K
Power supply for B/L -
Mechanical Data
Item
Standard Value
Unit
Module Dimension
75.0 × 52.7
mm
Viewing Area
58.8 × 31.4
mm
Mounting Hole
70.0 × 49.7
mm
Dot Pitch
0.43 × 0.43
mm
Dot Size
0.40 × 0.40
mm
Electrical Characteristics
Item
Symbol
Standard Value
typ.
Unit
Input Voltage
VDD
5.0
V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO
8.0
V
Products specifications
Brand
Next Vision Display
Size
2.4"
Resolution
128x64
Active Area (mm)
55.01x27.49
Dot Size
0.40x0.40
B/L color, LCD type
B/L yellow/green, STN yellow/green pos
Power supply
5V
Display Interface
6800
Display IC
NT7107, NT7108
Constructive Structure
COB
View Angle
6H
Frame
Yes
Touch Panel
No touch
O. Temperature (°C)
-20~70
Display Connection
Soldering PAD
Pin Nr.
20
Pin Pitch
2.54mm
Preferred - Not Preferred
Preferred
Download
Log in
or
Register
to downloads PDF.
Your name
Your email
Enquiry
Products specifications
Brand
Next Vision Display
Size
2.4"
Resolution
128x64
Active Area (mm)
55.01x27.49
Dot Size
0.40x0.40
B/L color, LCD type
B/L yellow/green, STN yellow/green pos
Power supply
5V
Display Interface
6800
Display IC
NT7107, NT7108
Constructive Structure
COB
View Angle
6H
Frame
Yes
Touch Panel
No touch
O. Temperature (°C)
-20~70
Display Connection
Soldering PAD
Pin Nr.
20
Pin Pitch
2.54mm
Preferred - Not Preferred
Preferred
