NG12864GN001WS

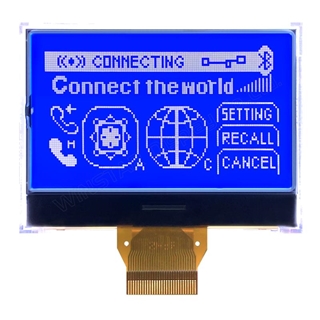

Picture of NG12864GN001WS Picture of NG12864GN001WS
Graphic LCD 2.2'' 128x64, B/L white, STN blue neg, Transmissive, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock (IC ST7565P)



DESCRIPTION

2.2 inch 128x64 COG monochrome Graphic LCD module. This LCD module is built in with ST7565P controller or equivalent IC.  It supports 6800 8-bit, 8080 8-bit parallel and SPI interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.  This LCD COG 128x64 display is very suitable for the applications that demand more compact package displays.

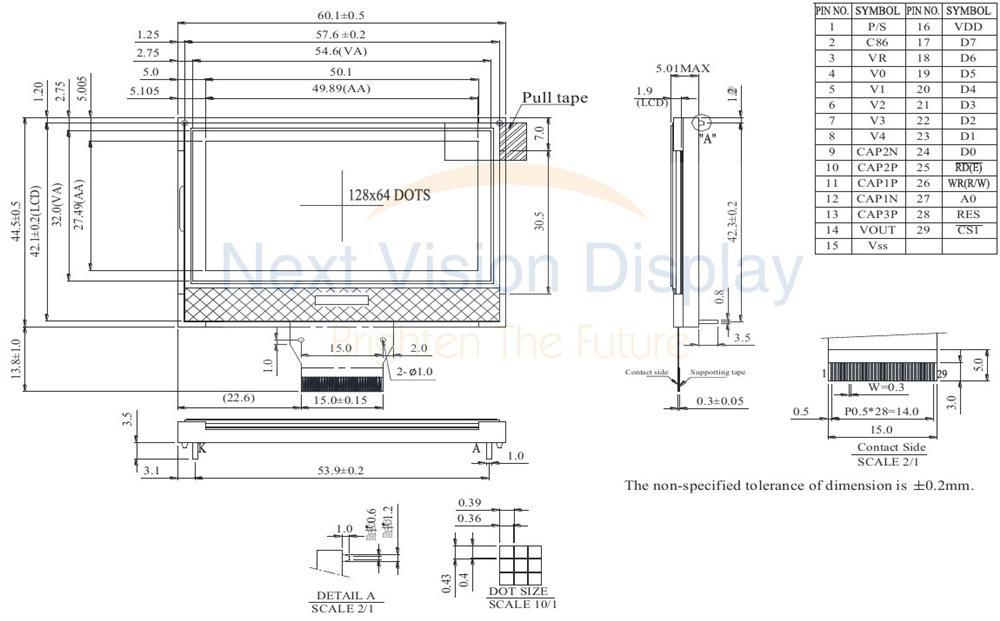

DRAWING

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 P/S Selects the interface type: Serial or Parallel.
2 C86 Interface selection 6800/8080
3 VR LCD Contrast Adjustment when IRS = “L”
4~8 V0~V4 Bias voltage levels for LCD driving
9 CAP2N DC/DC voltage converter.
10 CAP2P DC/DC voltage converter.
11 CAP1P DC/DC voltage converter.
12 CAP1N DC/DC voltage converter.
13 CAP3P DC/DC voltage converter.
14 Vout Positive Voltage output
15 VSS Ground
16 VDD Power supply for logic
17~24 D7~ D0 Data bus line
25 /RD(E) 8080 family: Read signal, 6800 family: Enable clock
26 /WR(R/W) 8080 family: Write signal, 6800 family: Read/Write signal
27 A0 Data/ Instruction select signal
28 /RES Controller reset signal, Active Low
29 /CS1 This is the chip select signal.



Mechanical Data

ItemStandard ValueUnit
Module Dimension 60.1 × 44.5 mm
Viewing Area 54.6 × 32.0 mm
Dot Pitch 0.39 × 0.43 mm
Dot Size 0.36 × 0.40 mm



Electrical Characteristics

ItemSymbolStandard value
typ.		Unit
Input Voltage VDD 3.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 Vo-Vss 9.50 V
SKU: NG12864GN001WS
Brand: Next Vision Display
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€12.30
€9.00
€8.70
€8.40

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€12.30 excl tax



DESCRIPTION

2.2 inch 128x64 COG monochrome Graphic LCD module. This LCD module is built in with ST7565P controller or equivalent IC.  It supports 6800 8-bit, 8080 8-bit parallel and SPI interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.  This LCD COG 128x64 display is very suitable for the applications that demand more compact package displays.


DRAWING

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 P/S Selects the interface type: Serial or Parallel.
2 C86 Interface selection 6800/8080
3 VR LCD Contrast Adjustment when IRS = “L”
4~8 V0~V4 Bias voltage levels for LCD driving
9 CAP2N DC/DC voltage converter.
10 CAP2P DC/DC voltage converter.
11 CAP1P DC/DC voltage converter.
12 CAP1N DC/DC voltage converter.
13 CAP3P DC/DC voltage converter.
14 Vout Positive Voltage output
15 VSS Ground
16 VDD Power supply for logic
17~24 D7~ D0 Data bus line
25 /RD(E) 8080 family: Read signal, 6800 family: Enable clock
26 /WR(R/W) 8080 family: Write signal, 6800 family: Read/Write signal
27 A0 Data/ Instruction select signal
28 /RES Controller reset signal, Active Low
29 /CS1 This is the chip select signal.



Mechanical Data

ItemStandard ValueUnit
Module Dimension 60.1 × 44.5 mm
Viewing Area 54.6 × 32.0 mm
Dot Pitch 0.39 × 0.43 mm
Dot Size 0.36 × 0.40 mm



Electrical Characteristics

ItemSymbolStandard value
typ.		Unit
Input Voltage VDD 3.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 Vo-Vss 9.50 V
Products specifications
Brand Next Vision Display
Size 2.2"
Resolution 128x64
Active Area (mm) 49.89x27.49
Dot Size 0.36x0.40
B/L color, LCD type B/L white, STN blue neg
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7565P
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 29
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 2.2"
Resolution 128x64
Active Area (mm) 49.89x27.49
Dot Size 0.36x0.40
B/L color, LCD type B/L white, STN blue neg
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7565P
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 29
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Related products

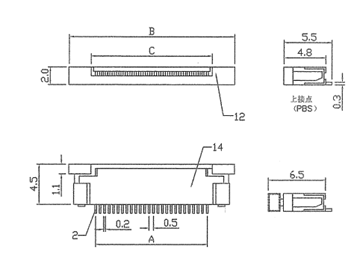

Picture of CNX5231XXXXXXXXXXX00
