NG160160GN001ER

Picture of NG160160GN001ER

Graphic LCD 3" 160x160, B/L white, FSTN white pos, Transflective, COG, 3V, Interface 6800/8080, 6 O'clock

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

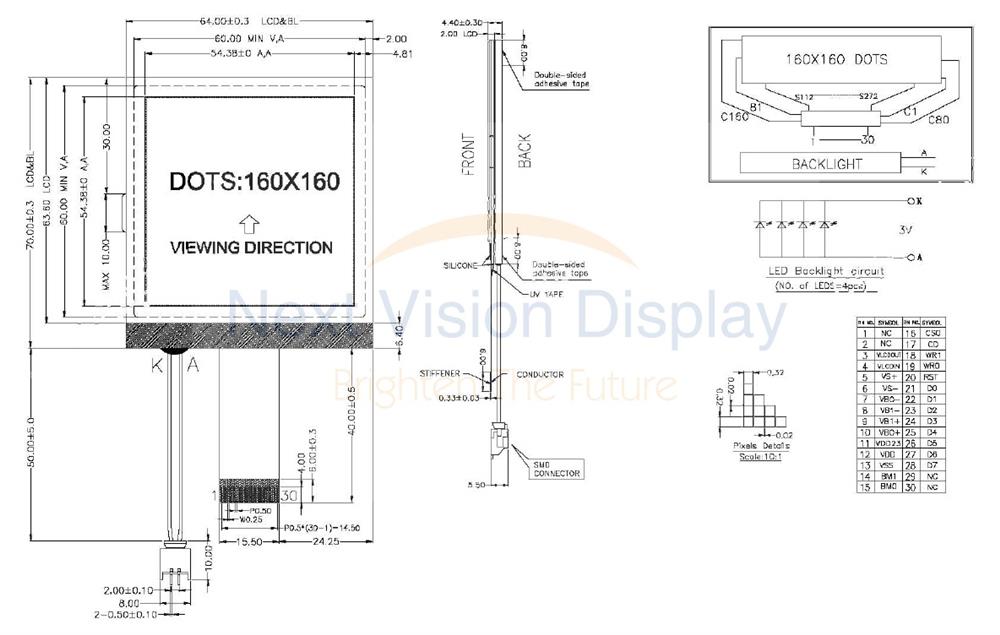

DRAWING

SKU: NG160160GN001ER

Brand: Next Vision Display

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

1+

5+

10+

25+

Price

€25.60

€23.60

€19.90

€18.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€25.60 excl tax

Overview
Specifications
Download
Contact Us

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DRAWING

Products specifications

Brand	Next Vision Display
Size	3"
Resolution	160x160
Active Area (mm)	54.38x54.38
Dot Size	0.32x0.32
B/L color, LCD type	B/L white, FSTN white pos
Power supply	3V
Display Interface	6800/8080
Display IC	UC1698
Constructive Structure	COG
View Angle	6H
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	FPC for ZIF Connector
Pin Nr.	30
Pin Pitch	0.5mm
Preferred - Not Preferred	Not Preferred

Download

Log in or Register to downloads PDF.

Your name

Your email

Enquiry

Products specifications

Brand	Next Vision Display
Size	3"
Resolution	160x160
Active Area (mm)	54.38x54.38
Dot Size	0.32x0.32
B/L color, LCD type	B/L white, FSTN white pos
Power supply	3V
Display Interface	6800/8080
Display IC	UC1698
Constructive Structure	COG
View Angle	6H
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	FPC for ZIF Connector
Pin Nr.	30
Pin Pitch	0.5mm
Preferred - Not Preferred	Not Preferred
