Item

Dimension

Unit

Number of dots

240 x 128

-

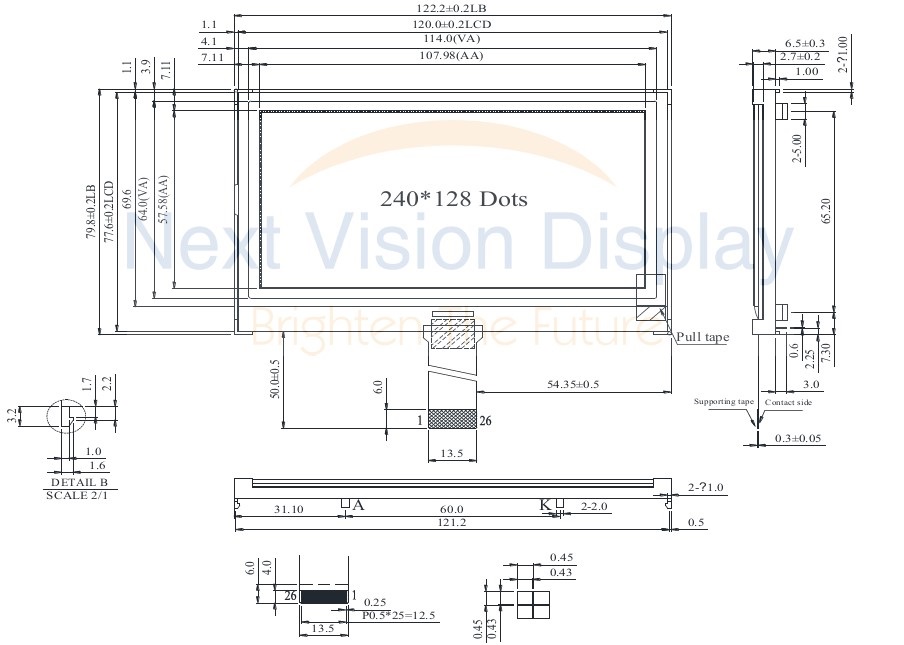

Module dimension

122.2 x 79.8 x 6.5

mm

View area

114.0 x 64.0

mm

Active area

107.98 x 57.58

mm

Dot size

0.43 x 0.43

mm

Dot pitch

0.45 x 0.45

mm

LCD type

FSTN Positive Transflective

(In LCD production, It will occur slightly color difference. We

can only guarantee the same color in the same batch.)

Drive Method

1/128D^,1/12B

View direction

6 o’clock

Backlight Type

LED, White

IC

ST7586S

Interface

68 series /80 series /3 Line/4 Line

Item

Symbol

Condition

Min

Typ

Max

Unit

View Angle

θ

CR≧2

0

-

30

ψ= 180°

θ

CR≧2

0

-

60

ψ= 0°

θ

CR≧2

0

-

45

ψ= 90°

θ

CR≧2

0

-

45

ψ= 270°

Contrast Ratio

CR

-

-

5

-

-

Response Time

T rise

-

-

200

300

ms

T fall

-

-

250

350

ms

Item

Symbol

Min

Typ

Max

Unit

Operating Temperature

TOP

-20

-

+70

°C

Storage Temperature

TST

-30

-

+80

°C

Digital Power Supply Voltage

VDDI

-0.3

-

3.6

V

Analog Power supply voltage

VDDA

-0.3

-

3.6

V

LCD Power supply voltage

V0-XV0

-0.3

-

19

V

LCD Power supply voltage

VG

-0.3

-

5.5

V

Item

Symbol

Condition

Min

Typ

Max

Unit

Supply Voltage For Logic

VDD-VSS

-

3.0

3.3

3.6

V

Supply Voltage For LCM

VOP

Ta=-20°C
Ta=25°C
Ta=+70°C

-

14.8

-

-

15.0

-

-

15.2

-

V
V
V

Input High Volt.

VIH

-

0.7VDD

-

VDD

V

Input Low Volt.

VIL

-

Vss

-

0.3 VDD

V

Output High Volt.

VOH

-

0.8 VDD

-

VDD

V

Output Low Volt.

VOL

-

Vss

-

0.2VDD

V

Supply Current

IDD

VDD=3.3V

-

2.0

4.0

mA
