NH1602BN002ER

Picture of NH1602BN002ER Picture of NH1602BN002ER
Character LCD 2.3" 16x2, B/L white, FFSTN white neg., Transmissive, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

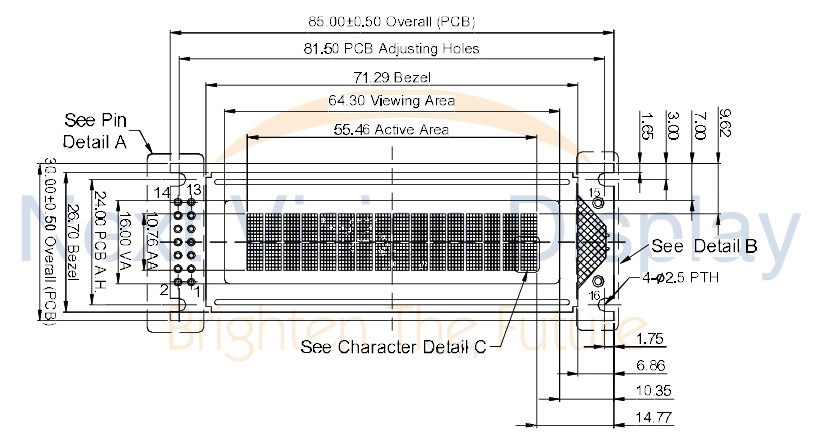

DRAWING



SKU: NH1602BN002ER
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€8.50
€7.80
€6.60
€6.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€8.50 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].





DRAWING



Products specifications
Brand Next Vision Display
Size 2.3"
Resolution 16x2
Active Area (mm) 57.70x9.40
Dot Size 0.55x0.50
B/L color, LCD type B/L white, FFSTN black neg
Power supply 5V
Display Interface 6800
Display IC SPLC780C
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Next Vision Display
Size 2.3"
Resolution 16x2
Active Area (mm) 57.70x9.40
Dot Size 0.55x0.50
B/L color, LCD type B/L white, FFSTN black neg
Power supply 5V
Display Interface 6800
Display IC SPLC780C
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
