NH1602BN002HA

Picture of NH1602BN002HA Picture of NH1602BN002HA
Character LCD 1.37", 16x2, B/L white, FSTN black neg, 6800, COB/SMT, 6H, No touch, Standard Temp., W/ Frame

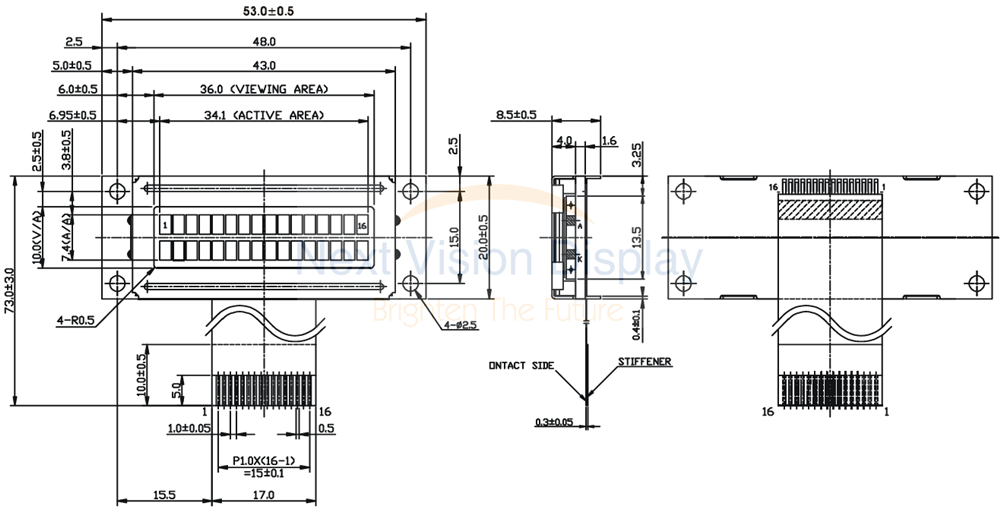

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

PIN NO.

SYMBOL

LEVEL

FUNCTION

1

VSS

-

 0V



2

VDD

-

 5V

 Power supply

3

VL

-

 -



4



RS



H/L



H: Data input

L: Instruction data input

5



R/W



H/L



H: Data read

L: Data write

6

E

H,H→L

Enable signal

7

D0

H/L

Data bus

8

D1

H/L

Data bus

9

D2

H/L

Data bus

10

D3

H/L

Data bus

Data bus

11

D4

H/L

12

D5

H/L

Data bus

13

D6

H/L

Data bus

14

D7

H/L

Data bus

15

A



Anode for LED back light

16

K



Cathode for LED back light



SKU: NH1602BN002HA
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
€10.80 excl tax



DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

PIN NO.

SYMBOL

LEVEL

FUNCTION

1

VSS

-

 0V



2

VDD

-

 5V

 Power supply

3

VL

-

 -



4



RS



H/L



H: Data input

L: Instruction data input

5



R/W



H/L



H: Data read

L: Data write

6

E

H,H→L

Enable signal

7

D0

H/L

Data bus

8

D1

H/L

Data bus

9

D2

H/L

Data bus

10

D3

H/L

Data bus

Data bus

11

D4

H/L

12

D5

H/L

Data bus

13

D6

H/L

Data bus

14

D7

H/L

Data bus

15

A



Anode for LED back light

16

K



Cathode for LED back light



Products specifications
Brand Next Vision Display
Size 1.37"
Resolution 16x2
Active Area (mm) 34.10x7.40
Dot Size 0.33x0.35
B/L color, LCD type B/L white, FSTN black neg
Power supply 5V
Display Interface 6800
Display IC HD44780
Constructive Structure COB
View Angle 6H
O. Temperature (°C) 0~50
Display Connection FFC per ZIF Connector
Pin Nr. 16
Pin Pitch 1mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 1.37"
Resolution 16x2
Active Area (mm) 34.10x7.40
Dot Size 0.33x0.35
B/L color, LCD type B/L white, FSTN black neg
Power supply 5V
Display Interface 6800
Display IC HD44780
Constructive Structure COB
View Angle 6H
O. Temperature (°C) 0~50
Display Connection FFC per ZIF Connector
Pin Nr. 16
Pin Pitch 1mm
Preferred - Not Preferred Preferred
