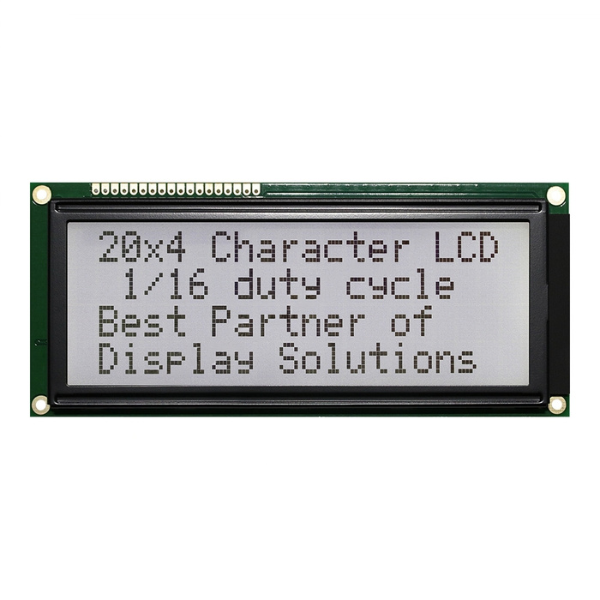

NH2004BN001WS

Character LCD 4.9" 20x4, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 6800, Font Eng/Eu, 6 O'clock

DESCRIPTION

NH2004BN001WS is 20 characters by 4 lines LCD display module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel. This type of LCD Display 20x4 Module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

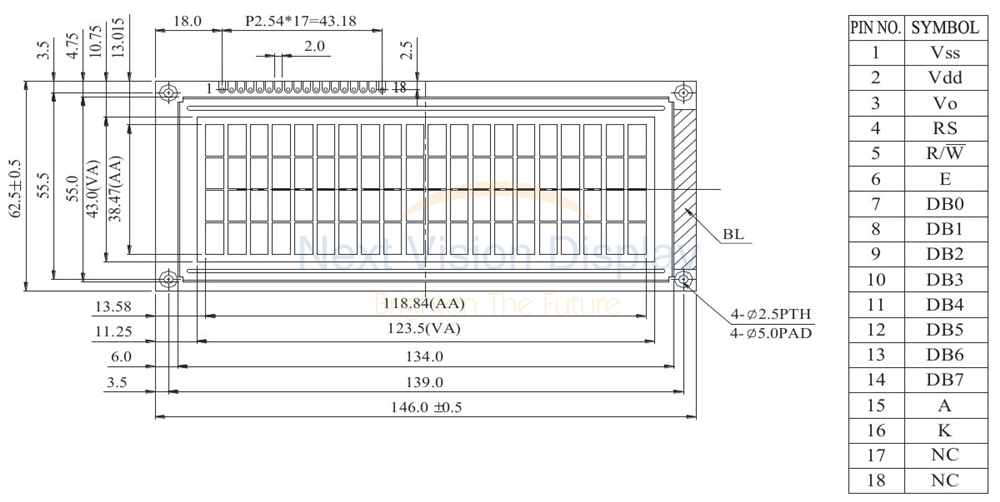

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	Ground
2	VDD	5.0V	Supply Voltage for logic
3	VO	(Variable)	Operating voltage for LCD
4	RS	H/L	H: DATA, L: Instruction code
5	R/W	H/L	H: Read L: Write
6	E	H,H→L	Chip enable signal
7	DB0	H/L	Data bus line
8	DB1	H/L	Data bus line
9	DB2	H/L	Data bus line
10	DB3	H/L	Data bus line
11	DB4	H/L	Data bus line
12	DB5	H/L	Data bus line
13	DB6	H/L	Data bus line
14	DB7	H/L	Data bus line
15	A	－	LED +
16	K	－	LED -
17	NC	－	No connection
18	NC	－	No connection

Mechanical Data

Item	Dimension	Unit
Number of Characters	20 Characters x 4 Lines	－
Module dimension	146.0 x 62.5 x 13.6 (MAX)	mm
View area	123.5 x 43.0	mm
Active area	118.84 x 38.47	mm
Dot size	0.92 x 1.1	mm
Dot pitch	0.98 x 1.16	mm
Character size	4.84 x 9.22	mm
Character pitch	6.0 x 9.75	mm
Duty	1/16
Backlight Type	LED
IC	ST7066U
Interface	6800

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Input Voltage	VI	VSS	－	VDD	V
Supply Voltage For Logic	VDD-VSS	-0.3	－	7	V
Supply Voltage For LCD	VDD-Vo	-0.3	－	13	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.5	5.0	5.5	V
Supply Voltage For LCD	VDD-V0	Ta=-20℃ Ta=25℃ Ta=70℃	－ 4.1 3.5	－ 4.2 －	5.4 4.3 －	V V V
Input High Volt.	VIH	－	0.7VDD	－	VDD	V
Input Low Volt.	VIL	－	VSS	－	0.6	V
Output High Volt.	VOH	－	3.9	－	VDD	V
Output Low Volt.	VOL	－	0	－	0.4	V
Supply Current	IDD	VDD=5.0V	0.4	2.0	4.0	mA

SKU: NH2004BN001WS

Brand: Next Vision Display

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€29.30

€23.40

€22.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€29.30 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	Ground
2	VDD	5.0V	Supply Voltage for logic
3	VO	(Variable)	Operating voltage for LCD
4	RS	H/L	H: DATA, L: Instruction code
5	R/W	H/L	H: Read L: Write
6	E	H,H→L	Chip enable signal
7	DB0	H/L	Data bus line
8	DB1	H/L	Data bus line
9	DB2	H/L	Data bus line
10	DB3	H/L	Data bus line
11	DB4	H/L	Data bus line
12	DB5	H/L	Data bus line
13	DB6	H/L	Data bus line
14	DB7	H/L	Data bus line
15	A	－	LED +
16	K	－	LED -
17	NC	－	No connection
18	NC	－	No connection

Mechanical Data

Item	Dimension	Unit
Number of Characters	20 Characters x 4 Lines	－
Module dimension	146.0 x 62.5 x 13.6 (MAX)	mm
View area	123.5 x 43.0	mm
Active area	118.84 x 38.47	mm
Dot size	0.92 x 1.1	mm
Dot pitch	0.98 x 1.16	mm
Character size	4.84 x 9.22	mm
Character pitch	6.0 x 9.75	mm
Duty	1/16
Backlight Type	LED
IC	ST7066U
Interface	6800

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Input Voltage	VI	VSS	－	VDD	V
Supply Voltage For Logic	VDD-VSS	-0.3	－	7	V
Supply Voltage For LCD	VDD-Vo	-0.3	－	13	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.5	5.0	5.5	V
Supply Voltage For LCD	VDD-V0	Ta=-20℃ Ta=25℃ Ta=70℃	－ 4.1 3.5	－ 4.2 －	5.4 4.3 －	V V V
Input High Volt.	VIH	－	0.7VDD	－	VDD	V
Input Low Volt.	VIL	－	VSS	－	0.6	V
Output High Volt.	VOH	－	3.9	－	VDD	V
Output Low Volt.	VOL	－	0	－	0.4	V
Supply Current	IDD	VDD=5.0V	0.4	2.0	4.0	mA

Products specifications

Brand	Next Vision Display
Size	4.9"
Resolution	20x4
Active Area (mm)	118.84x38.47
Dot Size	0.92x1.10
B/L color, LCD type	B/L white, FSTN white pos
Power supply	5V
Display Interface	6800
Display IC	ST7066U
Constructive Structure	COB
View Angle	6H
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	18
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
