NH2004GN003WS

Character LCD 2.4'' 20x4, B/L white, STN blue neg, Transmissive, COG, 3V, Interface I2C (IC IST3602), 6 O'clock, Pin connection

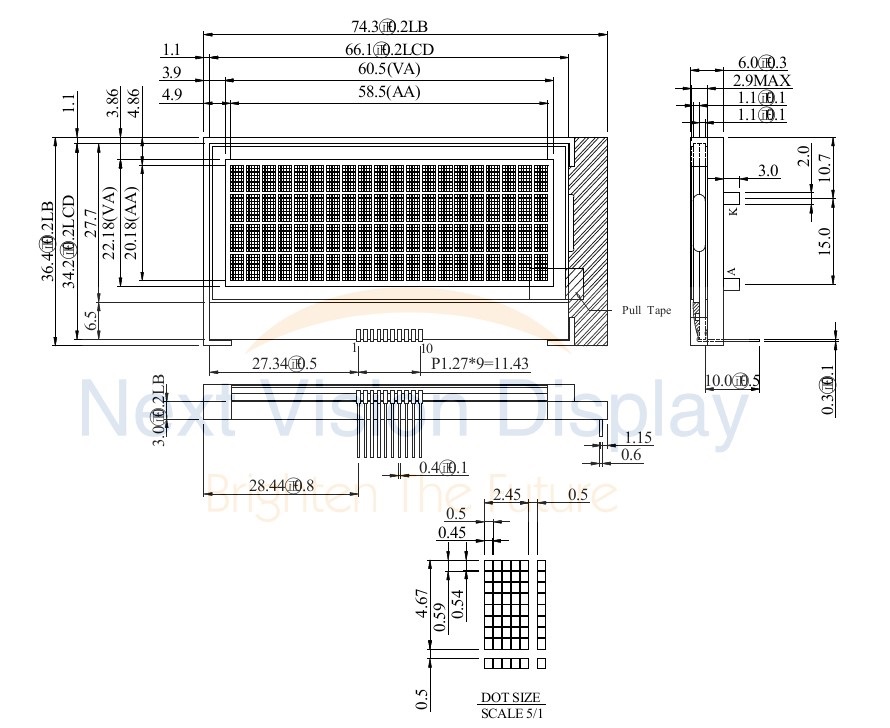

DRAWING

SPECIFICATIONS



Interface Pin Function

Pin

Symbol

Function Description

1

ITO ESD

Ground

2

V0

LCD Power Suppply

3

VSS

Ground

4

VDD

Power Suppply

5

VSS1

Ground

6

VDD1

Power Suppply

7

SDA

Serial input data

8

SCL

Serial input clock

9

RESB

Hardware Reset input pin

10

ITO ESD

Ground



General Specification

Item

Dimension

Unit

Module dimension

74.3 x 36.4 x 6.0

mm

View area

60.5 x 22.18

mm

Active area

58.5 x 20.18

mm

Dot size

0.45x 0.54

mm

Dot pitch

0.50 x 0.59

mm

Character size

2.45 x 4.67

mm

Character pitch

2.95 x 5.17

mm

LCD type

FSTN Positive Transflective

(In LCD production, It will occur slightly color difference. We can only guarantee the same color in the same batch.)

Duty

1/33DUTY,1/6BIAS

View direction

6 o’clock

Backlight Type

LED, White

IC

IST3602

Interface

I2C



Absolute Maximum Ratings

Item

Symbol

Min

Typ

Max

Unit

Operating Temperature

TOP

-20

-

+70

°C

Storage Temperature

TST

-30

-

+80

°C

Input Voltage

VIN

-0.3

-

VDD+0.3

V

Power Supply Voltage

VDD

-0.3

-

4.0

V

LCD Driver Voltage

VLCD

-0.3

-

18.0

V



Electrical Characteristics

Item

Symbol

Condition

Min

Typ

Max

Unit

Supply Voltage For Logic

VDD

-

2.7

3.0

3.3

V

Supply Voltage For LCD

VO-VSS

Ta=-20°C
Ta=25°C
Ta=70°C

-

7.6

-

-

7.8

-

-

8.0

-

V
V
V

Input High Volt.

VIH

-

0.8 VDDIO

-

VDD

V

Input Low Volt.

VIL

-

VSS

-

0.2 VDD

V

Output High Volt.

VOH

-

0.8 VDDIO

-

VDD

V

Output Low Volt.

VOL

-

-

-

0.2 VDD

V

Supply LCM current

IDD

VDD=3.0V

-

1.0

1.5

mA
