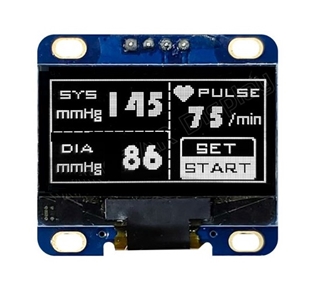

NL013PN001WS

PMOLED 1.28'' Graphic 128x64, White, COG + PCB, 3~5V, Interface SPI, Glare

DESCRIPTION

Graphic COG with PCB OLED module, which is made of resolution 128x64 pixels, diagonal size 1.28 inch. It is built in with SH1106G IC; it supports SPI interface, 1/64 driving duty. This model has PCB outline size 35.50 × 32.0 mm with mounting holes on board and 7x1 metal pins on module.

The supply voltage for logic is 3V/ 5V, supply voltage for display is 7.5V (Internal Boots), display with 50% check board current is 25mA@3.3VDD (typical value). Operating temperatures from -40℃ to +80℃; storage temperatures from -40℃ to +85℃.

DRAWING

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	VCC	Power supply input: 2.9 – 5.2V
2	GND	Ground
3	SCL	When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.
4	SDA

Mechanical Data

Item	Dimension	Unit
Dot Matrix	128 × 64 Dots	－
Module dimension	35.50 × 32.00 × 2.66	mm
Active Area	29.42 × 14.20	mm
Pixel Size	0.205 × 0.197	mm
Pixel Pitch	0.230 × 0.222	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/64 Duty
Controller IC	SH1106
Interface	I2C
Size	1.28 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VCC	1.65	5.5	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VCC	－	2.9	3.3	5.2	V
Input High Volt.	VIH	－	0.8×VCC	－	VCC	V
Input Low Volt.	VIL	－	0	－	0.2×VCC	V
Output High Volt.	VOH	－	0.9×VCC	－	VCC	V
Output Low Volt.	VOL	－	0	－	0.1×VCC	V
50% Check Board operating Current	ICC	VCC =3.3V	-	25	37.5	mA

SKU: NL013PN001WS

Brand: Next Vision Display

Available: Yes

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€12.10

€8.80

€8.50

€8.20

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€12.10 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	VCC	Power supply input: 2.9 – 5.2V
2	GND	Ground
3	SCL	When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.
4	SDA

Mechanical Data

Item	Dimension	Unit
Dot Matrix	128 × 64 Dots	－
Module dimension	35.50 × 32.00 × 2.66	mm
Active Area	29.42 × 14.20	mm
Pixel Size	0.205 × 0.197	mm
Pixel Pitch	0.230 × 0.222	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/64 Duty
Controller IC	SH1106
Interface	I2C
Size	1.28 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VCC	1.65	5.5	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VCC	－	2.9	3.3	5.2	V
Input High Volt.	VIH	－	0.8×VCC	－	VCC	V
Input Low Volt.	VIL	－	0	－	0.2×VCC	V
Output High Volt.	VOH	－	0.9×VCC	－	VCC	V
Output Low Volt.	VOL	－	0	－	0.1×VCC	V
50% Check Board operating Current	ICC	VCC =3.3V	-	25	37.5	mA

Products specifications

Brand	Next Vision Display
Size	1.28"
Resolution	128x64
Active Area (mm)	29.42x14.20
Dot Size	0.20x0.19
Polarizer	Glare
Color	White
Power supply	3~5V
Display Interface	SPI
Display IC	SH1106G
Constructive Structure	COG + PCB
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	Strip Connector
Pin Nr.	7
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
