NT024-N001DW

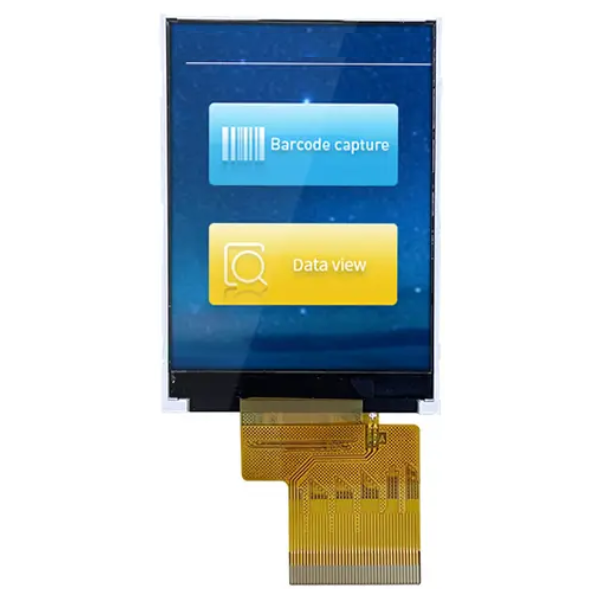

Picture of NT024-N001DW

Picture of NT024-N001DW

Picture of NT024-N001DW

TFT 2.4" 240x320 Portrait LCD Panel, Interface RGB, 300 cd/m2, No touch

General Specification

Color	262K
LCD Type	TN-TFT-LCD
Viewing Angle	Normal viewing angle, 45/45/45/20(L/R/U/D)
Display Area(A.A)	36.72(W)*48.96(H)
Driver IC	ILI9341
Luminance	300cd/m²
LED Numbers	4 LEDS
Interface	RGB_16bit 40PIN_0.5mm

Electrical Characteristics

Analog Voltage	2.8V(Typ.)
Forward Voltage	12.8V(Typ.)
Forward Current	20mA
Uniformity(with L/G)	80%
LED Life-Time	30000 Hr
Power Consumption	256mW

Optical Characteristics

Contrast Ratio	250:1
Response Time	30ms
Transmittance	5.0%

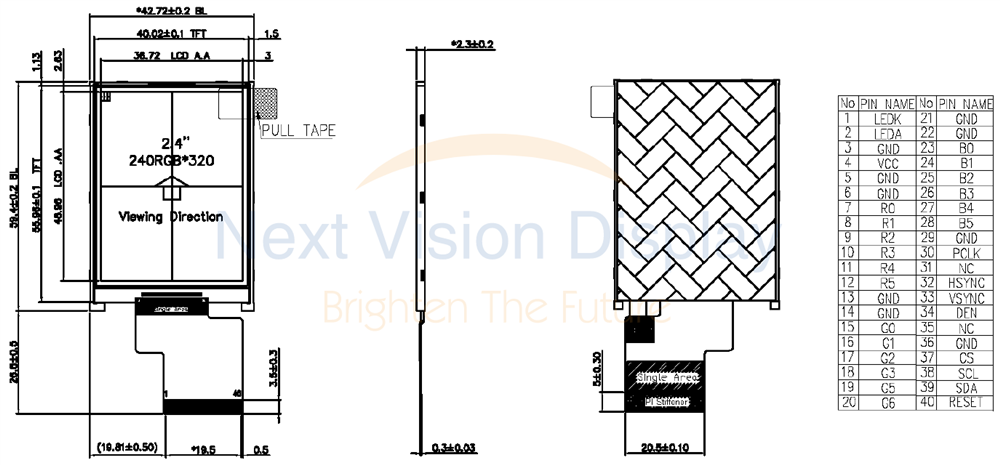

DRAWING

SKU: NT024-N001DW

Brand: Next Vision Display

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

1+

5+

10+

Price

€7.50

€6.50

€5.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€7.50 excl tax

Overview
Specifications
Download
Contact Us

General Specification

Color	262K
LCD Type	TN-TFT-LCD
Viewing Angle	Normal viewing angle, 45/45/45/20(L/R/U/D)
Display Area(A.A)	36.72(W)*48.96(H)
Driver IC	ILI9341
Luminance	300cd/m²
LED Numbers	4 LEDS
Interface	RGB_16bit 40PIN_0.5mm

Electrical Characteristics

Analog Voltage	2.8V(Typ.)
Forward Voltage	12.8V(Typ.)
Forward Current	20mA
Uniformity(with L/G)	80%
LED Life-Time	30000 Hr
Power Consumption	256mW

Optical Characteristics

Contrast Ratio	250:1
Response Time	30ms
Transmittance	5.0%

DRAWING

Products specifications

Brand	Next Vision Display
Size	2.4"
Resolution	240x320
Active Area (mm)	36.72x48.96
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	TN
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred

Download

Log in or Register to downloads PDF.

Your name

Your email

Enquiry

Products specifications

Brand	Next Vision Display
Size	2.4"
Resolution	240x320
Active Area (mm)	36.72x48.96
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	TN
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
