NT035-N001DW

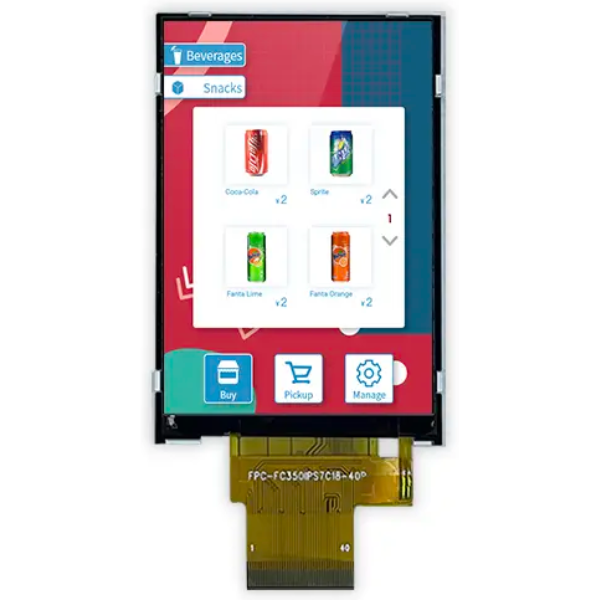

Picture of NT035-N001DW Picture of NT035-N001DW
TFT 3.5" 320x480 Portrait LCD Module, Interface RGB, 300 cd/m², Wide View Angle (IPS), No touch



General Specifications

Color 262K
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 48.96(W)*73.44(H)
Driver IC ST7796-G4
Luminance 300cd/m²
LED Numbers 6 LEDS
Interface RGB_24bit 40PIN_0.5mm


Electrical Characteristics

Analog Voltage 2.8V(Typ.)
Forward Voltage 9.3V(Typ.)
Forward Current 40mA
Power Consumption 372mW
Uniformity(with L/G) 80%
LED Life-Time 30000 Hr


Optical Characteristics

Contrast Ratio 700:1
Response Time 30ms
Transmittance 4.3%

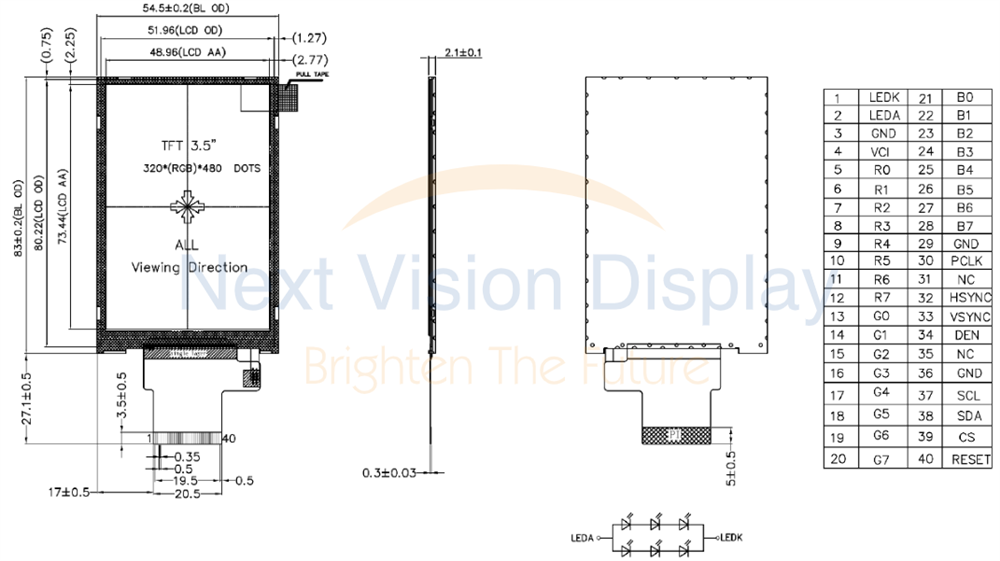

DRAWING

SKU: NT035-N001DW
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€21.20
€18.60
€16.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€21.20 excl tax



General Specifications

Color 262K
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 48.96(W)*73.44(H)
Driver IC ST7796-G4
Luminance 300cd/m²
LED Numbers 6 LEDS
Interface RGB_24bit 40PIN_0.5mm


Electrical Characteristics

Analog Voltage 2.8V(Typ.)
Forward Voltage 9.3V(Typ.)
Forward Current 40mA
Power Consumption 372mW
Uniformity(with L/G) 80%
LED Life-Time 30000 Hr


Optical Characteristics

Contrast Ratio 700:1
Response Time 30ms
Transmittance 4.3%





DRAWING

Products specifications
Brand Next Vision Display
Size 3.5"
Resolution 320x480
Active Area (mm) 73.44x48.96
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 3.5"
Resolution 320x480
Active Area (mm) 73.44x48.96
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
