NT040-N001ET-K

Evaluation kit for TFT NT040-N001ET Panel. The kit includes: UART Driver Board + USB-UART Adapter Board + 4-wire UART Cable + AC/CD Adapter 12V/1A (TFT LCD + Mini USB Cable NOT included)

DISPLAY CONNECTION

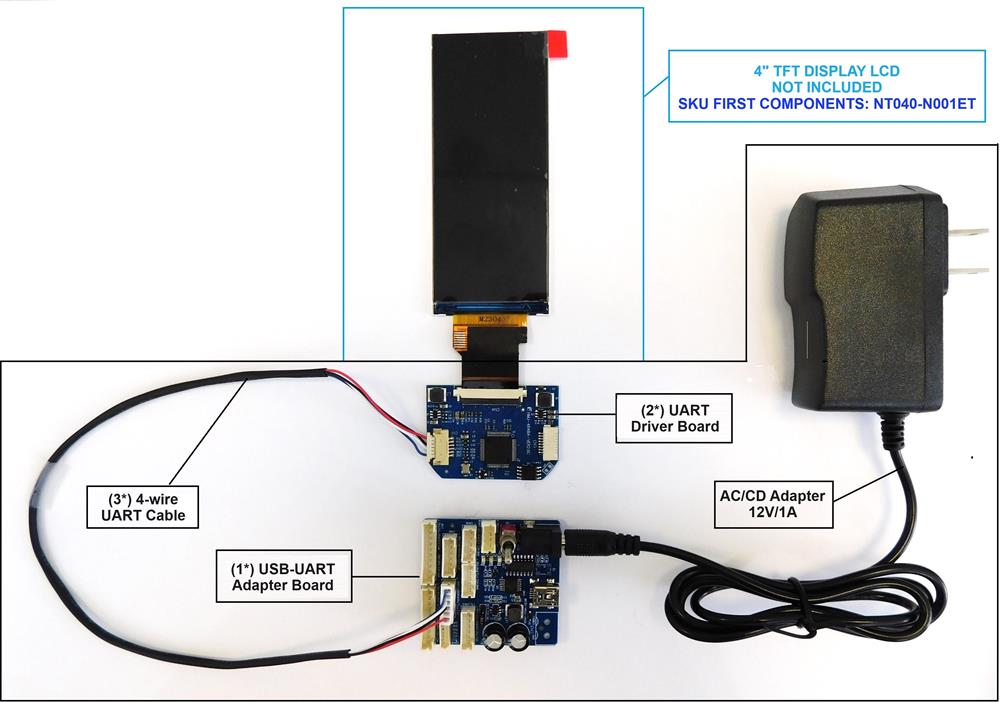

Pleace check the demo kit contents in the black box below once you open the packaging:

Kit Assembling Guide:

1) Connect the Display to the ZIF Connector (Bottom Contact) on the 2*;

2) Connect the 2* to the 1* through the 3* as shown in the above picture;

3) Connect the 1* to the PC through a microusb cable selectable in 'accessory kit'/related products;

4) Connect the power adapter 12V/1A to the 1* and power on the kit with the metal switch;

SKU: NT040-N001ET-K

Brand: Next Vision Display

Available: Yes

Be the first to review this product

Accessory Kit

Added Accessory 1

€29.20 excl tax

Overview
Specifications
Download
Contact Us

DISPLAY CONNECTION

Pleace check the demo kit contents in the black box below once you open the packaging:

Kit Assembling Guide:

1) Connect the Display to the ZIF Connector (Bottom Contact) on the 2*;

2) Connect the 2* to the 1* through the 3* as shown in the above picture;

3) Connect the 1* to the PC through a microusb cable selectable in 'accessory kit'/related products;

4) Connect the power adapter 12V/1A to the 1* and power on the kit with the metal switch;

Products specifications

Brand	Next Vision Display
Size	4"
Power supply	12V
Touch Panel	No touch
Preferred - Not Preferred	Preferred

Download

Your name

Your email

Enquiry

Products specifications

Brand	Next Vision Display
Size	4"
Power supply	12V
Touch Panel	No touch
Preferred - Not Preferred	Preferred
