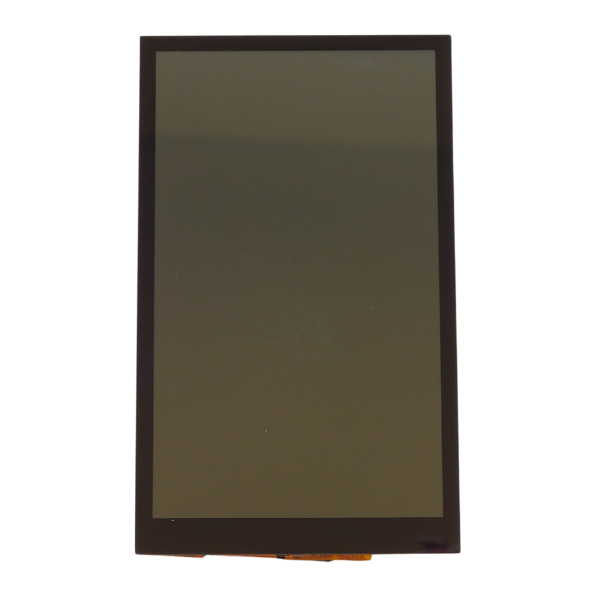

NT043-C002DW

Picture of NT043-C002DW Picture of NT043-C002DW
TFT 4.3" 480x800 Portrait LCD Panel, Interface RGB, 250cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, GT911 IC)

General Specification

Color 16.7M
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 56.16(W)*93.6(H)
Driver IC ST7701S
Luminance 250cd/m²
LED Numbers 10 LEDS
Interface RGB_24bit 40PIN_0.5mm



Electrical Characteristics

Analog Voltage 3V(Typ.)
Forward Voltage 15V(Typ.)
Forward Current 40mA
Power Consumption 600mW
Uniformity(with L/G) 80%
LED Life-Time 30000Hr



Optical Characteristics

Contrast Ratio 1000:1
Response Time 25ms
Color Gamut 70%
Color Temperature 5870K



Touch Parameters

Feature Description
Type CTP (Capacitive touch panel)
Structure G+G
Outline Size (mm) 62.96(L)*103.67(W)*1.78(T)
Active Area (mm) 56.16(L)*93.60(W)
Control Type GT911
Surface Hardness 6H
Light Transmittance ≥85%
Operating Temperature -20~70°C
Storage Temperature -20~70°C

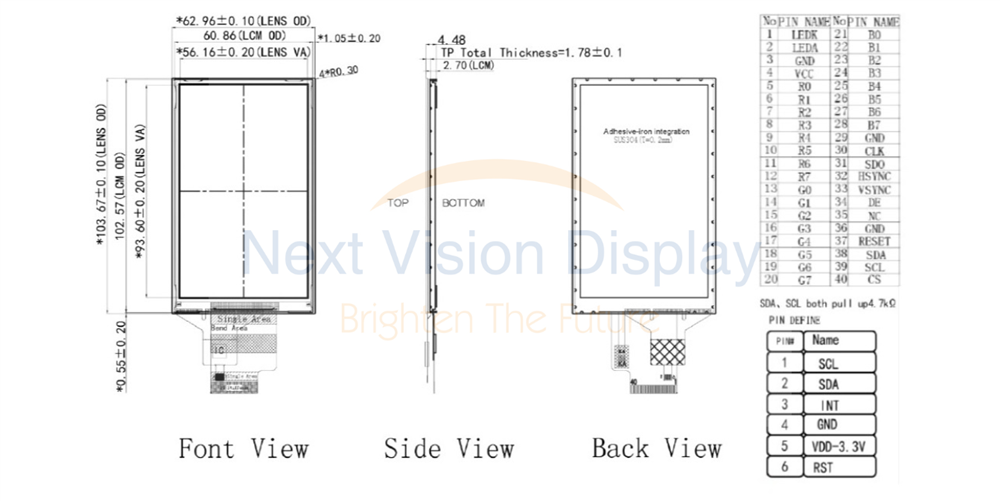

DRAWING

SKU: NT043-C002DW
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€21.20
€18.60
€16.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€21.20 excl tax

General Specification

Color 16.7M
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 56.16(W)*93.6(H)
Driver IC ST7701S
Luminance 250cd/m²
LED Numbers 10 LEDS
Interface RGB_24bit 40PIN_0.5mm



Electrical Characteristics

Analog Voltage 3V(Typ.)
Forward Voltage 15V(Typ.)
Forward Current 40mA
Power Consumption 600mW
Uniformity(with L/G) 80%
LED Life-Time 30000Hr



Optical Characteristics

Contrast Ratio 1000:1
Response Time 25ms
Color Gamut 70%
Color Temperature 5870K



Touch Parameters

Feature Description
Type CTP (Capacitive touch panel)
Structure G+G
Outline Size (mm) 62.96(L)*103.67(W)*1.78(T)
Active Area (mm) 56.16(L)*93.60(W)
Control Type GT911
Surface Hardness 6H
Light Transmittance ≥85%
Operating Temperature -20~70°C
Storage Temperature -20~70°C





DRAWING

Products specifications
Brand Next Vision Display
Size 4.3"
Resolution 480x800
Active Area (mm) 56.16x93.60
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 4.3"
Resolution 480x800
Active Area (mm) 56.16x93.60
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
