NT043-N002DW

Picture of NT043-N002DW Picture of NT043-N002DW

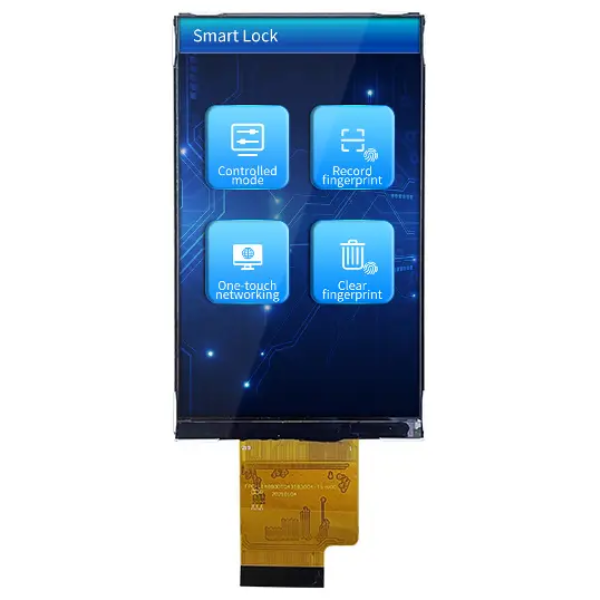

TFT 4.3" 480x800 Portrait LCD Panel, Interface RGB, 300cd/m², Wide View Angle (IPS), No touch

General Feature

Color 16.7M
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 56.16(W)*93.6(H)
Driver IC ST7701S
Luminance 300cd/m²
LED Numbers 10 LEDS
Interface RGB_24bit 40PIN_0.5mm



Electrical Characteristics

Analog Voltage 3V(Typ.)
Forward Voltage 15V(Typ.)
Forward Current 40mA
Power Consumption 600mW
Uniformity(with L/G) 80%
LED Life-Time 30000Hr



Optical Characteristics

Contrast Ratio 1000:1
Response Time 25ms
Color Gamut 70%
Color Temperature 5870K

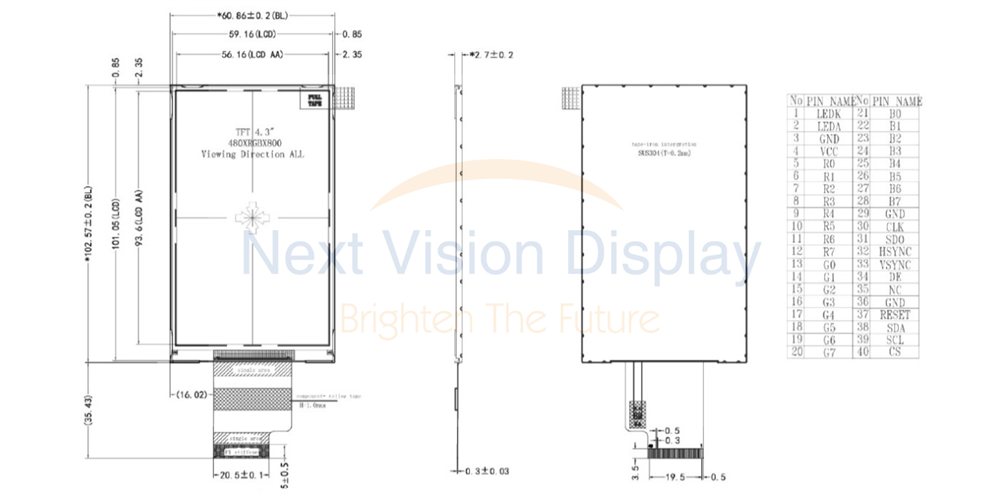

DRAWING

SKU: NT043-N002DW
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€13.30
€11.60
€10.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€13.30 excl tax

General Feature

Color 16.7M
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 56.16(W)*93.6(H)
Driver IC ST7701S
Luminance 300cd/m²
LED Numbers 10 LEDS
Interface RGB_24bit 40PIN_0.5mm



Electrical Characteristics

Analog Voltage 3V(Typ.)
Forward Voltage 15V(Typ.)
Forward Current 40mA
Power Consumption 600mW
Uniformity(with L/G) 80%
LED Life-Time 30000Hr



Optical Characteristics

Contrast Ratio 1000:1
Response Time 25ms
Color Gamut 70%
Color Temperature 5870K





DRAWING

Products specifications
Brand Next Vision Display
Size 4.3"
Resolution 480x800
Active Area (mm) 56.16x93.60
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 4.3"
Resolution 480x800
Active Area (mm) 56.16x93.60
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
