NT043-R001JD

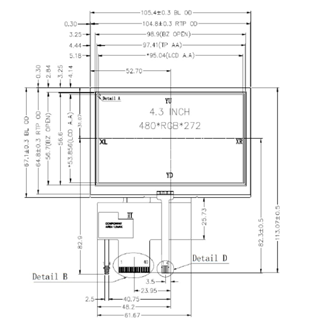

Picture of NT043-R001JD Picture of NT043-R001JD
TFT 4.3" 480x272 LCD Panel, Interface RGB, 500cd/m², Resistive touch panel (Replacement Evervision P/N VGG482709-6UFLWF)

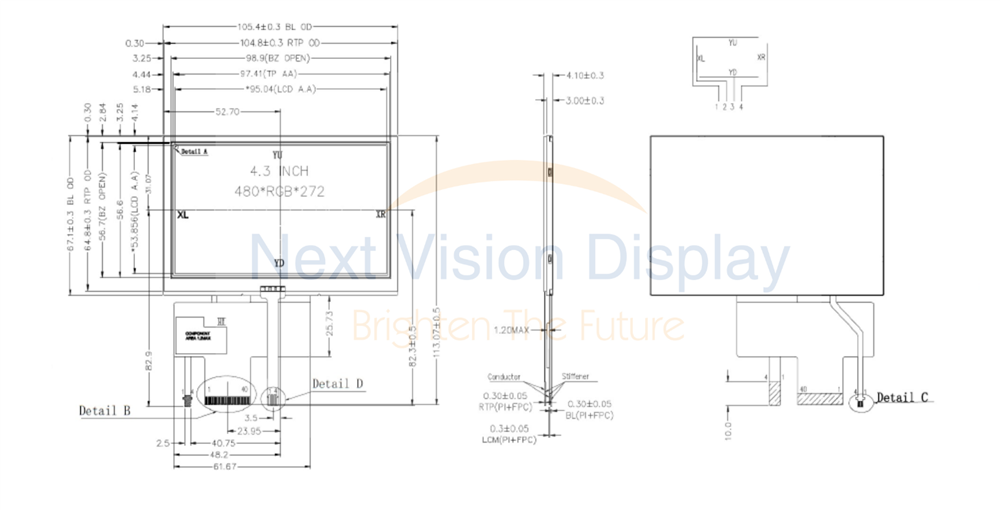

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

Pin No.Pin NameDescription
1~2 VSS Ground
3~4 DVDD Power Supply: +3.3V
5 R0 Red Data Input (LSB)
6~11 R1~R6 Red Data Input
12 R7 Red Data Input (MSB)
13 G0 Green Data Input (LSB)
14~19 G1~G6 Green Data Input
20 G7 Green Data Input (MSB)
21 B0 Blue Data Input (LSB)
22~27 B1~B6 Blue Data Input
28 B7 Blue Data Input (MSB)
29 VSS Ground
30 PCLK Clock Input
31 DISP Display on/off
32 HSYNC Horizontal sync input. Negative polarity.
33 VSYNC Vertical sync input. Negative polarity.
34~40 NC No Connection




RTP PIN Definition

Pin No.Pin NameDescription
1 YU TP Up
2 XL TP Left
3 YD TP Bottom
4 XR TP Right



Backlight PIN Definition

Pin No.Pien NameDescription
1 VLED- LED backlight (Cathode)
2~3 NC No Connection
4 VLED+ LED backlight (Anode)



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 x RGB x 272 dots
Module dimension 105.5(W) x 67.1(H) x 4.1(D) mm
Active area 95.04 x 53.856 mm
LCD type TFT, Normally White, Transmissive
Viewing Angle TN
Backlight Type LED, Normally White
TFT Interface RGB
PIN nr. 40
PIN Pitch 0.5m
Touch Panel Resistive Touch Panel
RTP Size 104.8(W) x 64.8(H) x 1.1(T)



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ParameterSymbolMin.Typ.Max.Units
Power Voltage DVDD 2.5 2.8 3.6 V
Input logic high voltage V(IH) 0.7*DVDD - DVDD V
Input logic low voltage V(IL) GND - 0.3*DVDD V
Ouput high voltage V(OH) 0.8*DVDD - DVDD V
Output low voltage V(OL) GD - 0.2*DVDD V
Current for Power I(DVDD) - 12 25 mA
SKU: NT043-R001JD
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€28.10
€22.50
€19.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€28.10 excl tax

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

Pin No.Pin NameDescription
1~2 VSS Ground
3~4 DVDD Power Supply: +3.3V
5 R0 Red Data Input (LSB)
6~11 R1~R6 Red Data Input
12 R7 Red Data Input (MSB)
13 G0 Green Data Input (LSB)
14~19 G1~G6 Green Data Input
20 G7 Green Data Input (MSB)
21 B0 Blue Data Input (LSB)
22~27 B1~B6 Blue Data Input
28 B7 Blue Data Input (MSB)
29 VSS Ground
30 PCLK Clock Input
31 DISP Display on/off
32 HSYNC Horizontal sync input. Negative polarity.
33 VSYNC Vertical sync input. Negative polarity.
34~40 NC No Connection




RTP PIN Definition

Pin No.Pin NameDescription
1 YU TP Up
2 XL TP Left
3 YD TP Bottom
4 XR TP Right



Backlight PIN Definition

Pin No.Pien NameDescription
1 VLED- LED backlight (Cathode)
2~3 NC No Connection
4 VLED+ LED backlight (Anode)



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 x RGB x 272 dots
Module dimension 105.5(W) x 67.1(H) x 4.1(D) mm
Active area 95.04 x 53.856 mm
LCD type TFT, Normally White, Transmissive
Viewing Angle TN
Backlight Type LED, Normally White
TFT Interface RGB
PIN nr. 40
PIN Pitch 0.5m
Touch Panel Resistive Touch Panel
RTP Size 104.8(W) x 64.8(H) x 1.1(T)



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ParameterSymbolMin.Typ.Max.Units
Power Voltage DVDD 2.5 2.8 3.6 V
Input logic high voltage V(IH) 0.7*DVDD - DVDD V
Input logic low voltage V(IL) GND - 0.3*DVDD V
Ouput high voltage V(OH) 0.8*DVDD - DVDD V
Output low voltage V(OL) GD - 0.2*DVDD V
Current for Power I(DVDD) - 12 25 mA
Products specifications
Brand Next Vision Display
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
