NT050-C001ML

Picture of NT050-C001ML Picture of NT050-C001ML
TFT 5'' 800x480, HDMI Interface, Full Color, 350cd/m², Capacitive touch panel, Standard Temp., W/ Frame





DESCRIPTION



The NT050-­C001ML model is a Color TFT LCD supplied by Next Vision Display. This main Module has a 5.0 inch diagonally measured active display area with 800(RGB)X480 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes. The NT050­-C001ML has been designed to apply the HDMI interface method that enables low power, high speed, and high contrast. With capacitive touch panel.



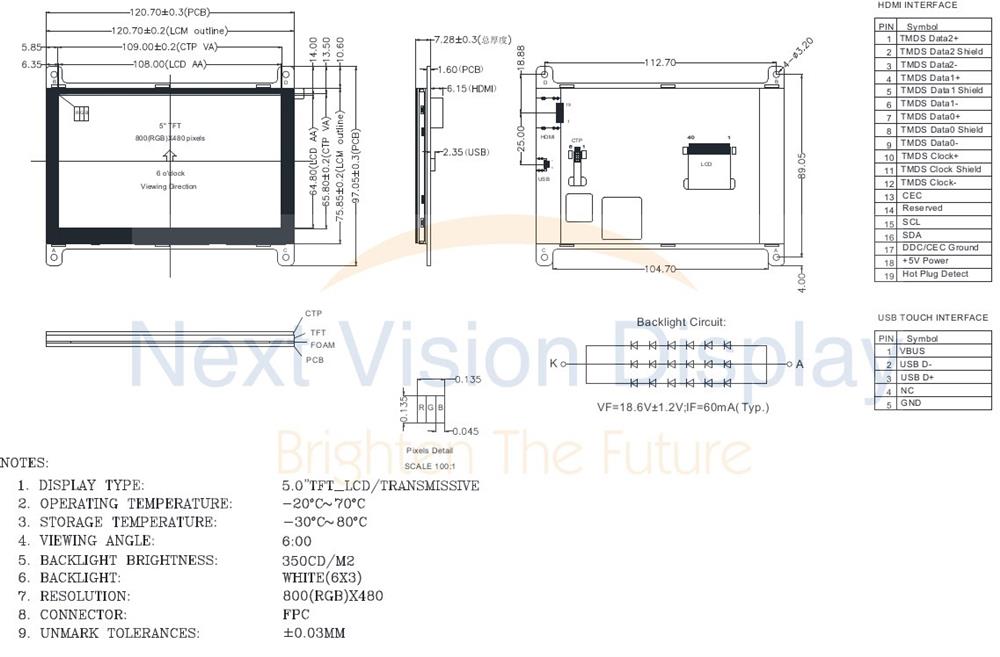

DRAWING



SPECIFICATIONS



Mechanical Specification

ITEM

Standard Value

Unit

Display Mode

Normally White, Transmissive LCD



Module Dimension

120.70(W)*97.05(H)*7.27(T)

mm

Resolution

800(RGB)X 480

Pixels

Active Display Area

154.21(W)×85.92(H)

mm

Module Structure

LCD Display + CTP Touch + PCB



Viewing Direction

 12 O’clock

--

Gray inversion direction

6 O’clock



LED Backlight Color

White

--

Interface

LCD:HDMI,  CTP:USB

--

Color Numbers

16.7M



Power supply

USB(5.0V)



Support system

Win/7/Win8/Win10(plug and play)



Android,Linux (configured in requests)

Power Consumption

485(Typ)

mA




Interface Pin Connections

HDMI interface:

Pin No.

Symbol

Description

1

TMDS Data2+

Positive side of channel 2 TMDS low-voltage signal differential input pair

2

TMDS Data2 Shield

Ground

3

TMDS Data2-

Negative side of channel 2 TMDS low-voltage signal differential input pair

4

TMDS Data1+

Positive side of channel 1 TMDS low-voltage signal differential input pair

5

TMDS Data1 Shield

Ground

6

TMDS Data1-

Negative side of channel 1 TMDS low-voltage signal differential input pair

7

TMDS Data0+

Positive side of channel 0 TMDS low-voltage signal differential input pair

8

TMDS Data0 Shield

Ground

9

TMDS Data0-

Negative side of channel 0 TMDS low-voltage signal differential input pair

10

TMDS Clock+

Positive side of reference clock. TMDS low-voltage signal differential input pair

11

TMDS Clock Shield

Ground

12

TMDS Clock-

Negative side of reference clock. TMDS low-voltage signal differential input pair

13

CEC

No Connection

14

Reserved(N.C.)

No Connection

15

SCL

DDC SCL

16

SDA

DDC SDA

17

DDC/CEC Ground

Ground

18

+5V Power

+5V Power

19

Hot Plug Detect

Hot Plug Detect



SKU: NT050-C001ML
Brand: Next Vision Display
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€85.20
€70.10
€65.40

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€85.20 excl tax





DESCRIPTION
