NT057-R001ME

TFT 5.7" 320x240, LCD Module, Interface RGB, 450 cd/m2, Resistive Touch Panel, Frame, Anti-Glare Polarizer

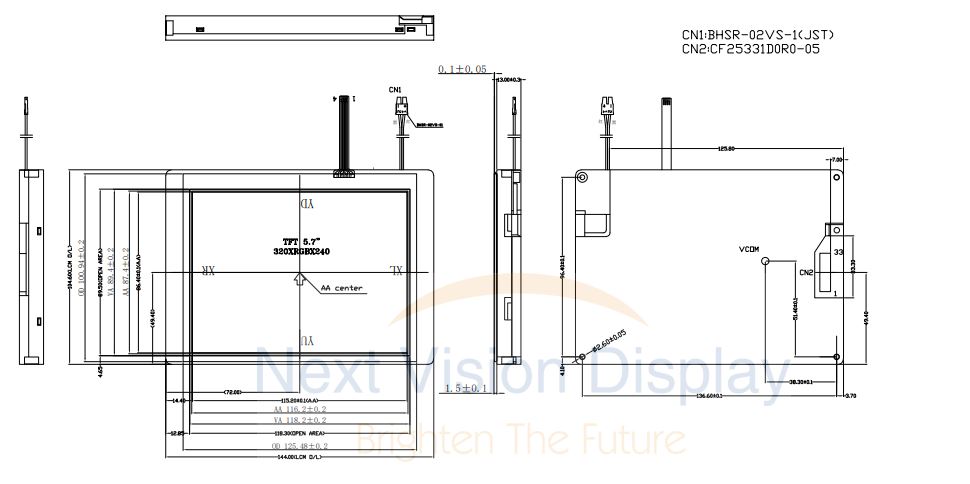

DRAWING

SPECIFICATIONS



Interface

PinSymbolFunction
1 GND Ground
2 CK Clock signal for sampling each data signal
3 Hsync Horizontal synchronous signal
4 Vsync Vertical synchronous signal
5 GND Ground
6 R0 Red Data bit(LSB)
7~10 R1~R4 Red Data bit
11 R5 Red Data bit(MSB)
12 GND Ground
13 G0 Green Data bit(LSB)
14~17 G1~G4 Green Data bit
18 G5 Green Data bit(MSB)
19 GND Ground
20 B0 Blue Data bit(LSB)
21~24 B1~B4 Blue Data bit
25 B5 Blue Data bit(MSB)
26 GND Ground
27 NC No connect
28~29 VCC +3.3V power supply
30 R/L Selection signal for horizontal scanning direction (L: Normally  H: Right-and-left reversal)
31 U/D Selection signal for vertical scanning direction (H: Normally   L: Up-and-Down reversal)
32 NC No connect
33 GND Ground



General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 320 × RGB × 240 (TFT) dots
Module dimension 143.5 × 104.1 × 13.85 mm
Active area 115.2 × 86.4 mm
Dot pitch 0.12 × 0.36 mm
LCD type TFT, Normally White, Transmissive
Drive IC HX8218+HX8615 or equivalent
Interface 18-bit RGB
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio 4:3
Backlight Type LED, Normally White
Touch Screen Resistive Touch Screen
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC 110 170 mA
Power Consumption 363 612 mW


SKU: NT057-R001ME
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€84.20
€77.20
€74.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€84.20 excl tax





DRAWING

SPECIFICATIONS



Interface

PinSymbolFunction
1 GND Ground
2 CK Clock signal for sampling each data signal
3 Hsync Horizontal synchronous signal
4 Vsync Vertical synchronous signal
5 GND Ground
6 R0 Red Data bit(LSB)
7~10 R1~R4 Red Data bit
11 R5 Red Data bit(MSB)
12 GND Ground
13 G0 Green Data bit(LSB)
14~17 G1~G4 Green Data bit
18 G5 Green Data bit(MSB)
19 GND Ground
20 B0 Blue Data bit(LSB)
21~24 B1~B4 Blue Data bit
25 B5 Blue Data bit(MSB)
26 GND Ground
27 NC No connect
28~29 VCC +3.3V power supply
30 R/L Selection signal for horizontal scanning direction (L: Normally  H: Right-and-left reversal)
31 U/D Selection signal for vertical scanning direction (H: Normally   L: Up-and-Down reversal)
32 NC No connect
33 GND Ground



General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 320 × RGB × 240 (TFT) dots
Module dimension 143.5 × 104.1 × 13.85 mm
Active area 115.2 × 86.4 mm
Dot pitch 0.12 × 0.36 mm
LCD type TFT, Normally White, Transmissive
Drive IC HX8218+HX8615 or equivalent
Interface 18-bit RGB
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio 4:3
Backlight Type LED, Normally White
Touch Screen Resistive Touch Screen
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC 110 170 mA
Power Consumption 363 612 mW


Products specifications
Brand Next Vision Display
Size 5.7"
Resolution 320x240
Active Area (mm) 115.20x86.40
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 33
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 5.7"
Resolution 320x240
Active Area (mm) 115.20x86.40
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 33
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
