NT057-R002ME

TFT 5.7" 320x240 LCD Panel, Interface RGB, 450 cd/m2, Resistive Touch Panel, Anti-Glare Polarizer (Replacement Evervision P/N VGG322403-7UFLWF)

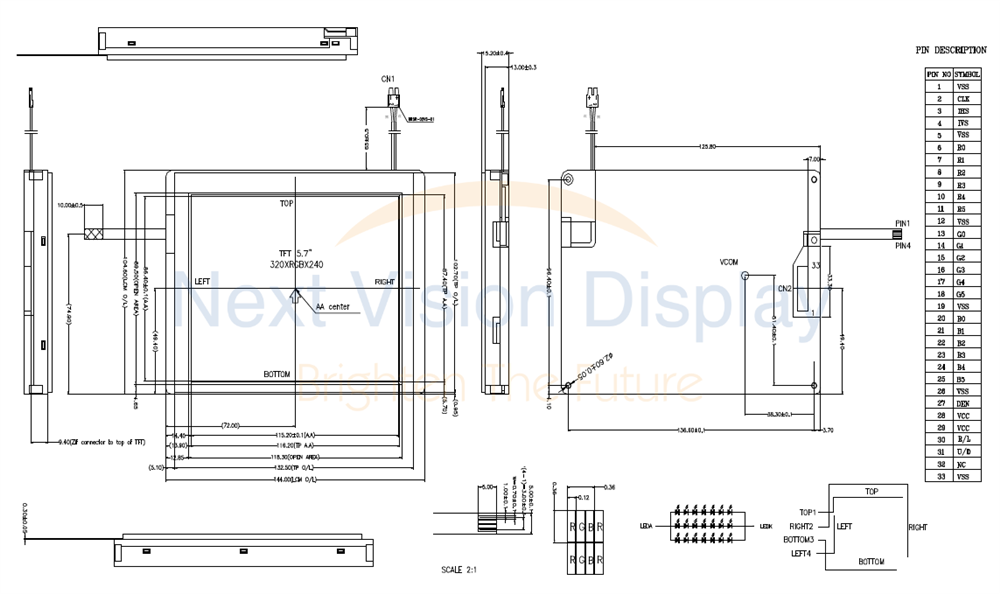

DRAWING

SPECIFICATIONS

General Specifications

Item	Contents	Unit
LCD Type	TFT/Transmissive
Module Size	144.00 x 104.60 x 15.20(TOTAL)	mm
Active Size (WHT)	115.20 x 86.40	mm
Pixel Pitch (W*H)	0.12 x 0.36	mm
Number of Dots	320x240
Driver IC	HX8218C04+HX8615C
Interface Type	18-bit RGB
Top Polarizer Type	Anti-Glare
Recommend Viewing Direction	6	O'Clock
Gray Scale Inversion Direction	12	O'Clock
Backlight Type	21-dies white LED
Touch Panel Type	Resistive

Electrical Characteristics

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Supply voltage for digital	VCC	-0.3	4.3	V
Supply current (One LED)	I_LED	-	30	mA
Operating temperature	T_OP	-20	+70	°C
Storage temperature	T_ST	-30	+80	°C

Input Power

Parameter	Symbol	Min.	Typ.	Max	Unit
Power supply Voltage	VCC	3.0	3.3	3.6	V
Input Voltage	V_IL	0	-	0.3VCC	V
Input Voltage	V_IH	0.7 VCC	-	VCC	V
Power Consumption	P_L	-	(0.24)	-	W
Frame Frequency	F_V	-	60	-	HZ
Dot Clock	TCLK	-	6.4	7	MHz

Interface

Input /Output Pin Assignment

Pin	Pin Name	Description
1	VSS	Power ground
2	CLK	Clock singal. Latching data at the rising edge.
3	IHS	Horizontal sync input in digital RGB and CCIR601 mode.
4	IVS	Vertical sync input in digital RGB and CCIR601 mode. (Short to GND if not used)
5	VSS	Power ground
6~11	R0~R5	Red data input
12	VSS	Power ground
13~18	G0~G5	Green data input
19	VSS	Power ground
20~25	B0~B5	Blue data input
26	VSS	Power ground
27	DEN	Input data enable control. When DE mode, active High to enable data input. Default pull low.
28	VCC	+ 3.3V Power supply
29	VCC	+ 3.3V Power supply
30	R/L	Right-and-left scan setting. ("L": normally, "H": Right and left reversal)
31	UD	Upd/down scan setting. ("L": normally scan, "H": Up-and-down reversal)
32	NC	No connection
33	VSS	Power ground

SKU: NT057-R002ME

Brand: Next Vision Display

Available: Yes

Be the first to review this product

Accessory Kit

FFC Cable
Display Connector
Touch-Panel Connector

Price Breaks

Quantity

10+

Price

€94.70

€86.90

€83.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€94.70 excl tax

Overview
Specifications
Download
Contact Us

DRAWING

SPECIFICATIONS

General Specifications

Item	Contents	Unit
LCD Type	TFT/Transmissive
Module Size	144.00 x 104.60 x 15.20(TOTAL)	mm
Active Size (WHT)	115.20 x 86.40	mm
Pixel Pitch (W*H)	0.12 x 0.36	mm
Number of Dots	320x240
Driver IC	HX8218C04+HX8615C
Interface Type	18-bit RGB
Top Polarizer Type	Anti-Glare
Recommend Viewing Direction	6	O'Clock
Gray Scale Inversion Direction	12	O'Clock
Backlight Type	21-dies white LED
Touch Panel Type	Resistive

Electrical Characteristics

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Supply voltage for digital	VCC	-0.3	4.3	V
Supply current (One LED)	I_LED	-	30	mA
Operating temperature	T_OP	-20	+70	°C
Storage temperature	T_ST	-30	+80	°C

Input Power

Parameter	Symbol	Min.	Typ.	Max	Unit
Power supply Voltage	VCC	3.0	3.3	3.6	V
Input Voltage	V_IL	0	-	0.3VCC	V
Input Voltage	V_IH	0.7 VCC	-	VCC	V
Power Consumption	P_L	-	(0.24)	-	W
Frame Frequency	F_V	-	60	-	HZ
Dot Clock	TCLK	-	6.4	7	MHz

Interface

Input /Output Pin Assignment

Pin	Pin Name	Description
1	VSS	Power ground
2	CLK	Clock singal. Latching data at the rising edge.
3	IHS	Horizontal sync input in digital RGB and CCIR601 mode.
4	IVS	Vertical sync input in digital RGB and CCIR601 mode. (Short to GND if not used)
5	VSS	Power ground
6~11	R0~R5	Red data input
12	VSS	Power ground
13~18	G0~G5	Green data input
19	VSS	Power ground
20~25	B0~B5	Blue data input
26	VSS	Power ground
27	DEN	Input data enable control. When DE mode, active High to enable data input. Default pull low.
28	VCC	+ 3.3V Power supply
29	VCC	+ 3.3V Power supply
30	R/L	Right-and-left scan setting. ("L": normally, "H": Right and left reversal)
31	UD	Upd/down scan setting. ("L": normally scan, "H": Up-and-down reversal)
32	NC	No connection
33	VSS	Power ground

Products specifications

Brand	Next Vision Display
Size	5.7"
Resolution	320x240
Active Area (mm)	115.20x86.40
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	TN
Frame	No
Touch Panel	Resistive
O. Temperature (°C)	-20~70
Display Connection	ZIF Connector
Pin Nr.	33
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
