    TFT 5.7" 320x240 LCD Panel, Interface RGB, 360cd/m², Resistive touch panel (Replacement Evervision P/N VGG322403-7UFLWF)
    Manufacturer: Next Vision Display
    SKU: NT057-R003JD

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €106.50
    €95.90
    €90.10

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €106.50 excl tax
    i h

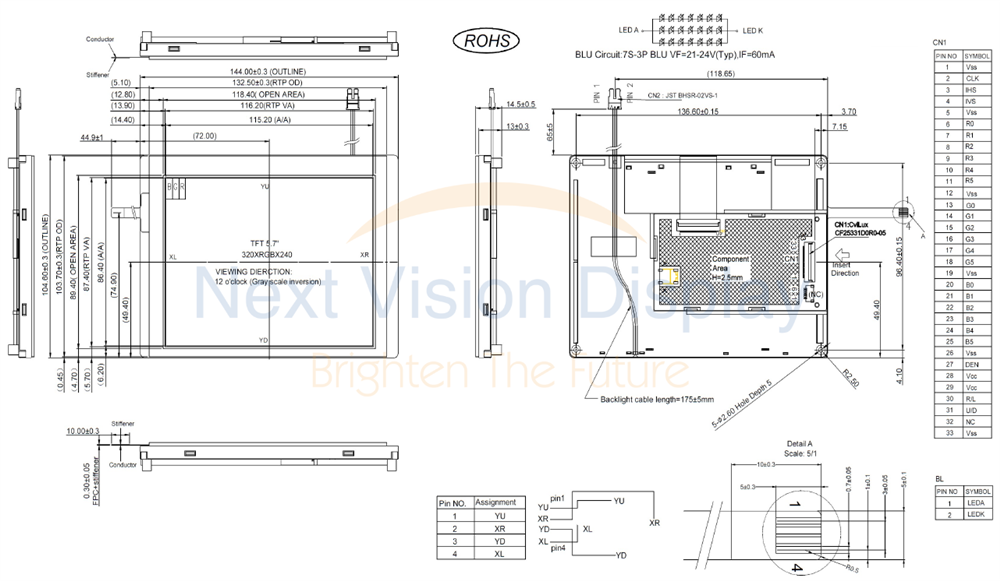

    DRAWING





    SPECIFICATIONS

    General Specifications

    ItemStandard ValuesUnit
    LCD Type 5.7" TFT
    Dot arrangement 320 X R.G.B. X 240 dots
    Color filter array RGB vertical stripe
    Display mode Normally white
    Gray Scale Inversion Direction 6 O'clock
    Eyes Viewing Direction 12 O'clock
    Module size 144.0(W) X 104.6(H) x 14.5(T) mm
    Active area 115.2(W) x 86.4(H) mm
    Interface RGB 18 bit
    Operating temperature -20 ~ + 70 °C
    Storage temperature -30 ~ + 80 °C
    Wight TBD g



    Electrical Characteristics

    Absolute Maximum Ratings

    ItemSymbolMin.Max.Unit
    Supply Voltage VCC -0.3 4.3 V



    Interface

    Input /Output Pin Assignment

    PinPin NameDescription
    1 VSS Ground
    2 CLK Clock input.
    3 IHS Horizontal sync input. Negative polarity.
    4 IVS Vertical sync input. Negative polarity.
    5 VSS Ground
    6 R0 Red Data input (LSB).
    7 R1 Red Data input
    8 R2 Red Data input
    9 R3 Red Data input
    10 R4 Red Data input
    11 R5 Red Data input (MSB).
    12 VSS Ground
    13 G0 Green Data input (LSB).
    14 G1 Green Data input
    15 G2 Green Data input
    16 G3 Green Data input
    17 G4 Green Data input
    18 G5 Green Data input (MSB).
    19 VSS Ground
    20 B0 Blue Data input (LSB).
    21 B1 Blue Data input
    22 B2 Blue Data input
    23 B3 Blue Data input
    24 B4 Blue Data input
    25 B5 Blue Data input (MSB).
    26 VSS Ground
    27 DEN Data Enable signal.
    28 VCC Power supply: + 3.3V
    29 VCC Power supply: + 3.3V
    30 R/L Left or Right Display Control.
    31 UD Up/Down Display Control.
    32 NC No connection
    33 VSS Ground
    Products specifications
    Size 5.7"
    Resolution 320x240
    Active Area (mm) 115.20x86.40
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle TN
    Frame No
    Touch Panel Resistive
    O. Temperature (°C) -20~70
    Data Connection ZIF Connector
    Pin Nr. 33
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
