NT068-C001ML

Picture of NT068-C001ML Picture of NT068-C001ML
TFT 6.8'' 480×1280, Bar Type, Interface HDMI, Wide view angle (IPS), 400cd/m², Capacitive touch panel, Standard Temp.



DESCRIPTION



NT068­-C002ML is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light, CTP and HDMI board unit. The 6.86¢¢ display area contains 480 x 1280 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.

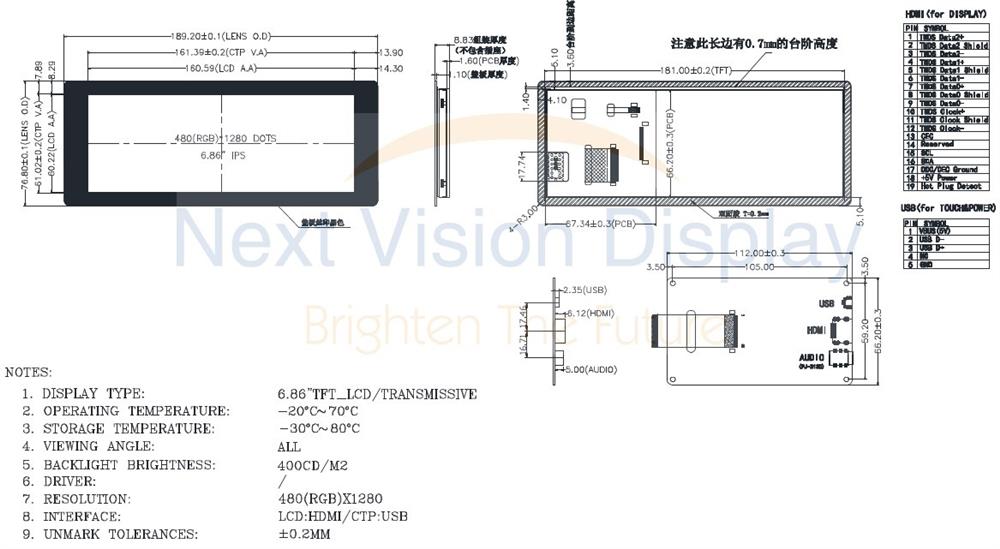

DRAWING



SPECIFICATIONS



Interface Pin Connections

HDMI interface

Pin No.

Symbol

Function

1

TMDS Data2+

Positive side of channel 2 TMDS low-voltage signal differential input pair

2

TMDS

Data2 Shield

Ground

3

TMDS Data2-

Negative side of channel 2 TMDS low-voltage signal differential input pair

4

TMDS Data1+

Positive side of channel 1 TMDS low-voltage signal differential input pair

5

TMDS Data1
Shield

Ground

6

TMDS Data1-

Negative side of channel 1 TMDS low-voltage signal differential input pair

7

TMDS Data0+

Positive side of channel 0 TMDS low-voltage signal differential input pair

8

TMDS Data0
Shield



9

TMDS Data0-

Negative side of channel 0 TMDS low-voltage signal differential input pair

10

TMDS Clock+

Positive side of reference clock. TMDS low-voltage signal differential input pair

11

TMDS Clock
Shield



12

TMDS Clock-

Negative side of reference clock. TMDS low-voltage signal differential input pair

13

CEC

No Connection

14

Reserved(N.C.)

No connection.

15

SCL

DDC SCL

16

SDA

DDC SDA

17

DDC/CEC
Ground

Ground

18

+5V Power

+5V Power

19

Hot Plug Detect

Hot Plug Detect



CTP interface

Pin No

Symbol

Function

1

VUSB

USB Power

2

D-

USB Data-

3

D+

USB Data+

4

NC

NC

5

GND

Power Ground



General Specifications

Item

Contents

Unit

Note

LCD Type

TFT

-



Display color

16.7M





Viewing Direction

ALL

O’Clock



Operating temperature

-20~+70

℃



Storage temperature

-30~+80

℃



Module size

189.20×76.80×8.83

mm



Active Area(W×H)

160.59×60.22

mm



Number of Dots

480×1280

dots



Power Supply Voltage

5.0V

V



Module Interface Type

LCD Display: HDMI interface





CTP Touch: USB interface

-



Backlight

White LED

pcs



Weight

---

g



Module Power consumption

500(MAX)

mA





Absolute Maximum Ratings(Ta=25°C)
Environmental Absolute Maximum Ratings

Item

Storage

Operating

Note
 MIN  MAX  MIN  MAX

Ambient Temperature

-30°C

80°C

-20°C

70°C

1,2

Humidity

-

-

-

-

3



Optical Characteristics

Item

Symbol

Condition



Unit

Note

Brightness

Bp

θ=0°

F=0°

-

400

-

Cd/m2

1

Uniformity

⊿Bp

-

80

-

%

1,2

Viewing
Angle

3:00

Cr≥10

-

80

-

Deg

3

6:00

-

80

-

9:00

-

80

-

12:00

-

80

-

Contrast
Ratio

Cr

θ=0°

F=0°

-

800



-

4

Response
Time

Tr

-

25

40

ms

5

Tf

-

ms

Color of
CIE

Coordinate

W

x

θ=0°

F=0°

0.283

0.313

0.343

-

1,6

y

0.293

0.323

0.353

-

R

x

0.588

0.618

0.648

-

y

0.276

0.306

0.346

-

G

x

0.276

0.306

0.346

-

y

0.497

0.527

0.557

-

B

x

0.109

0.139

0.179

-

y

0.068

0.098

0.128

-

NTSC
Ratio

S

-

60

-

%



SKU: NT068-C001ML
Brand: Next Vision Display
Available: No
Be the first to review this product

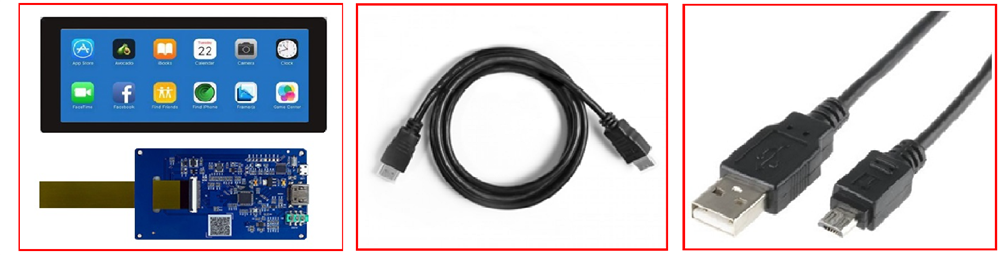

Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€118.00
€100.20
€94.20

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€118.00 excl tax
