NT070-C002DW

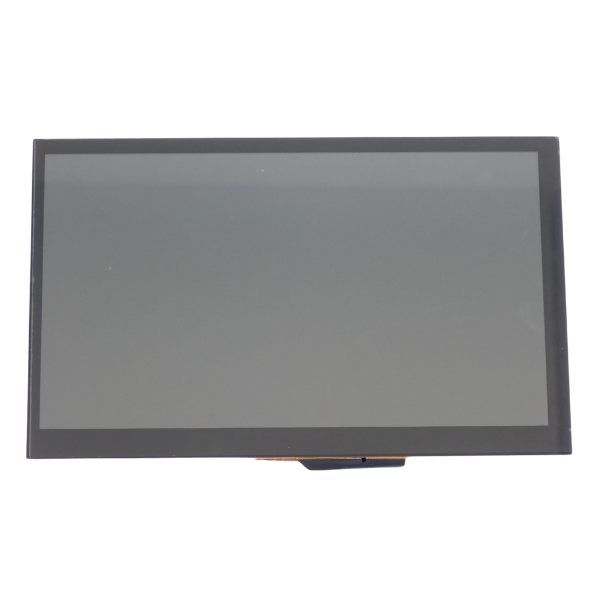

Picture of NT070-C002DW Picture of NT070-C002DW
TFT 7" 1024x600 LCD Panel, Interface RGB, 250cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, GT911 IC)

General Specification

Color 16.7M
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 80/80/80/80(L/R/U/D)
Display Area(A.A) 154.21(W)*85.92(H)
Driver IC HX8282-A11DPD300+HX8696-A01APD300
EK79001HK + EK73215BCGA
Luminance 250cd/m²
LED Numbers 21 LEDS
Interface RGB_24bit 50PIN_0.5mm



Electrical Characteristics

Digital Voltage 3.3V(Typ.)
Forward Voltage 9.3V(Typ.)
Forward Current 140mA
Uniformity(with L/G) 80%



Optical Characteristics

Contrast Ratio 1000:1
Response Time ON=10ms, OFF=15ms



General Specification

Feature Description
Type CTP (Capacitive touch panel)
Structure G+G
Outline Size (mm) 164.6(L)*99.7(W)*1.6(T)
View Area (mm) 154.08(L)*85.92(W)
Control Type GT911
Surface hardness 6H
Light Transmittance ≥85%
Operating Temperature -10~60°C
Storage Temperature -20~70°C

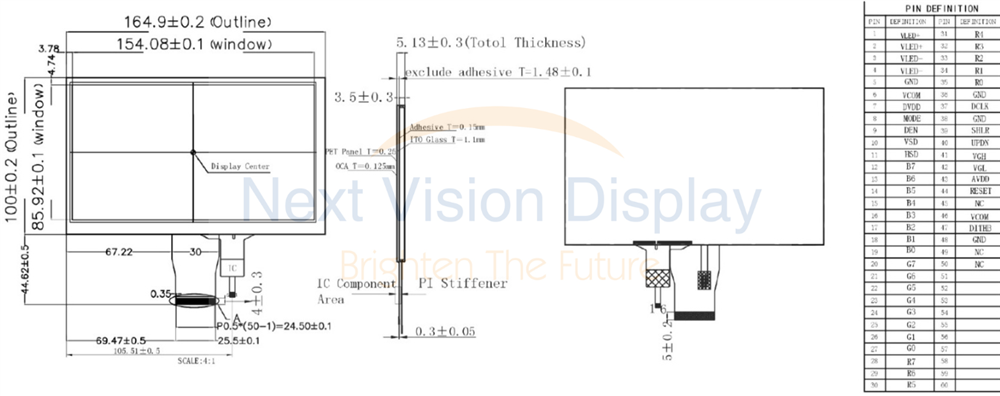

DRAWING

SKU: NT070-C002DW
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€29.30
€25.30
€22.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€29.30 excl tax

General Specification

Color 16.7M
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 80/80/80/80(L/R/U/D)
Display Area(A.A) 154.21(W)*85.92(H)
Driver IC HX8282-A11DPD300+HX8696-A01APD300
EK79001HK + EK73215BCGA
Luminance 250cd/m²
LED Numbers 21 LEDS
Interface RGB_24bit 50PIN_0.5mm



Electrical Characteristics

Digital Voltage 3.3V(Typ.)
Forward Voltage 9.3V(Typ.)
Forward Current 140mA
Uniformity(with L/G) 80%



Optical Characteristics

Contrast Ratio 1000:1
Response Time ON=10ms, OFF=15ms



General Specification

Feature Description
Type CTP (Capacitive touch panel)
Structure G+G
Outline Size (mm) 164.6(L)*99.7(W)*1.6(T)
View Area (mm) 154.08(L)*85.92(W)
Control Type GT911
Surface hardness 6H
Light Transmittance ≥85%
Operating Temperature -10~60°C
Storage Temperature -20~70°C





DRAWING

Products specifications
Brand Next Vision Display
Size 7"
Resolution 1024x600
Active Area (mm) 154.21x85.92
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 7"
Resolution 1024x600
Active Area (mm) 154.21x85.92
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
