NT070-N001DW

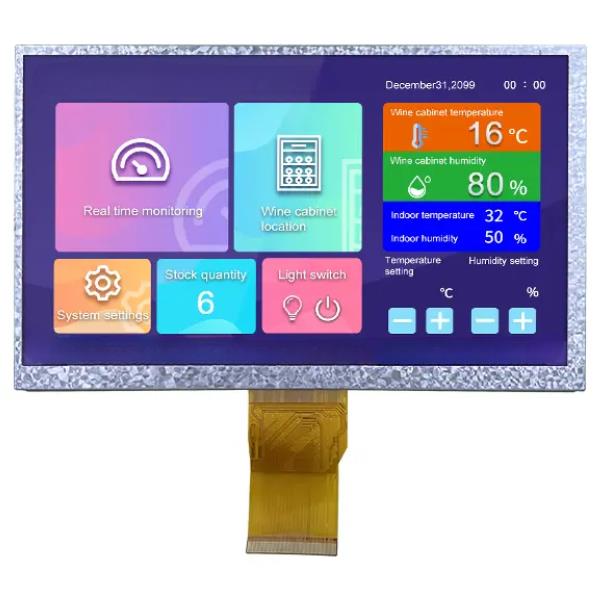

Picture of NT070-N001DW Picture of NT070-N001DW
TFT 7" 1024x600 LCD Panel, Interface RGB, 300cd/m², Wide View Angle (IPS)

General Specifications

Color 16.7M
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 80/80/80/80(L/R/U/D)
Display Area(A.A) 154.21(W)*85.92(H)
Driver IC HX8282-A11DPD300+HX8696-A01APD300
EK79001HK + EK73215BCGA
Luminance 300cd/m²
LED Numbers 21 LEDS
Interface RGB_24bit 50PIN_0.5mm



Electrical Characteristics

Digital Voltage 3.3V(Typ.)
Forward Voltage 9.3V(Typ.)
Forward Current 140mA
Uniformity(with L/G) 80%



Optical Characteristics

Contrast Ratio 1000:1
Response Time ON=10ms, OFF=15ms

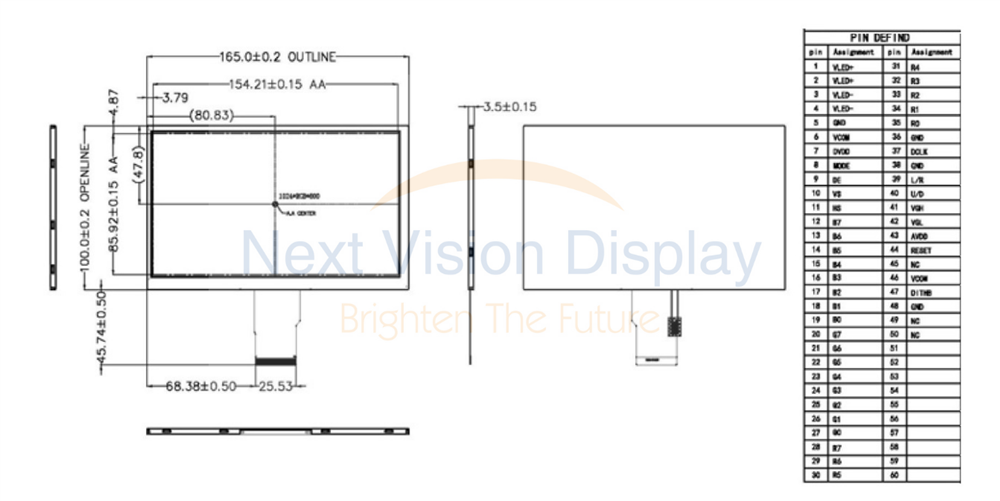

DRAWING

SKU: NT070-N001DW
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€22.50
€19.70
€17.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€22.50 excl tax

General Specifications

Color 16.7M
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 80/80/80/80(L/R/U/D)
Display Area(A.A) 154.21(W)*85.92(H)
Driver IC HX8282-A11DPD300+HX8696-A01APD300
EK79001HK + EK73215BCGA
Luminance 300cd/m²
LED Numbers 21 LEDS
Interface RGB_24bit 50PIN_0.5mm



Electrical Characteristics

Digital Voltage 3.3V(Typ.)
Forward Voltage 9.3V(Typ.)
Forward Current 140mA
Uniformity(with L/G) 80%



Optical Characteristics

Contrast Ratio 1000:1
Response Time ON=10ms, OFF=15ms





DRAWING

Products specifications
Brand Next Vision Display
Size 7"
Resolution 1024x600
Active Area (mm) 154.21x85.92
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 7"
Resolution 1024x600
Active Area (mm) 154.21x85.92
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
