NT156-N001ML

TFT 15.6" 1920x1080, HDMI Interface, 380cd/m², Wide View Angle (IPS), No Touch

DESCRIPTION

The NT156-N001ML model is a Color TFT LCD supplied by Next Vision Display.
This main Module has a 15.6 inch diagonally measured active display area with 1920(RGB)X1080 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes.
The NT156-N001ML has been designed to apply the HDMI interface method that enables low power, high speed, and high contrast.

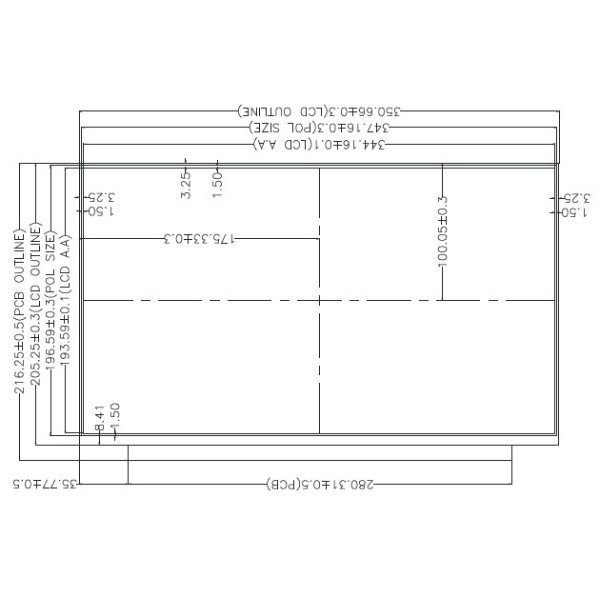

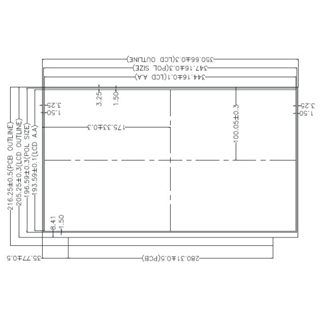

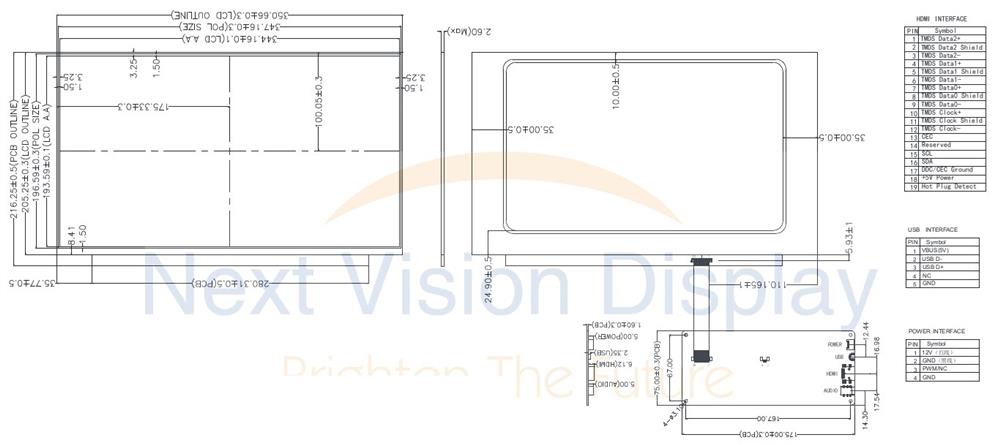

DRAWING

SPECIFICATIONS

Interface Pin Connections

HDMI interface

No.	Symbol	Description
1	TMDS Data2+	Positive side of channel 2. TMDS low-voltage signal differential input pair
2	TMDS Data2 Shield	Ground
3	TMDS Data2-	Negative side of channel 2. TMDS low-voltage signal differential input pair
4	TMDS Dara1+	Positive side of channel 1. TMDS low-voltage signal differential input pair
5	TMDS Data1 Shield	Ground
6	TMDS Data1-	Negative side of channel 1. TMDS low-voltage signal differential input pair
7	TMDS Data0+	Positive side of channel 0. TMDS low-voltage signal differential input pair
8	TMDS Data0 Shield	Ground
9	TMDS Data0-	Negative side of channel 0. TMDS low-voltage signal differential input pair
10	TMDS Clock+	Positive side of refrence clock. TMDS low-voltage signal differential input pair
11	TMDS Clock Shiled	Ground
12	TMDS Clock-	Negative side of reference clock. TMDS low-voltage signal differential input pair
13	CEC	No Connection
14	Reserved (N.C.)	No Connection
15	SCL	DDC SCL
16	SDA	DDC SDA
17	DDC/CEC Ground	Ground
18	+5V Power	+5V Power
19	Hot Plug Detect	Hot Plug Detect

USB TOUCH interface

No.	Symbol	Description
1	VUSB	USB Power(5V)
2	D-	USB Data-
3	D+	USB Data+
4	NC	No connection
5	GND	Power Ground

Mechanical Data

Item	Standard Value	Unit
Display Mode	Normally White, Transmissive LCD	-
Module Dimension	350.66x216.25x2.60	mm
Resolution	1920(RGB)x1080	Pixels
Active Display Area	344.16x193.59	mm
Viewing Angle	Free	-
Gray inversion direction	Free
LED Backlight Color	White	-
Interface	LCD:HDMI	-
Power Supply	External 12V	-
System Support	Win7/Win8/Win10(Plug and play)
System Support	Android/Linux (need to be configured first)

Absolute Maximum Ratings

Item	Min	Typ	Max	Unit	Remark
Operating Temperature	0	-	50	°C
Storage Temperature	-20	-	60	°C
Humidity	-	-	90%	RH	@60°C

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Power Supply Voltage	Power	9.0	12.0	16.0	V
