Pin No.

Symbol

Function

1

LEDK1-4

Power supply for LED Backlight Cathode input

2

LEDA

Power supply for LED Backlight Anode input

3

GND

Signal ground.(0V)

4

RESET

Reset input pin for TFT LCD. When RESET is “L”, initialization is executed.

5

DB17

6

DB16

7

DB15

8

DB14

9

DB13

10

DB12

11

DB11

12

DB10

 Bi-directional data bus

13

DB8

14

DB7

15

DB6

16

DB5

17

DB4

18

DB3

19

DB2

20

DB1

21

RD

Read signal input^,active at Low.

22

WR/SCL

Write signal input^,active at Low.

23

RS

When RS = 0: Command.     When RS = 1: Display data.

24

CS

Chip select signal , Active at ”L”

25

XR

Right side of touch panel.

26

YD

Bottom side of touch panel.

27

XL

Left side of touch panel.

28

YU

Up side of touch panel.

29

GND

Signal ground.(0V)

30

2.8 /VCC

Power supply for the internal logic circuit.

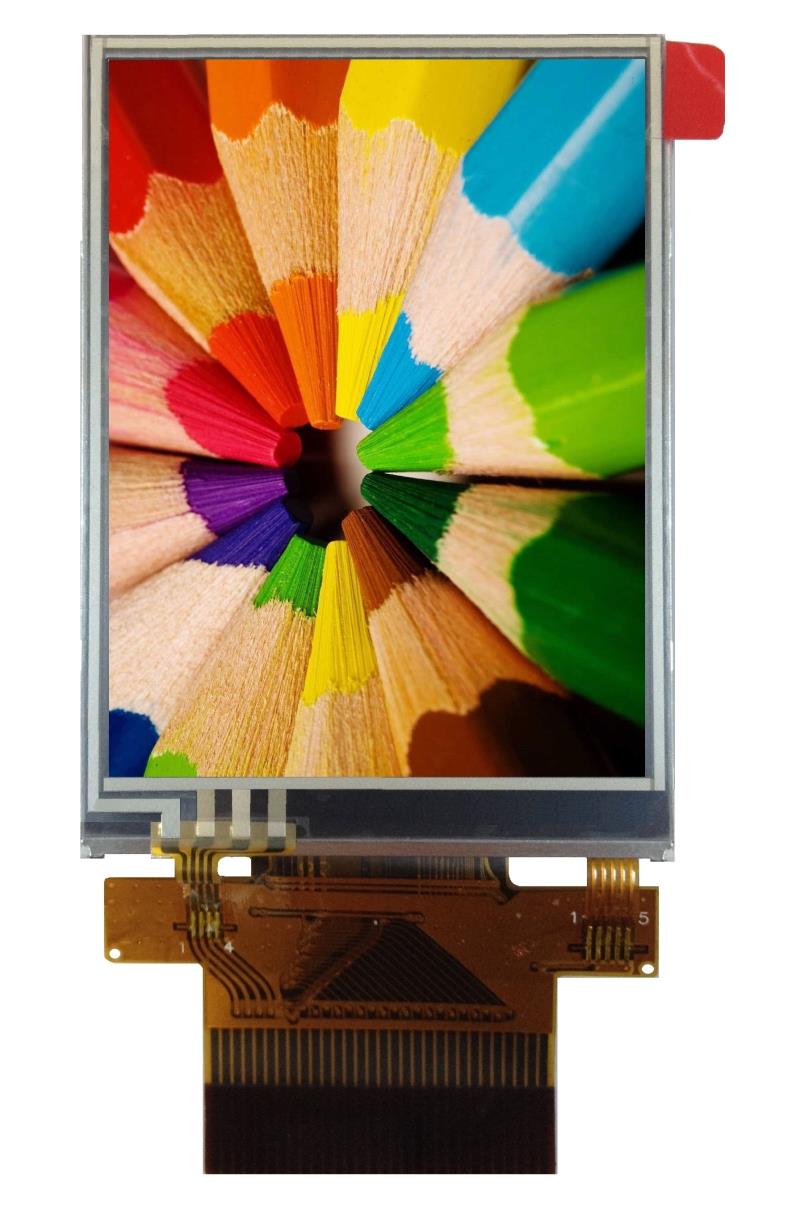

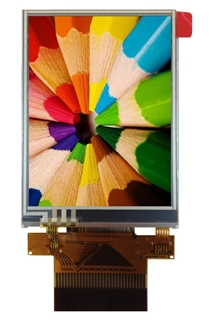

Item

Standard Value

Display Type

240(R、G、B) * 320 Dots

LCD Type

Normally white , Transmissive type

Screen size(inch)

2.8 inch

Viewing Direction

12 O’clock

Color configuration

RGB-Strip

Interface

80-16bit parallel I/F                                                                            II

Other(controller/driver IC)

Sitronix: ST7789VI

ROHS

THIS PRODUCT CONFORMS THE ROHS OF PTC

Item

Standard Value

Unit

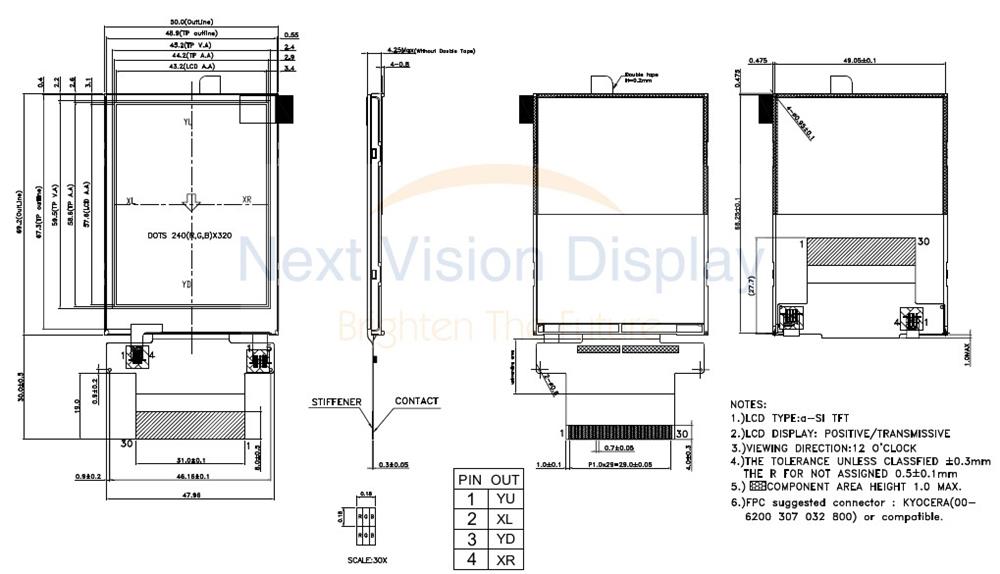

Outline Dimension

50.0(W) * 69.2 (L) * 4.25 (H)max

mm

Item

Standard Value

Unit

Active Area

43.2 (W) * 57.6 (L)

mm
