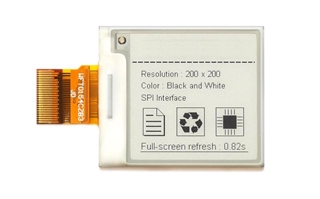

NVE154-200200BSM090#GD

E-paper 1.54'' 200x200, Color Black on White, Interface SPI, Fast refresh (0.82sec full / 0.3sec partial)

DESCRIPTION

The display is a TFT active matrix electrophoretic display, with interface and a reference system design. The 1.54” active area contains 200x200 pixels and has 1-bit white/black full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.



FEATURES

  •          High contrast
  •          High reflectance
  •          Contrast ratio 10:1
  •          Ultra wide viewing angle
  •          Ultra low power consumption
  •          Pure reflective mode
  •          Bi-stable display
  •          Commercial temperature range
  •          Landscape, portrait modes
  •          Antiglare hard-coated front surface
  •          Low current deep sleep mode
  •          On chip display RAM
  •          Waveform stored in On-chip OTP
  •          Serial peripheral interface available
  •          On-chip oscillator
  •          On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
  •          I2C signal master interface to read external temperature sensor
  •          Available in COG package IC thickness 300um
SKU: NVE154-200200BSM090#GD
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€16.90
€14.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€16.90 excl tax

DESCRIPTION

The display is a TFT active matrix electrophoretic display, with interface and a reference system design. The 1.54” active area contains 200x200 pixels and has 1-bit white/black full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.



FEATURES

  •          High contrast
  •          High reflectance
  •          Contrast ratio 10:1
  •          Ultra wide viewing angle
  •          Ultra low power consumption
  •          Pure reflective mode
  •          Bi-stable display
  •          Commercial temperature range
  •          Landscape, portrait modes
  •          Antiglare hard-coated front surface
  •          Low current deep sleep mode
  •          On chip display RAM
  •          Waveform stored in On-chip OTP
  •          Serial peripheral interface available
  •          On-chip oscillator
  •          On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
  •          I2C signal master interface to read external temperature sensor
  •          Available in COG package IC thickness 300um
Products specifications
Brand Next Vision Display
Size 1.54"
Resolution 200x200
Active Area (mm) 27.60x27.60
Dot Size 0.13x0.13
Color Black on White
Display Interface SPI
O. Temperature (°C) 0~50
Display Connection FPC per ZIF Connector
Pin Nr. 24
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 1.54"
Resolution 200x200
Active Area (mm) 27.60x27.60
Dot Size 0.13x0.13
Color Black on White
Display Interface SPI
O. Temperature (°C) 0~50
Display Connection FPC per ZIF Connector
Pin Nr. 24
Preferred - Not Preferred Preferred
