PH128800T008-ZIR

TFT 12.1" 1280x800 LCD Panel, Interface LVDS, Super High Brightness 1800cd/m², Wide View Angle (IPS), Capacitive touch panel USB Interface (GG, ILI2511 IC, OCR Bonding)

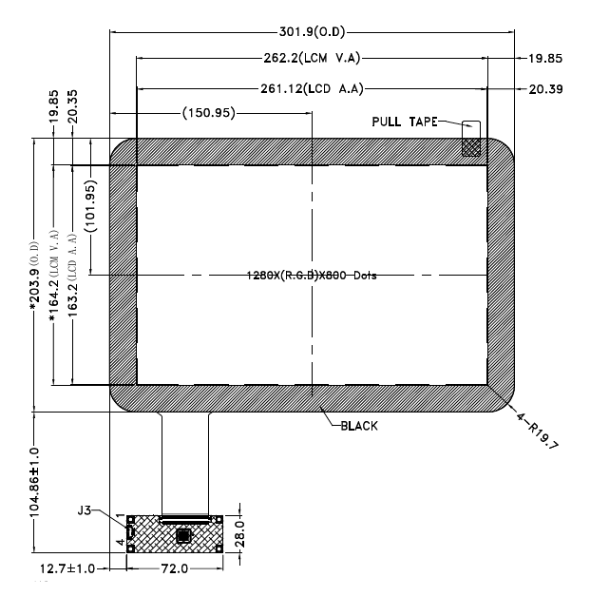

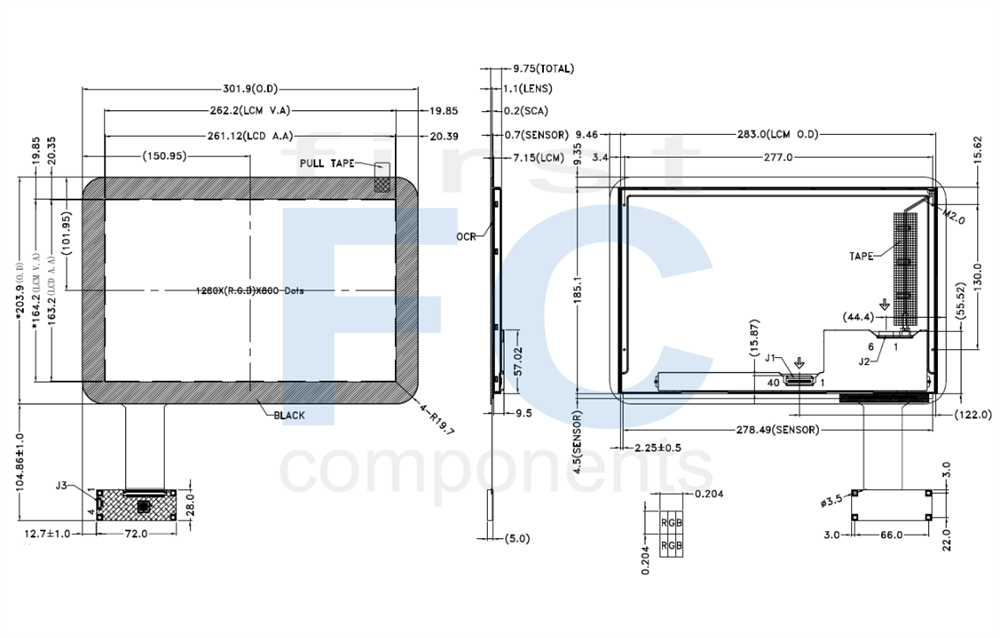

DRAWING

SPECIFICATIONS

General Specifications

Item	Standard Value	Unit
Scren Size	12.1 (Diagonal)
Resolution	1280 * (R G B) * 800 Dots
Display Mode	Full Viewing Angle, Trasmissive, Normally Black
Color	16.7M
Weight	-
Interface	8 bit LVDS
ROHS	THIS PRODUCT CONFORMS THE ROHS OF PTC
Outline Dimension	301.9(W) * 203.9(L) * 11.5(H)	mm
Active Area	261.12(W) * 163.2(L)	mm

Absolute Maximum Ratings

Item	Symbol	Condition	Min	Max	Unit	Remark
Logic Supply Voltage	V_DD	GND=0V	-0.3	+3.6	V	-
Power Supply for Backlight Unit	VLED	LED_GND=0V	-0.3	+18.0	V
Operating Temperature	T_OP (Ts)	Note 1	-20	+70	°C
Storage Temperature	T_ST (Ta)	Note 2	-30	+80	°C
Storage Humidity	H_D	Ta<50°C	-	+80	%RH

Note 1: Ts is the temperature of panel's surface.

Note 2: Ta is the ambient temperature os samples.

DC Electrical Characteristics

Item		Symbol	Condition	Min	Typ	Max	Unit
Power Supply Voltage for LCD Driver		VDD	-	3.0	3.3	3.6	V
Power Supply Voltage for LED Driver		VLED	-	9.0	12.0	24.0	V
Power Supply Current		IDD	VDD=3.3V	-	(130)	-	mA
Power Supply for Backlight		PLED	VBL=12V	-	(15.2)	-	W
PWM Signal Voltage	High	LED_PWM	-	2.6	3.3	5.0	V
PWM Signal Voltage	Low	LED_PWM	-	0	-	0.7	V
Input PWM Frequency		F_PWM	-	600	-	1000	Hz
PWM Duty Ratio		PWM		1		100	%

Interface Pin Description

LCM Interface

Pin No.	Symbol	Description
1	NC	No Connection
2	VDD	Power Supply
3	VDD	Power Supply
4	VDD	Power Supply
5	NC	No Connection
6	GDN	Ground
7	GDN	Ground
8	RIN0-	-LVDS Differential Data Input
9	RIN0+	+LVDS Differential Data Input
10	GND	Ground
11	RIN1-	-LVDS Differential Data Input
12	RIN1+	+LVDS Differential Data Input
13	GND	Ground
14	RIN2-	-LVDS Differential Data Input
15	RIN2+	+LVDS Differential Data Input
16	GND	Ground
17	LVDS_CLK-	-LVDS Differential ClockInput
18	LVDS_CLK+	+LVDS Differential ClockInput
19	GND	Ground
20	RIN3-	-LVDS Differential Data Input
21	RIN3+	+LVDS Differential Data Input
22	GND	Ground
23	NC	No Connection
24	NC	No Connection
25	GND	Ground
26	SDA	Serial data input/output for I2C interface
27	SCL	Clock inout for I2C interface
28	GND	Ground
29	NC	No Connection
30	NC	No Connection
31	GND	Ground
32	GND	Ground
33	GND	Ground
34	NC	No Connection
35	NC	No Connection
36	NC	No Connection
37	NC	No Connection
38	NC	No Connection
39	NC	No Connection
40	NC	No Connection

CTP Interface

Pin No.	Symbol	Description
1	VDD	Power Supply for CTP
2	D-	USB_N for CTP
3	D+	USB_P for CTP
4	GND	Ground

CN1: LED Backlight Interface

Pin No.	Symbol	Description
1	VLED	Power Supply for LED Backlight driving
2	VLED	Power Supply for LED Backlight driving
3	EN	LED Backlight enable
4	ADJ	LED Backlight PWM control signal for dimming
5	GND	Ground
6	GND	Ground
