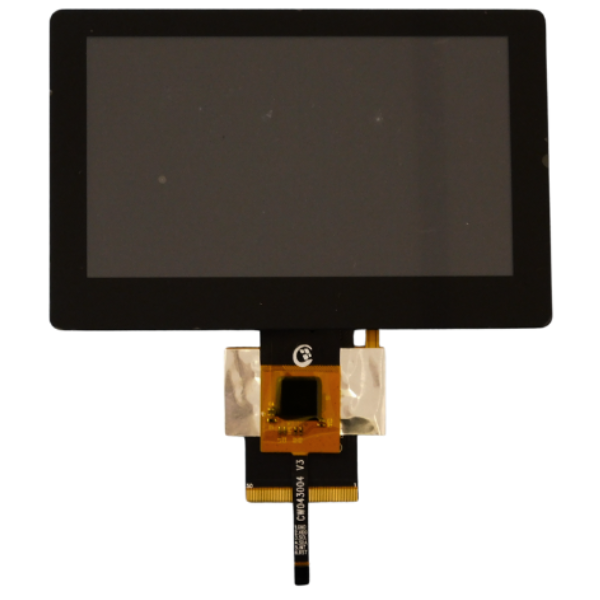

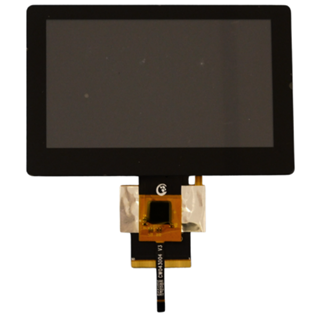

PH480272T016-ZHC

TFT 4.3" 480x272 LCD Panel, Interface RGB, High Brightness 800cd/m², Wide view angle (IPS), Capacitive touch panel I2C interface (GG, HY4635 IC)

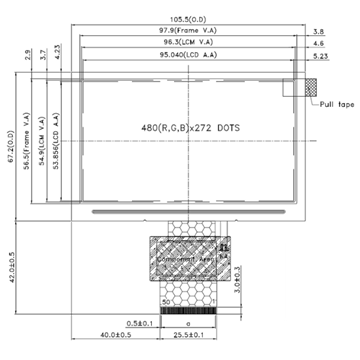

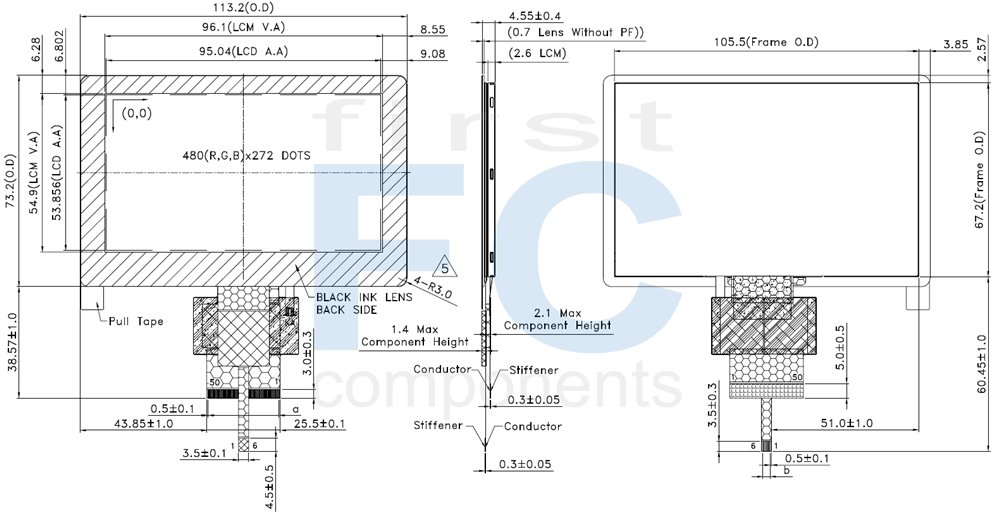

DRAWING

SPECIFICATIONS

Interface Pin Description

Pin No.	Symbol	Function
1	GND	Power ground
2	VDD	Power for Digital Circuit
3	VDD	Power for Digital Circuit
4	VCC	Power For LED Backlight
5	VCC	Power For LED Backlight
6	PWM	Shutdown & Dimming control input for backlight. Do not allow this pin to float. "Hi"=100%, "Low"=0%
7	GND	Power ground
8	R0	Red Data
9	R1	Red Data
10	R2	Red Data
11	R3	Red Data
12	GND	Power ground
13	R4	Red Data
14	R5	Red Data
15	R6	Red Data
16	R7	Red Data
17	GND	Power ground
18	G0	Green Data
19	G1	Green Data
20	G2	Green Data
21	G3	Green Data
22	GND	Power ground
23	G4	Green Data
24	G5	Green Data
25	G6	Green Data
26	G7	Green Data
27	GND	Power ground
28	B0	Blue Data
29	B1	Blue Data
30	B2	Blue Data
31	B3	Blue Data
32	GND	Power ground
33	B4	Blue Data
34	B5	Blue Data
35	B6	Blue Data
36	B7	Blue Data
37	GND	Power ground
38	HS	Line synchronization signal. Horizontal Sync Input
39	VS	Frame synchronization signal. Vertical Sync Input
40	GND	Power ground
41	DE	Data Enable
42	GND	Power ground
43	DCLK	Sample clock. Data will be latched at the rising edge of DCLK
44	GND	Power ground
45	CS/ID1	Serial communication chip selection/ID[4:1]. These pins selec LCM type.
46	SDIN/ID2	Serial communication data/ID[4:1]. These pins selec LCM type.
47	SCK/ID3	Serial communication clock/ID[4:1]. These pins selec LCM type.
48	DISPLAY CONTROL/ID4	Display Enable (Hi Active)/ID[4:1]. These pins selec LCM type.
49	/RESET	Global Reset (Low Active)
50	GND	Power ground

Touch Panel Driving

Pin No.	Symbol	Function
1	GND	Ground
2	TPVDD	Power Supply Voltage (3.3V)
3	SCL	I2C Clock
4	SDA	I2C Data
5	INT	Active Low
6	RESET	Active Low global reset signal input

General Specification

Item	Standard Value
Display Type	480 x 3(RGB) x 272 Dots
Module dimension	113.2(W) × 73.2(L) × 4.55(H)
Active Area	95.04(W) × 53.856(L)
LCD Type	Full Viewing Angle, Normally Black, Transmissive type
Screen size (inch)	4.3 inch
Surface treatment	Anti-Glare
Color Configuration	R.G.B. Vertical Stripe
Weight	66.5 g
Interface	Parallel RGB (Data), SPI (Configuration)
Driver IC	SC7283-G4
Touch type	Projective capacitive touch panel
Output interface	I2C
IC	HY4635
ROHS	This product conforms the RoHS of PTC

Absolute Maximum Ratings

Parameter	Symbol	Condition	Min	Max	Unit
Power Supply for TFT Panel	VDD	GND=0	-0.3	4.0	V
Power Supply for Backlight Unit	VCC	GND=0	-0.3	+20.0	V
Operating Temperature	T_OP(Ts)	Note 1	-20	70	°C
Storage Temperature	T_ST(Ta)	Note 2	-30	80	°C

Note 1: Ts is the temperature of panel's surface.

Note 2: Ta is the ambient temperature of samples.

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Power Supply for TFT Panel	VDD	GND=0V	3.0	3.3	3.6	V
Power Supply for Backlight Unit	VCC	GND=0V	5	12	15	V
Input Voltage for TFT Panel	V_IH	GND=0V	0.7VDD	-	VDD	V
Input Voltage for TFT Panel	V_IL	GND=0V	0	－	0.3VDD	V
Supply Current for TFT Panel	IDD	IDD@VDD=3.3V	-	30	45	mA
Supply Current for Backlight Unit	ICC	ICC@VCC=5V	-	170	225
Supply Current for Backlight Unit	ICC	ICC@VCC=12V	-	70	105
Input Voltage for PWM Signal	VPH	GND=0V	1.2	-	-	V
Input Voltage for PWM Signal	VPL	GND=0V	-	-	0.4	V
Dimming Clock Rate	fP	GND=0V	5	-	100	KHz

GND=0V, Ta=25°C

SKU: PH480272T016-ZHC

Brand: Powertip

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector
Touch-Panel Connector

Price Breaks

Quantity

10+

25+

Price

€46.10

€39.80

€35.50

€34.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€46.10 excl tax

Overview
Specifications
Download
Contact Us

DRAWING

SPECIFICATIONS

Interface Pin Description

Pin No.	Symbol	Function
1	GND	Power ground
2	VDD	Power for Digital Circuit
3	VDD	Power for Digital Circuit
4	VCC	Power For LED Backlight
5	VCC	Power For LED Backlight
6	PWM	Shutdown & Dimming control input for backlight. Do not allow this pin to float. "Hi"=100%, "Low"=0%
7	GND	Power ground
8	R0	Red Data
9	R1	Red Data
10	R2	Red Data
11	R3	Red Data
12	GND	Power ground
13	R4	Red Data
14	R5	Red Data
15	R6	Red Data
16	R7	Red Data
17	GND	Power ground
18	G0	Green Data
19	G1	Green Data
20	G2	Green Data
21	G3	Green Data
22	GND	Power ground
23	G4	Green Data
24	G5	Green Data
25	G6	Green Data
26	G7	Green Data
27	GND	Power ground
28	B0	Blue Data
29	B1	Blue Data
30	B2	Blue Data
31	B3	Blue Data
32	GND	Power ground
33	B4	Blue Data
34	B5	Blue Data
35	B6	Blue Data
36	B7	Blue Data
37	GND	Power ground
38	HS	Line synchronization signal. Horizontal Sync Input
39	VS	Frame synchronization signal. Vertical Sync Input
40	GND	Power ground
41	DE	Data Enable
42	GND	Power ground
43	DCLK	Sample clock. Data will be latched at the rising edge of DCLK
44	GND	Power ground
45	CS/ID1	Serial communication chip selection/ID[4:1]. These pins selec LCM type.
46	SDIN/ID2	Serial communication data/ID[4:1]. These pins selec LCM type.
47	SCK/ID3	Serial communication clock/ID[4:1]. These pins selec LCM type.
48	DISPLAY CONTROL/ID4	Display Enable (Hi Active)/ID[4:1]. These pins selec LCM type.
49	/RESET	Global Reset (Low Active)
50	GND	Power ground

Touch Panel Driving

Pin No.	Symbol	Function
1	GND	Ground
2	TPVDD	Power Supply Voltage (3.3V)
3	SCL	I2C Clock
4	SDA	I2C Data
5	INT	Active Low
6	RESET	Active Low global reset signal input

General Specification

Item	Standard Value
Display Type	480 x 3(RGB) x 272 Dots
Module dimension	113.2(W) × 73.2(L) × 4.55(H)
Active Area	95.04(W) × 53.856(L)
LCD Type	Full Viewing Angle, Normally Black, Transmissive type
Screen size (inch)	4.3 inch
Surface treatment	Anti-Glare
Color Configuration	R.G.B. Vertical Stripe
Weight	66.5 g
Interface	Parallel RGB (Data), SPI (Configuration)
Driver IC	SC7283-G4
Touch type	Projective capacitive touch panel
Output interface	I2C
IC	HY4635
ROHS	This product conforms the RoHS of PTC

Absolute Maximum Ratings

Parameter	Symbol	Condition	Min	Max	Unit
Power Supply for TFT Panel	VDD	GND=0	-0.3	4.0	V
Power Supply for Backlight Unit	VCC	GND=0	-0.3	+20.0	V
Operating Temperature	T_OP(Ts)	Note 1	-20	70	°C
Storage Temperature	T_ST(Ta)	Note 2	-30	80	°C

Note 1: Ts is the temperature of panel's surface.

Note 2: Ta is the ambient temperature of samples.

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Power Supply for TFT Panel	VDD	GND=0V	3.0	3.3	3.6	V
Power Supply for Backlight Unit	VCC	GND=0V	5	12	15	V
Input Voltage for TFT Panel	V_IH	GND=0V	0.7VDD	-	VDD	V
Input Voltage for TFT Panel	V_IL	GND=0V	0	－	0.3VDD	V
Supply Current for TFT Panel	IDD	IDD@VDD=3.3V	-	30	45	mA
Supply Current for Backlight Unit	ICC	ICC@VCC=5V	-	170	225
Supply Current for Backlight Unit	ICC	ICC@VCC=12V	-	70	105
Input Voltage for PWM Signal	VPH	GND=0V	1.2	-	-	V
Input Voltage for PWM Signal	VPL	GND=0V	-	-	0.4	V
Dimming Clock Rate	fP	GND=0V	5	-	100	KHz

GND=0V, Ta=25°C

Products specifications

Brand	Powertip
Size	4.3"
Resolution	480x272
Active Area (mm)	95.04x53.85
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	Capacitive
O. Temperature (°C)	-20~70
Display Connection	FPC for ZIF Connector
Pin Nr.	50
Pin Pitch	0.5mm
Touch Panel IC Controller	HY4635
Preferred - Not Preferred	Preferred
