PH800480T030-ZHR06

TFT 5" 800x480 LCD Panel, Interface RGB, High Brightness 850cd/m², Wide view angle (IPS), Capacitive touch panel I2C interface (GG, HY4635 IC), 3mm Cover Lens with Optical Bonding (OCR)

DESCRIPTION

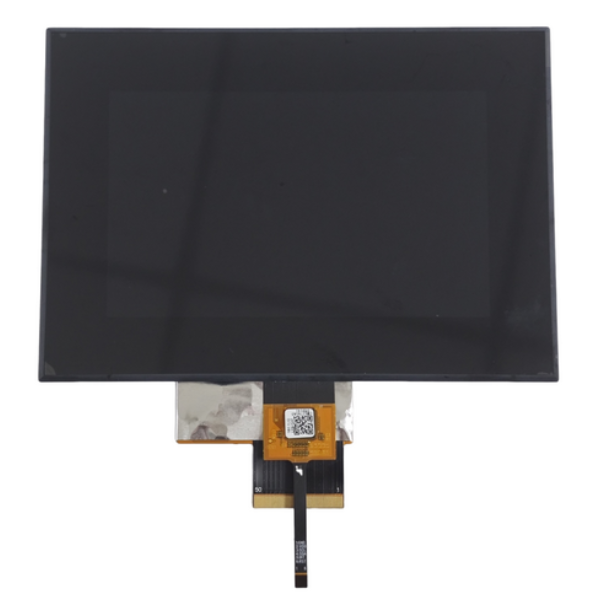

PH800480T030-ZHR06 is 5-inch display, featuring IPS /with V com, BL power, high brightness, 3mm cover lens/OCR bonding.

Perfect for outdoor application, such as EV charger, measurement device, drone controller and solar energy controller.

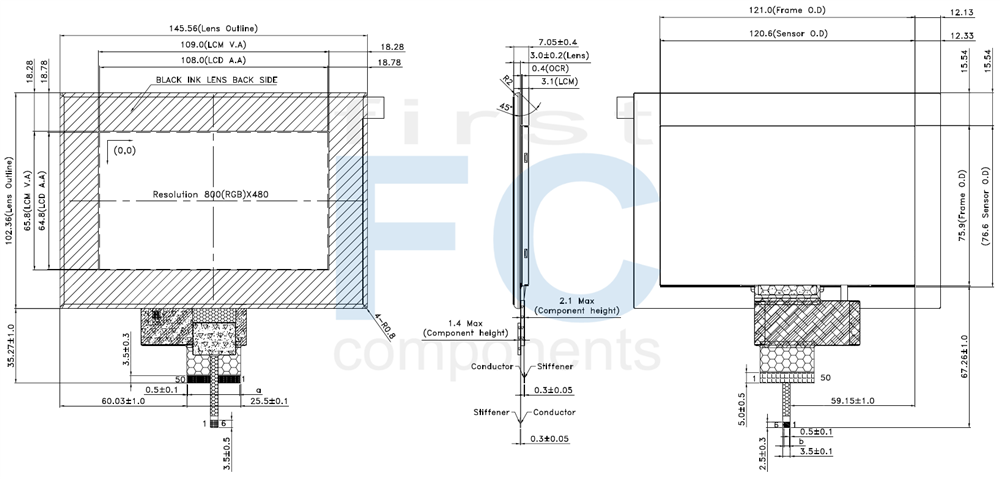

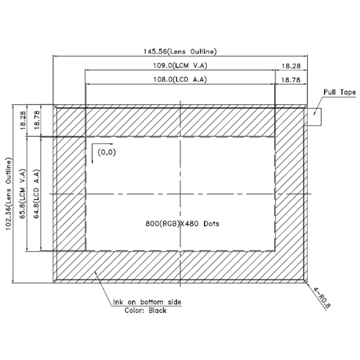

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin
Number		SymbolFunction
1 GND Power ground
2 VDD Power for Digital Circuit
3 VDD Power for Digital Circuit
4 VCC Power for LED backlight
5 VCC Power for LED backlight
6 PWM Shutdown & Dimming control input for backlight- Do not allow this pin to float. "Hi"=100%, "Low"=0%.
7 GND Power ground
8 R0 Red Data
9 R1

Red Data
10 R2 Red Data
11 R3 Red Data
12 GND Power ground
13 R4

Red Data
14 R5 Red Data
15 R6 Red Data
16 R7 Red Data
17 GND Power ground
18 G0 Green Data
19 G1 Green Data
20 G2 Green Data
21 G3 Green Data
22 GND Power ground
23 G4 Green Data
24 G5 Green Data
25 G6 Green Data
26 G7 Green Data
27 GND Power ground
28 B0 Blue Data
29 B1 Blue Data
30 B2

Blue Data
31 B3 Blue Data
32 GND Power ground
33 B4 Blue Data
34 B5 Blue Data
35 B6 Blue Data
36 B7 Blue Data
37 GND Power ground
38 HS Line synchronization signal. Horizontal Sync Input.
39 VS Frame synchronization signal. Vertical Sync Input.
40 GND Power ground
41 DE Data Enable
42  GND Power ground
43  DCLK Sample clock- Data will be latched at the falling edge of DCLK.
44  GND Power ground
45  CS/ID1  Serial communication chip selection/ID[4:1]. These pins select LCM type.
46  SDIN/ID2  Serial communication data/ID[4:1]. These pins select LCM type.
47  SCK/ID3  Serial communication clock/ID[4:1]. These pins select LCM type.
48  DISPLAY CONTROL/ID4  Display Enable(Hi Active) / ID [4:1]. These pins select LCM type.
49  /RESET  Global Reset (Low Active)
50  GND   Power ground



Capacitive Touch Panel (CTP) Interface

Pin
Number		SymbolFunction
1 GND Touch Panel Ground
2 TPVDD Power Supply Voltage (3.3V)
3 SCL I2C Clock
4 SDA I2C Data
5 IMT The interrupt the CTP to the Host
6 RST RESET



General Specification

ItemDimensionUnit
Display Type 800 × 3(RGB) x 480 Dots －
Module dimension 145.56(W) × 102.36(L) × 7.3(H) mm
Active Area 108.0(W) × 64.8(L) mm
LCD Type Full Viewing Angle, Normally Black, Transmissive type
Screen size (inch) 5.0 inch
Color configuration RGB Vertical Strip
Display Interface Parallel RGB (Data), SPI (Configuration)
Optical Type OCR
ROHS This product conforms the RoHS of PTC



Absolute Maximum Ratings

ParameterSymbolConditionMinMaxUnit
Power Supply for TFT Panel VDD GND=0 -0.3 4.5 V
Power Supply for Backlight Unit Vin GND=0 -0.3 +20.0 V
Operating Temperature TOP (Ts) Note 1 -20 70 °C
Storage Temperature TST (Ta) Note 2 -30 80 °C
Storage Humidity HD Ta≤60°C 10 90 %

Note 1: Ts is the temperature of panel's surface.

Note 2: Ta is the ambient temperature of samples.



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Power Supply for TFT Panel VDD GND=0V 3.0 3.3 3.6 V
Power Supply for Backlight Unit VCC GND=0V 5 12 15 V
Input Voltage for TFT Panel VIH GND=0V 0.7VDD - VDD V
VIL GND=0V 0 － 0.3VDD
Supply Current for TFT Panel IDD IDD@VDD=3.3V - (75) (110) mA
Supply Current for Backlight Unit ICC ICC@VCC=5V - (250) (380)
Supply Current for Backlight Unit ICC ICC@VCC=12V - (110) (160)
Input Voltage for PWM Signal VPH GND=0V 1.2 - - V
VPL GND=0V - - 0.4 V
Dimming Clock Rate fP GND=0V 5 - 100 KHz

GND=0V, Ta=25°C

SKU: PH800480T030-ZHR06
Brand: Powertip
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€68.00
€62.40
€59.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€68.00 excl tax

DESCRIPTION

PH800480T030-ZHR06 is 5-inch display, featuring IPS /with V com, BL power, high brightness, 3mm cover lens/OCR bonding.

Perfect for outdoor application, such as EV charger, measurement device, drone controller and solar energy controller.



DRAWING



SPECIFICATIONS

Interface Pin Function

Pin
Number		SymbolFunction
1 GND Power ground
2 VDD Power for Digital Circuit
3 VDD Power for Digital Circuit
4 VCC Power for LED backlight
5 VCC Power for LED backlight
6 PWM Shutdown & Dimming control input for backlight- Do not allow this pin to float. "Hi"=100%, "Low"=0%.
7 GND Power ground
8 R0 Red Data
9 R1

Red Data
10 R2 Red Data
11 R3 Red Data
12 GND Power ground
13 R4

Red Data
14 R5 Red Data
15 R6 Red Data
16 R7 Red Data
17 GND Power ground
18 G0 Green Data
19 G1 Green Data
20 G2 Green Data
21 G3 Green Data
22 GND Power ground
23 G4 Green Data
24 G5 Green Data
25 G6 Green Data
26 G7 Green Data
27 GND Power ground
28 B0 Blue Data
29 B1 Blue Data
30 B2

Blue Data
31 B3 Blue Data
32 GND Power ground
33 B4 Blue Data
34 B5 Blue Data
35 B6 Blue Data
36 B7 Blue Data
37 GND Power ground
38 HS Line synchronization signal. Horizontal Sync Input.
39 VS Frame synchronization signal. Vertical Sync Input.
40 GND Power ground
41 DE Data Enable
42  GND Power ground
43  DCLK Sample clock- Data will be latched at the falling edge of DCLK.
44  GND Power ground
45  CS/ID1  Serial communication chip selection/ID[4:1]. These pins select LCM type.
46  SDIN/ID2  Serial communication data/ID[4:1]. These pins select LCM type.
47  SCK/ID3  Serial communication clock/ID[4:1]. These pins select LCM type.
48  DISPLAY CONTROL/ID4  Display Enable(Hi Active) / ID [4:1]. These pins select LCM type.
49  /RESET  Global Reset (Low Active)
50  GND   Power ground



Capacitive Touch Panel (CTP) Interface

Pin
Number		SymbolFunction
1 GND Touch Panel Ground
2 TPVDD Power Supply Voltage (3.3V)
3 SCL I2C Clock
4 SDA I2C Data
5 IMT The interrupt the CTP to the Host
6 RST RESET



General Specification

ItemDimensionUnit
Display Type 800 × 3(RGB) x 480 Dots －
Module dimension 145.56(W) × 102.36(L) × 7.3(H) mm
Active Area 108.0(W) × 64.8(L) mm
LCD Type Full Viewing Angle, Normally Black, Transmissive type
Screen size (inch) 5.0 inch
Color configuration RGB Vertical Strip
Display Interface Parallel RGB (Data), SPI (Configuration)
Optical Type OCR
ROHS This product conforms the RoHS of PTC



Absolute Maximum Ratings

ParameterSymbolConditionMinMaxUnit
Power Supply for TFT Panel VDD GND=0 -0.3 4.5 V
Power Supply for Backlight Unit Vin GND=0 -0.3 +20.0 V
Operating Temperature TOP (Ts) Note 1 -20 70 °C
Storage Temperature TST (Ta) Note 2 -30 80 °C
Storage Humidity HD Ta≤60°C 10 90 %

Note 1: Ts is the temperature of panel's surface.

Note 2: Ta is the ambient temperature of samples.



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Power Supply for TFT Panel VDD GND=0V 3.0 3.3 3.6 V
Power Supply for Backlight Unit VCC GND=0V 5 12 15 V
Input Voltage for TFT Panel VIH GND=0V 0.7VDD - VDD V
VIL GND=0V 0 － 0.3VDD
Supply Current for TFT Panel IDD IDD@VDD=3.3V - (75) (110) mA
Supply Current for Backlight Unit ICC ICC@VCC=5V - (250) (380)
Supply Current for Backlight Unit ICC ICC@VCC=12V - (110) (160)
Input Voltage for PWM Signal VPH GND=0V 1.2 - - V
VPL GND=0V - - 0.4 V
Dimming Clock Rate fP GND=0V 5 - 100 KHz

GND=0V, Ta=25°C

Products specifications
Brand Powertip
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive (Optical Bonding)
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Touch Panel IC Controller HY4635
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Powertip
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive (Optical Bonding)
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Touch Panel IC Controller HY4635
Preferred - Not Preferred Preferred
