PH800480T032-ZHA

TFT 7" 800x480 LCD Panel, Interface RGB, High Brightness 1000cd/m², Wide View Angle (IPS), No touch, V-Com, B/L Power on FPC

DESCRIPTION

PH800480T032-ZHA is a 7-inch display, featuring IPS /with V com, BL power, high brightness.

Perfect for outdoor application, such as EV charger, measurement device, drone controller and solar energy controller.

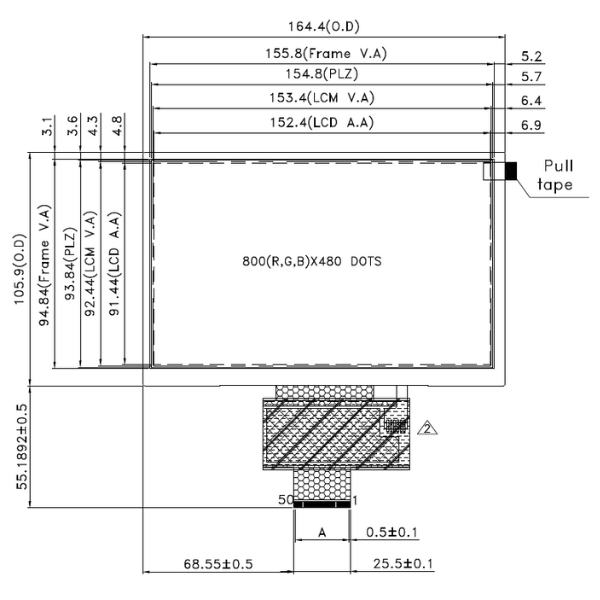

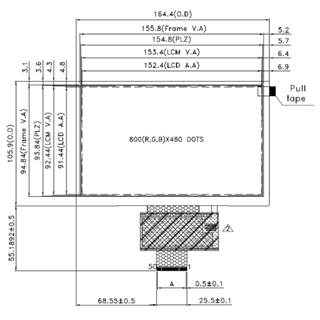

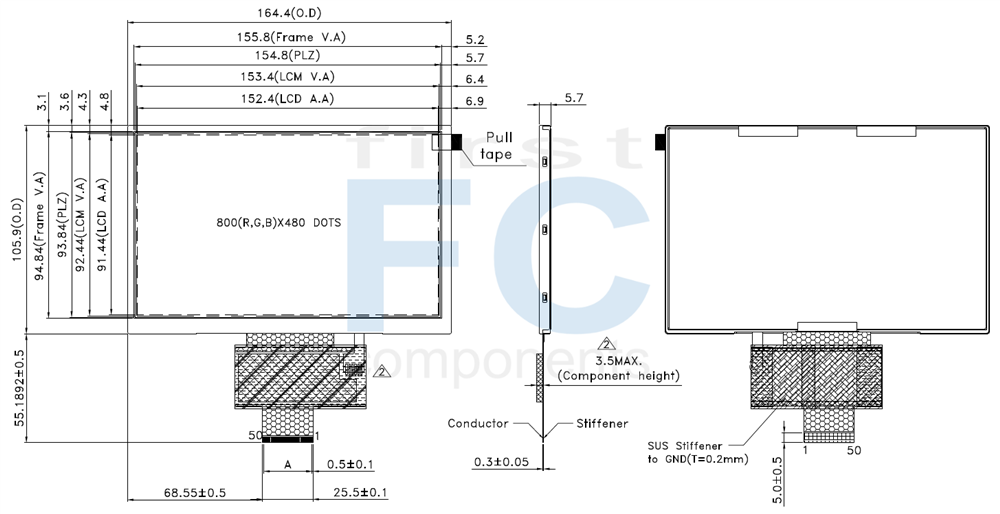

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin Number	Symbol	Function
1	GND	Power ground
2	VDD	Power for Digital Circuit
3	VDD	Power for Digital Circuit
4	VCC	Power for LED backlight
5	VCC	Power for LED backlight
6	PWM	Shutdown & Dimming control input for backlight- Do not allow this pin to float. "Hi"=100%, "Low"=0%.
7	GND	Power ground
8	R0	Red Data
9	R1	Red Data
10	R2	Red Data
11	R3	Red Data
12	GND	Power ground
13	R4	Red Data
14	R5	Red Data
15	R6	Red Data
16	R7	Red Data
17	GND	Power ground
18	G0	Green Data
19	G1	Green Data
20	G2	Green Data
21	G3	Green Data
22	GND	Power ground
23	G4	Green Data
24	G5	Green Data
25	G6	Green Data
26	G7	Green Data
27	GND	Power ground
28	B0	Blue Data
29	B1	Blue Data
30	B2	Blue Data
31	B3	Blue Data
32	GND	Power ground
33	B4	Blue Data
34	B5	Blue Data
35	B6	Blue Data
36	B7	Blue Data
37	GND	Power ground
38	HS	Line synchronization signal. Horizontal Sync Input.
39	VS	Frame synchronization signal. Vertical Sync Input.
40	GND	Power ground
41	DE	Data Enable.
42	GND	Power ground
43	DCLK	Sample clock- Data will be latched at the falling edge of DCLK.
44	GND	Power ground
45	CS/ID1	Serial communication chip selection/ID(4:1)These pins select LCM type. See NOTE1
46	SDIN/ID2	Serial communication data/ID(4:1)These pins select select LCM type. See NOTE1
47	SCK/ID3	Serial communication data./ID(4:1)These pins select select LCM type. See NOTE1
48	DISPLAY CONTROL/ID4	Display Enable(Hi Active) / ID [4:1]. These pins select LCM type. See NOTE1
49	/RESET	Global Reset (Low Active)
50	GND	Power ground

Note1:

ID Pins Definition:

	PIN 45 ID1	PIN 46 ID2	PIN 47 ID3	PIN 48 ID3
3.5'' Module	X	0	0	X
4.3'' Module	X	1	0	X
5.0'' Module	X	0	1	X
7.0'' Module	X	1	1	X

1. Resistor = 10k ohm

2. "X" = No use

General Specification

Item	Standard Value
Display Resolutions	800 × 3(RGB) x 480 Dots
LCD Type	IPS, Normally Black, Transmissive type
Screen size (inch)	7.0 inch
Surface treatment	Anti-Glare
Color configuration	RGB Vertical Strip
Driver IC	Himax --- HX8249-A02 Himax --- HX8678-C
Weight	186 g
Interface	Parallel RGB (Data), Spi (Configuration)
ROHS	This product conforms the RoHS of PTC

Absolute Maximum Ratings

Parameter	Symbol	Condition	Min	Max	Unit
Power Supply for TFT Panel	VDD	GND=0	-0.3	+3.96	V
Power Supply for Backlight Unit	VCC	GND=0	-0.3	+20	V
Operating Temperature	T_{OP (Ts)}	Note 1	-20	+70	°C
Storage Temperature	T_ST(Ta)	Note 2	-30	+80	°C

Note 1. Ts is the tempeature of panel's surface

Note 2: Ta is the ambient temperature of samples

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Power Supply for TFT Panel	VDD	GND=0V	3.0	3.3	3.6	V
Power Supply for Backlight Unit	VCC	GND=0V	5	12	15	V
Input Voltage for TFT Panel	V_IH	GND=0V	0.7VDD	-	VDD	V
Input Voltage for TFT Panel	V_IL	GND=0V	0	－	0.3VDD	V
Supply Current for TFT Panel	IDD	IDD@VDD=3.3V	-	30	45	mA
Supply Current for Backlight Unit	IDD	Full screen white	-	-	450	mA
Supply Current for Backlight Unit	ICC	ICC@VCC=5V	-	0.8	1.2	a
Supply Current for Backlight Unit	ICC	ICC@VCC=12V	-	0.3	0.45	a
Input Voltage for PWM Signal	VIH	GND=0V	1.2	-	-	V
Input Voltage for PWM Signal	VPL	GND=0V	-	-	0.4	V
Dimming Clock Rate	fP	GND=0V	0.1	-	8	KHz
