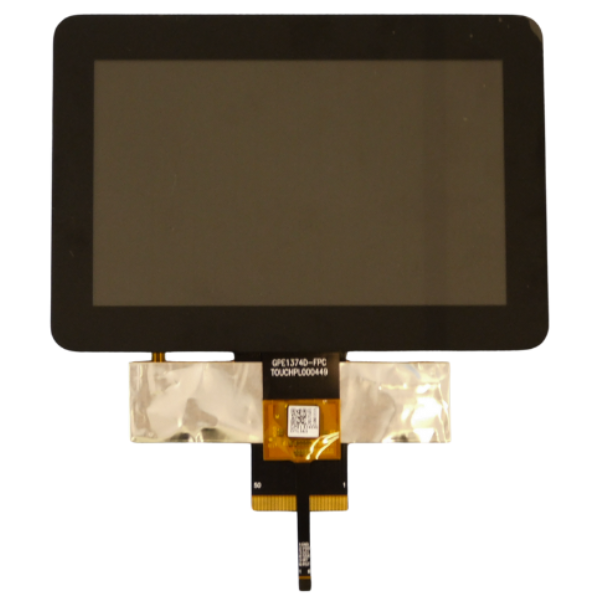

PH800480T033-IHC07

TFT 5" 800x480 LCD Panel, Interface RGB, High Brightness 850cd/m², Capacitive touch panel I2C interface (GG, HY4635 IC), V-Com, B/L Power on FPC

DESCRIPTION

PH800480T033-IHC07 is 5-inch display, featuring IPS /with V com, BL power, high brightness, 3mm cover lens/OCR bonding.

Perfect for outdoor application, such as EV charger, measurement device, drone controller and solar energy controller.

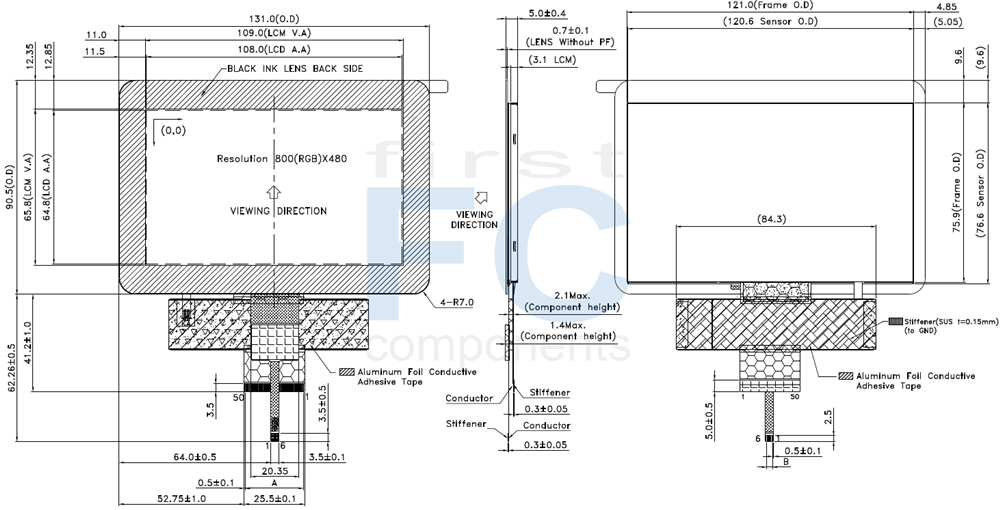

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin
Number		SymbolFunction
1 GND Power ground
2 VDD Power for Digital Circuit
3 VDD Power for Digital Circuit
4 VCC Power for LED backlight
5 VCC Power for LED backlight
6 PWM Shutdown & Dimming control input for backlight- Do not allow this pin to float. "Hi"=100%, "Low"=0%.
7 GND Power ground
8 R0 Red Data
9 R1

Red Data
10 R2 Red Data
11 R3 Red Data
12 GND Power ground
13 R4

Red Data
14 R5 Red Data
15 R6 Red Data
16 R7 Red Data
17 GND Power ground
18 G0 Green Data
19 G1 Green Data
20 G2 Green Data
21 G3 Green Data
22 GND Power ground
23 G4 Green Data
24 G5 Green Data
25 G6 Green Data
26 G7 Green Data
27 GND Power ground
28 B0 Blue Data
29 B1 Blue Data
30 B2

Blue Data
31 B3 Blue Data
32 GND Power ground
33 B4 Blue Data
34 B5 Blue Data
35 B6 Blue Data
36 B7 Blue Data
37 GND Power ground
38 HS Line synchronization signal. Horizontal Sync Input.
39 VS Frame synchronization signal. Vertical Sync Input.
40 GND Power ground
41 DE Display enable pin from controller. Data Input Enable.
42  GND Power ground
43  DCLK Sample clock- Data will be latched at the falling edge of DCLK.
44  GND Power ground
45  CS/ID1  No Function./ID(4:1)These pins select select LCM type. See NOTE1
46  SDIN/ID2  No Function./ID(4:1)These pins select select LCM type. See NOTE1
47  SCK/ID3  No Function./ID(4:1)These pins select select LCM type. See NOTE1
48  DISPLAY CONTROL/ID4  Display Enable(Hi Active) / ID [4:1]. These pins select LCM type.
49  /RESET  Global Reset (Low Active)
50  GND   Power ground

Note1

ID Pins Definiton:

  PIN 45 ID1 PIN 46 ID2 PIN 47 ID3 PIN 48 ID4
3.5'' Module X 0 0 X
4.3'' Module X 1 0 X
5.0'' Module X 0 1 X
7.0'' Module X 1 1 X

1.Resistor=10k 0hm

2."X"=No Use

Capacitive Touch Panel (CTP) Interface

Pin
Number		SymbolFunction
1 VSS Touch Panel Output Pin
2 TPVDD Power Supply Voltage (3.3V)
3 SCL I2C Clock
4 SDA I2C Data
5 INT The interrupt the CTP to the Host
6 RST RESET



General Specification

ItemDimensionUnit
Display Resolutions 800 × 3(RGB) x 480 Dots －
LCD Type a-Si TFT, Normally white, Transmissive type mm
Touch Panel

True Multi-Touch Capacitive Touch Panel

True Multi-touch with up to 5 Points of Absolution

 mm
Screen size (inch) 5.0 inch
Viewing Direction

6 O'clock (Gray scale Inversion)*1

12 Oclock (*2)


Surface treatment Anti-Glare
Color configuration RGB Vertical Strip
Backlight Type White LED B/L
Weight 60 g
Interface 24 Bits RGB interface
ROHS This product conforms the RoHS of PTC



Absolute Maximum Ratings

ParameterSymbolConditionMinMaxUnit
Power Supply for TFT Panel VDD GND=0 -0.3 4.5 V
Power Supply for Backlight Unit VCC GND=0 -0.3 +20.0 V
Operating Temperature TOP (Ts) Note 1 -20 70 °C
Storage Temperature TST (Ta) Note 2 -30 80 °C

Note 1: Ts is the temperature of panel's surface.

Note 2: Ta is the ambient temperature of samples.



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Power Supply for TFT Panel VDD GND=0V 3.0 3.3 3.6 V
Power Supply for Backlight Unit VCC GND=0V 5 12 15 V
Input Voltage for TFT Panel VIH GND=0V 0.7VDD - VDD V
VIL GND=0V 0 － 0.3VDD
Supply Current for TFT Panel IDD IDD@VDD=3.3V - 90 140 mA
Supply Current for Backlight Unit ICC ICC@VCC=5V - 400 600
Supply Current for Backlight Unit ICC ICC@VCC=12V - 150 250
Input Voltage for PWM Signal VPH GND=0V 1.2 - - V
VPL GND=0V - - 0.4 V
Dimming Clock Rate fP GND=0V 5 - 100 KHz



SKU: PH800480T033-IHC07
Brand: Powertip
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€53.60
€47.80
€45.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€53.60 excl tax

DESCRIPTION

PH800480T033-IHC07 is 5-inch display, featuring IPS /with V com, BL power, high brightness, 3mm cover lens/OCR bonding.

Perfect for outdoor application, such as EV charger, measurement device, drone controller and solar energy controller.



DRAWING



SPECIFICATIONS

Interface Pin Function

Pin
Number		SymbolFunction
1 GND Power ground
2 VDD Power for Digital Circuit
3 VDD Power for Digital Circuit
4 VCC Power for LED backlight
5 VCC Power for LED backlight
6 PWM Shutdown & Dimming control input for backlight- Do not allow this pin to float. "Hi"=100%, "Low"=0%.
7 GND Power ground
8 R0 Red Data
9 R1

Red Data
10 R2 Red Data
11 R3 Red Data
12 GND Power ground
13 R4

Red Data
14 R5 Red Data
15 R6 Red Data
16 R7 Red Data
17 GND Power ground
18 G0 Green Data
19 G1 Green Data
20 G2 Green Data
21 G3 Green Data
22 GND Power ground
23 G4 Green Data
24 G5 Green Data
25 G6 Green Data
26 G7 Green Data
27 GND Power ground
28 B0 Blue Data
29 B1 Blue Data
30 B2

Blue Data
31 B3 Blue Data
32 GND Power ground
33 B4 Blue Data
34 B5 Blue Data
35 B6 Blue Data
36 B7 Blue Data
37 GND Power ground
38 HS Line synchronization signal. Horizontal Sync Input.
39 VS Frame synchronization signal. Vertical Sync Input.
40 GND Power ground
41 DE Display enable pin from controller. Data Input Enable.
42  GND Power ground
43  DCLK Sample clock- Data will be latched at the falling edge of DCLK.
44  GND Power ground
45  CS/ID1  No Function./ID(4:1)These pins select select LCM type. See NOTE1
46  SDIN/ID2  No Function./ID(4:1)These pins select select LCM type. See NOTE1
47  SCK/ID3  No Function./ID(4:1)These pins select select LCM type. See NOTE1
48  DISPLAY CONTROL/ID4  Display Enable(Hi Active) / ID [4:1]. These pins select LCM type.
49  /RESET  Global Reset (Low Active)
50  GND   Power ground

Note1

ID Pins Definiton:

  PIN 45 ID1 PIN 46 ID2 PIN 47 ID3 PIN 48 ID4
3.5'' Module X 0 0 X
4.3'' Module X 1 0 X
5.0'' Module X 0 1 X
7.0'' Module X 1 1 X

1.Resistor=10k 0hm

2."X"=No Use

Capacitive Touch Panel (CTP) Interface

Pin
Number		SymbolFunction
1 VSS Touch Panel Output Pin
2 TPVDD Power Supply Voltage (3.3V)
3 SCL I2C Clock
4 SDA I2C Data
5 INT The interrupt the CTP to the Host
6 RST RESET



General Specification

ItemDimensionUnit
Display Resolutions 800 × 3(RGB) x 480 Dots －
LCD Type a-Si TFT, Normally white, Transmissive type mm
Touch Panel

True Multi-Touch Capacitive Touch Panel

True Multi-touch with up to 5 Points of Absolution

 mm
Screen size (inch) 5.0 inch
Viewing Direction

6 O'clock (Gray scale Inversion)*1

12 Oclock (*2)


Surface treatment Anti-Glare
Color configuration RGB Vertical Strip
Backlight Type White LED B/L
Weight 60 g
Interface 24 Bits RGB interface
ROHS This product conforms the RoHS of PTC



Absolute Maximum Ratings

ParameterSymbolConditionMinMaxUnit
Power Supply for TFT Panel VDD GND=0 -0.3 4.5 V
Power Supply for Backlight Unit VCC GND=0 -0.3 +20.0 V
Operating Temperature TOP (Ts) Note 1 -20 70 °C
Storage Temperature TST (Ta) Note 2 -30 80 °C

Note 1: Ts is the temperature of panel's surface.

Note 2: Ta is the ambient temperature of samples.



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Power Supply for TFT Panel VDD GND=0V 3.0 3.3 3.6 V
Power Supply for Backlight Unit VCC GND=0V 5 12 15 V
Input Voltage for TFT Panel VIH GND=0V 0.7VDD - VDD V
VIL GND=0V 0 － 0.3VDD
Supply Current for TFT Panel IDD IDD@VDD=3.3V - 90 140 mA
Supply Current for Backlight Unit ICC ICC@VCC=5V - 400 600
Supply Current for Backlight Unit ICC ICC@VCC=12V - 150 250
Input Voltage for PWM Signal VPH GND=0V 1.2 - - V
VPL GND=0V - - 0.4 V
Dimming Clock Rate fP GND=0V 5 - 100 KHz



Products specifications
Brand Powertip
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Touch Panel IC Controller HY4635
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Powertip
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Touch Panel IC Controller HY4635
Preferred - Not Preferred Preferred
