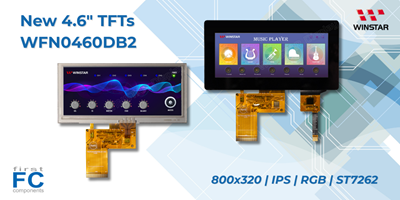

FIRST Components introduces Winstar’s WFN0460DB2 series, a versatile range of 4.6-inch bar-type TFT LCD displays.
Designed for applications requiring a compact design, wide viewing angles, and flexible touch options, this series provides a reliable solution for professional audio equipment, industrial HMIs, medical devices, and more.
With 800×320 resolution, IPS technology and a bar-type format, the WFN0460DB2 series delivers sharp images and consistent color stability, even under intensive operating conditions.
The series is available in multiple configurations, offering a choice of non-touch, resistive touch panel (RTP), or projected capacitive touch panel (PCAP), as well as standard or high-brightness versions, to adapt to different environments and application requirements.
Below, we present two representative models from the family, each featuring specific touch and brightness characteristics, designed to meet a variety of project needs.
Equipped with a resistive touch panel (RTP) and 350 cd/m² brightness, this display ensures precise and reliable input, making it ideal for industrial controls, DJ and audio mixers, and devices that require the dependability of resistive technology.
 |
🔹 Size: 4.6 inches 🔹 Resolution: 800x320 🔹 Module Dimension: 120.70x56.16x4.20 mm 🔹 Active Area: 108.00x43.20 mm 🔹 View Angle: 80/80/80/80 (IPS) 🔹 Interface: 24 bit RGB 🔹 Brightness: 350 cd/m² 🔹 Operating Temperature: -20~+70°C 🔹 Touch Panel: Resistive |
Equipped with a 5-point projected capacitive (PCAP) touch panel and high brightness of 850 cd/m², this display delivers smooth and responsive interaction, ensuring excellent visibility even in brightly lit environments—ideal for medical devices, embedded systems, and professional audio equipment.
|
🔹 Size: 4.6 inches
🔹 Resolution: 800x320 🔹 Module Dimension: 127.18x66.12x4.93 mm 🔹 Active Area: 108.00x43.20 mm 🔹 View Angle: 80/80/80/80 (IPS) 🔹 Interface: 24 bit RGB 🔹 Brightness: 850 cd/m² 🔹 Operating Temperature: -20~+70°C 🔹 Touch Panel: Capacitive 🔹 CTP Interface: I2C 🔹 CTP IC: GT911 or equivalent |
 |
With such a broad range, the WFN0460DB2 series lets you choose the perfect configuration for your project!
For more technical information contact us at [email protected]. To get a dedicated quote for your project, contact our team of experienced sales representatives at [email protected].
