Today we introduce the new series of character LCD Display Modules with UART interface, designed to provide an impeccable viewing experience characterized by intuitive usability, great versatility, and reliable performance. Discover all the benefits:
🔹 Flexible Interface: Our new modules support a default UART interface but allow easy switching to SPI or I2C interfaces through jumper configuration on the display board.
🔹 Streamlined Command Set: Bid farewell to the complexities of traditional LCD controller commands. Our UART modules boast a comprehensive set of instructions managed by the onboard MCU, bypassing the need to deal with complex LCD controller commands, allowing users to focus solely on application layer programming.
🔹 Effortless Parameter Adjustment: Adjusting backlight brightness and LCD contrast with our modules is a breeze thanks to dedicated commands managed by the MCU.
🔹 Effortless Integration: Each module comes complete with a PCB board with 4 corner holes serving as a frame for secure and quick mounting.
Whether it's industrial control panels, consumer electronics, or any other application requiring a compact and reliable display solution, the new UART LCD Series offers unparalleled performance and flexibility, making it the ideal choice for your next project.
|
|

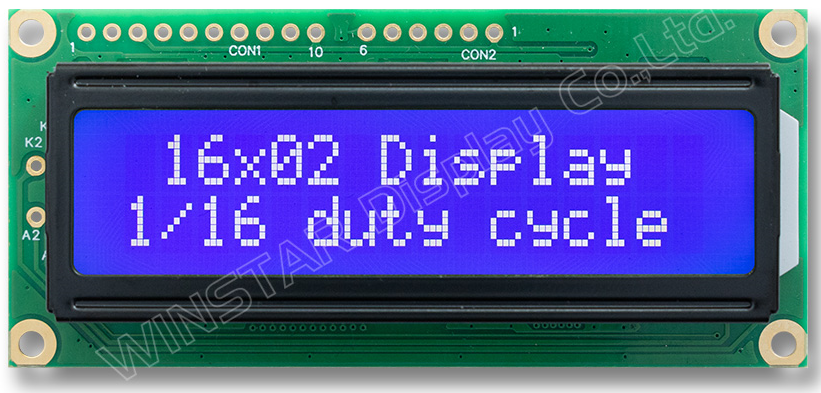

â–ºNumber of Characters: 16 × 2 â–ºDimensions: 80.0 × 36.0 × 13.5 mm â–ºView Area: 66.0 × 16.0 mm â–ºActive Area: 56.20 × 11.5 mm â–ºDot Size: 0.55 × 0.65 mm â–ºDot Pitch: 0.60 × 0.70 mm â–ºCharacter Size: 2.95 × 5.55 mm â–ºCharacter Pitch: 3.55 × 5.95 mm â–ºDuty: 1/16 â–ºController IC: ST7066 â–ºInterface: UART (Option SPI/I2C) â–ºOperating Temperature: -20~+70℃ â–º Read more |
|
|

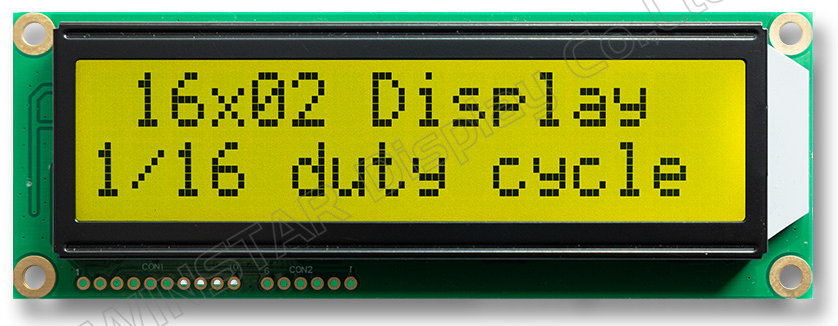

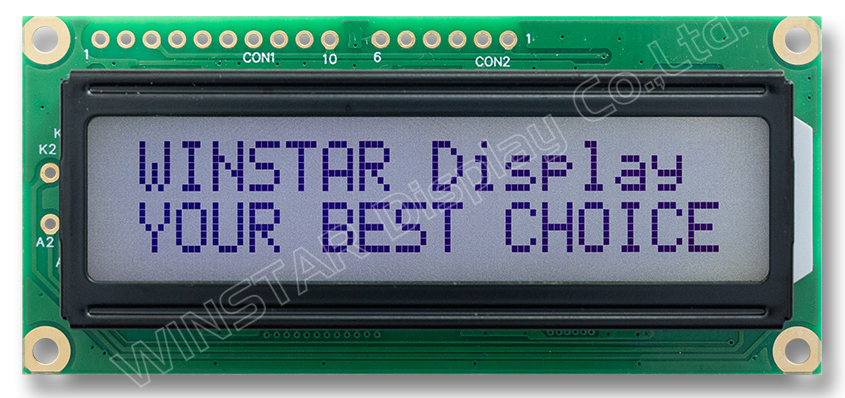

â–ºNumber of Characters: 16 × 2 â–ºDimensions: 122.0 × 44.0 × 13.6 mm â–ºView Area: 99.0 × 24.0 mm â–ºActive Area: 94.2 × 20.0 mm â–ºDot Size: 0.92 × 1.1 mm â–ºDot Pitch: 0.97 × 1.16 mm â–ºCharacter Size: 4.80 × 8.06 mm â–ºCharacter Pitch: 5.96 × 9.66 mm â–ºDuty: 1/16 â–ºController IC: ST7066 â–ºInterface: UART (Option SPI/I2C) â–ºOperating Temperature: -20~+70℃ â–º Read More |
|
|

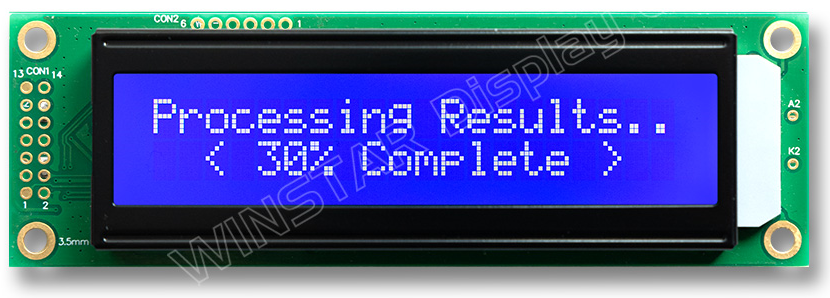

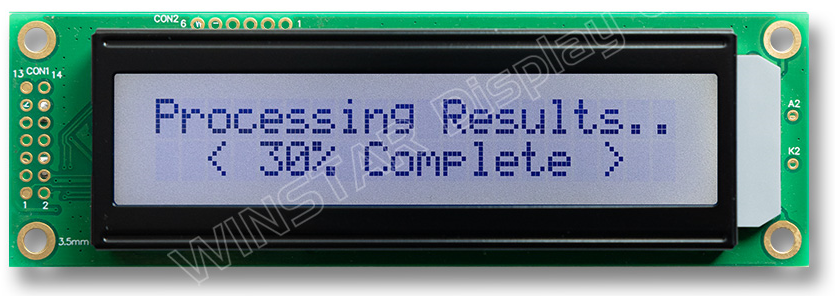

â–ºNumber of Characters: 20 × 2 â–ºDimensions: 116.0 × 37.0 × 13.9 mm â–ºView Area: 85.0 × 18.6 mm â–ºActive Area: 73.5 × 11.5 mm â–ºDot Size: 0.60 × 0.65 mm â–ºDot Pitch: 0.65 × 0.70 mm â–ºCharacter Size: 3.20 × 5.55 mm â–ºCharacter Pitch: 3.70 × 5.95 mm â–ºDuty: 1/16 â–ºController IC: ST7066 â–ºInterface: UART (Option SPI/I2C) â–ºOperating Temperature: -20~+70℃ â–º Read More |
|
|

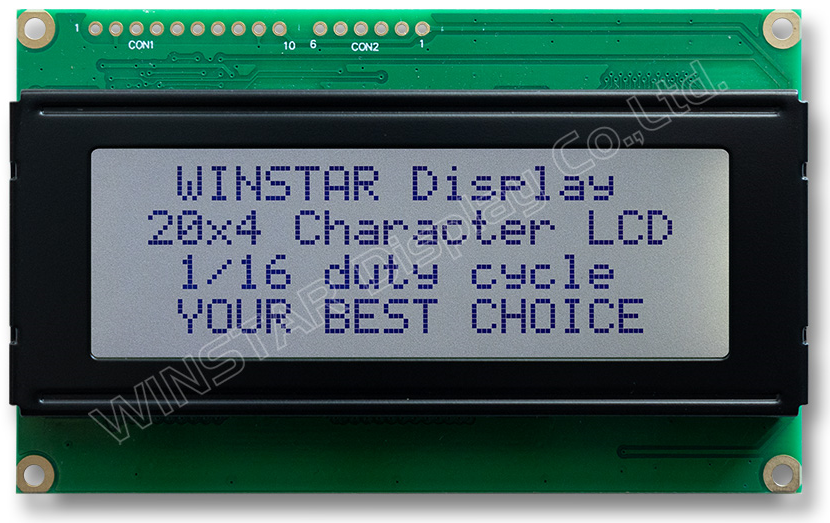

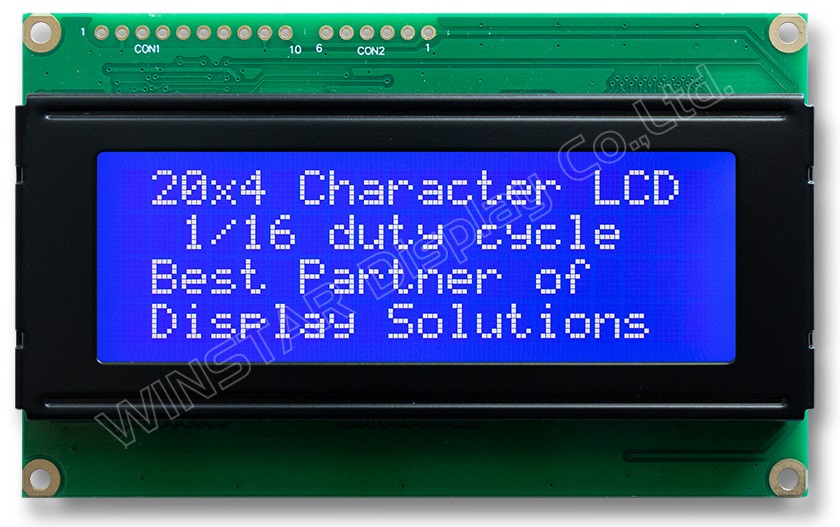

â–ºNumber of Characters: 20 × 4 â–ºDimensions: 98.0 × 60.0 × 13.6 mm â–ºView Area: 77.0 × 25.2 mm â–ºActive Area: 70.4 × 20.8 mm â–ºDot Size: 0.55 × 0.55 mm â–ºDot Pitch: 0.60 × 0.60 mm â–ºCharacter Size: 2.95 × 4.75 mm â–ºCharacter Pitch: 3.55 × 5.35 mm â–ºDuty: 1/16 â–ºController IC: ST7066 â–ºInterface: UART (Option SPI/I2C) â–ºOperating Temperature: -20~+70℃ â–º Read More |
For further technical information, contact us at [email protected]>/span>. To receive a dedicated quotation for your project, reach out to our Team of experienced Sales Professionals at [email protected].
We are pleased to announce our new partnership with Greenconn, a leading provider of hardware for PCB connectivity. Thanks to significant investments in Research and Development, coupled with the high quality of components produced in accordance with environmental sustainability standards, Greenconn has quickly become a driving force for innovation in the industrial, automotive, and consumer sectors.

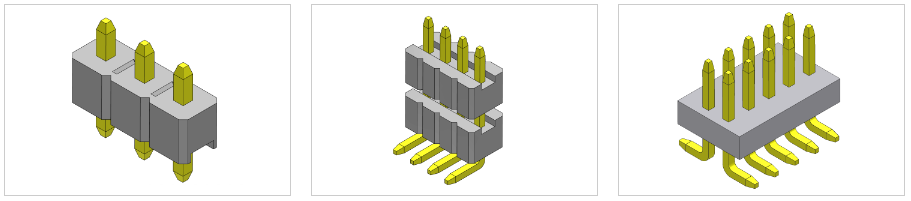

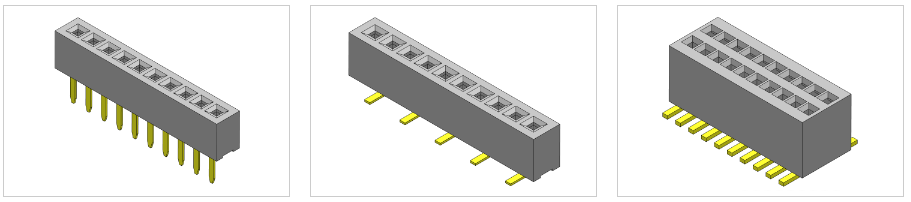

You can find in our catalog a wide range of board-to-board connectors compatible with all our Chip-on-Board (COB) displays, but not only that:
For any hardware component needs for connectivity, do not hesitate to contact us at [email protected]. Our Technical Staff will guide you in choosing the most suitable solution for your project.
If you're interested, take a look at our online catalogue now. You'll find datasheets, prices, and availability for over 2000 items! If you can't find the product you're looking for, call +39 0332 1888005 or send an email to [email protected]
