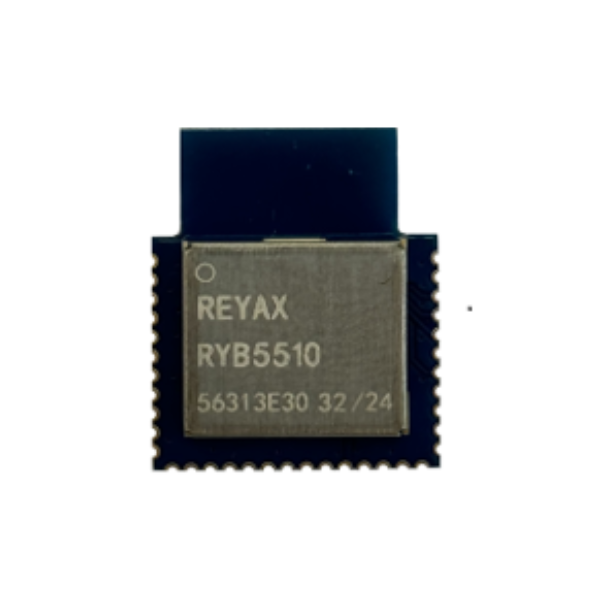

RYB5510

2.4GHz Bluetooth 5.4 module, Thread, Matter, Zigbee and Proprietary module with Integrated Antenna, 18mm*15mm*2.4mm

DESCRIPTION

The RYB5510 is a Bluetooth V5.4 Low Energy Module.
By using the AT command which is developed by REYAX, your products could be fast and easily connected with the smartphones and all kinds of Bluetooth devices.

STM STM32WBA55UGI6 1M Flash Arm® 32-bit Cortex®-M33 CPU with TrustZone®, MPU, DSP, and FPU running at up to 100 MHz industry-standard core.
RF transceiver supporting Bluetooth® Low Energy specification 5.4, IEEE 802.15.4-2015 PHY and MAC, supporting Thread, Matter and Zigbee®
Metal cover against EMI interference
Designed with PCB integrated antenna.

SPECIFICATION

Item	Min.	Typical	Max.	Unit	Condition
VDD Power supply	1.71	3.3	3.6	V	VDD
RF Output power			10	dBm	1 dB steps
RF Sensitivity		-96 -97.5		dBm	@1 M bps @250K bps
RF Input level			10	dBm
RF Frequency range	2402		2480	MHz
Frequency accuracy		±30		ppm
Transmit Mode current		5.2		mA	TX at 0dBm
Receive Mode current		4.41		mA	1 Mbps, SMPS ON
Standby mode current		160		nA	16 wake-up pins
On air data rate	0.125		2	Mbps
Baud rate		115200		bps	8, N, 1
Digital Input Level High	0.7*VDD		VDD	V	VIH
Digital Input Level Low	0		0.3*VDD	V	VIL
Digital Output Level High	0.9		VDD	V	VOH
Digital Output Level Low			0.1	V	VOL
Dimension				mm	18mm x 15mm x 2.4mm
Weight		2		g
Operating temperature	-40	25	+85	˚C

SKU: RYB5510

Brand: Reyax

Available: Yes

Be the first to review this product

Price Breaks

Quantity

Price

€11.80

€10.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€11.80 excl tax
