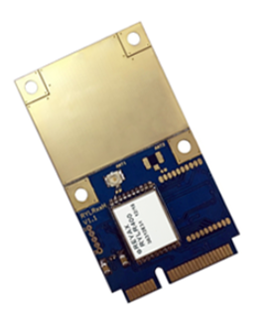

RYLR40H1

Frequency Range:426/433/470 MHz, Control by AT command, Full/ Half-size Mini PCIe Card
  • Easy to integrate into the operating system.
  • No extra telecommunication fees.
  • Control easily by AT commands.
  • Up to 65535 nodes.
  • AES128 Data encryption.
  • Standard mini PCIe full-size 30mm*50.95mm / half-size 30mm*26.8mm.
  • Temperature range: -40 to +85°C.
  • Mini PCIe Signal Type USB2.0.

RYLR40H1 is a REYAX proprietary Lora host mini PCIe card. According to the “AT command” that can serve the data exchange between surrounding Lora node products and controller, it is very suitable for regional applications and can easily control and monitor Lora node products.

Ordering No. Frequency Range Corresponding model
RYLR40H1 410~525MHz RYLR405, RYLR406



Item Min. Typical Max. Unit Condition
VDD Power Supply 2 3.3 3.6 V VDD
RF Output Power Range -4   15 dBm
Filter insertion loss 1 2 3 dB
RF Sensitivity -148     dBm
RF Input Level     10 dBm
Frequency Range 410 433 525 MHz RYLR40H1
Frequency Accuracy   ±2   ppm
Communication Range   4.5 15 KM Depend on RF parameter
Transmit Current   86   mA RFOP = +15 dBm
Receive Current   33   mA
USB Specification   2.0     full-speed (12 Mbps)
Baud rate   115200   bps
Cycling (erase / write)



EEPROM data memory

  300   K Cycles
Weight   12   g
Operating Temperature -40 25 +85 ˚C

SKU: RYLR40H1
Brand: Reyax
  • Easy to integrate into the operating system.
  • No extra telecommunication fees.
  • Control easily by AT commands.
  • Up to 65535 nodes.
  • AES128 Data encryption.
  • Standard mini PCIe full-size 30mm*50.95mm / half-size 30mm*26.8mm.
  • Temperature range: -40 to +85°C.
  • Mini PCIe Signal Type USB2.0.

RYLR40H1 is a REYAX proprietary Lora host mini PCIe card. According to the “AT command” that can serve the data exchange between surrounding Lora node products and controller, it is very suitable for regional applications and can easily control and monitor Lora node products.

Ordering No. Frequency Range Corresponding model
RYLR40H1 410~525MHz RYLR405, RYLR406



Item Min. Typical Max. Unit Condition
VDD Power Supply 2 3.3 3.6 V VDD
RF Output Power Range -4   15 dBm
Filter insertion loss 1 2 3 dB
RF Sensitivity -148     dBm
RF Input Level     10 dBm
Frequency Range 410 433 525 MHz RYLR40H1
Frequency Accuracy   ±2   ppm
Communication Range   4.5 15 KM Depend on RF parameter
Transmit Current   86   mA RFOP = +15 dBm
Receive Current   33   mA
USB Specification   2.0     full-speed (12 Mbps)
Baud rate   115200   bps
Cycling (erase / write)



EEPROM data memory

  300   K Cycles
Weight   12   g
Operating Temperature -40 25 +85 ˚C
