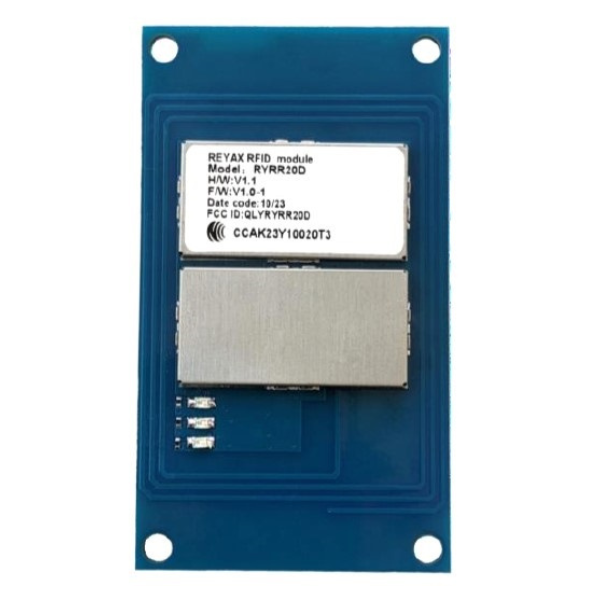

RYRR20D

Multiprotocol Fully Integrated 13.56MHz RS232 Interface RFID Antenna Module

Description

The RYRR20D module is a 13.56-MHz RFID. Built-in programming options make the device suitable for a wide range of applications for proximity and vicinity identification systems.

Specification

Item	Min.	Typical	Max.	Unit	Condition
Operation Voltage	4.5	5	6	V	VDD
RS-232 Interface Hi level		+5.4		V
RS-232 Interface Low level		-5.4		V
Indicator,/RTS/NMI Interface level		3.3			RXD High-level input voltage
RF Output Power		20		dBm	RXD Low-level input voltage
RF transmit current		90		mA
Communication Range		4		cm
RESET_N low duration		60		ms	Standard card
Baud Rate		19200		bps
RF Frequency Range	13.553	13.56	13.567	MHz	8,N,1
Storage temperature	-40	25	+85	˚C
Operating Temperature	-40	25	+85	˚C
Humidity			90	%
Antenna					Internal PCB Antenna

SKU: RYRR20D

Brand: Reyax

Available: Yes

Be the first to review this product

Price Breaks

Quantity

Price

€30.60

€27.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€30.60 excl tax
