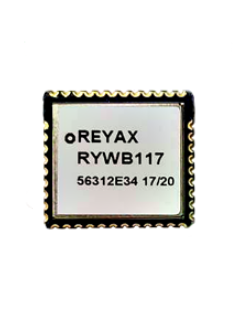

RYWB117

Wi-Fi 2.4GHz Ultra Low Power, uA Level Associate AP Current, Bluetooth 5.0 UART/SPI Interface

Compliant to single-spatial stream IEEE 802.11 b/g/n, Bluetooth 5
Co-existence of multiple wireless protocols managed by an internal protocol arbitration manager
Ultra-low power consumption with multiple power modes to reduce the system energy consumption
Leading edge RF performance providing long range and higher throughputs
Transmit power up to +21dBm with integrated PA
Wi-Fi receive sensitivity as low as -98.5 dBm
BT receive sensitivity as low as -95 dBm
Support for Client mode, Access point mode, Wi-Fi Direct and enterprise security
Support for concurrent Wi-Fi, Bluetooth 5
8.9 mA transmit current in BT 5 mode, 2 Mbps data rate
Operating temperature: -40°C to +85°C.

REYAX’s RYWB117 module provides a comprehensive multi-protocol wireless solution including 802.11 b/g/n, dual-mode Bluetooth 5.

Item	Min.	Typical	Max.	Unit	Description
Operation Voltage	1.75	3.3	3.6	V	VBATT
Imax			400	mA	Maximum Current consumption in TX mode
IPmax			500	mA	Peak current rating for power supply
WLAN Data Transfer Average Current		270		mA	11Mbps Tx
WLAN Data Receive Average Current		48.2		mA	72 Mbps Rx
BR/EDR TX Active Current, 3 Mbps EDR		140		mA	HP chain, Tx Power = Maximum
BR/EDR RX Active Current, 3 Mbps EDR		26.7		mA	HP chain
BLE TX Active Current		190		mA	HP Chain, Tx Power = Maximum (20 dBm)
BLE RX Active Current		26.7		mA	HP chain
WLAN Standby Associated Mode Current		119		uA	DTIM=3 Cisco Aironet AP
WLAN Standby Associated Mode Current		51		uA	DTIM=10 Cisco Aironet AP
Quiescent current		3		nA
Baud Rate	9600	115200	921600	bps
Wireless Protocols					IEEE 802.11b, 802.11g, 802.11n Bluetooth 5 (2.1+EDR, LE, LE 2 Mbp)
Operational Modes Supported					Wi-Fi Access Point with support for up to 16 clients Wi-Fi Client Wi-Fi Direct Bluetooth Classic (EDR v 2.1) Wi-Fi Client + Bluetooth Low Energy
Receive Power			10	dBm
WLAN Modulation					OFDM with BPSK, QPSK, 16-QAM, and 64-QAM 802.11b with CCK and DSSS
WLAN Operating Frequency	2.412		2.484	GHz
WLAN Bandwidth		20		MHz
WLAN Data Rates	1 6		11 54	Mbps	802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: MCS0 to MCS7
Bluetooth Channel Spacing	1		2	MHz	BR, EDR, – 1 MHz LE – 2 MHz

SKU: RYWB117

Brand: Reyax

Available: No

Price Breaks

Quantity

Price

€28.90

€28.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€28.90 excl tax

Compliant to single-spatial stream IEEE 802.11 b/g/n, Bluetooth 5
Co-existence of multiple wireless protocols managed by an internal protocol arbitration manager
Ultra-low power consumption with multiple power modes to reduce the system energy consumption
Leading edge RF performance providing long range and higher throughputs
Transmit power up to +21dBm with integrated PA
Wi-Fi receive sensitivity as low as -98.5 dBm
BT receive sensitivity as low as -95 dBm
Support for Client mode, Access point mode, Wi-Fi Direct and enterprise security
Support for concurrent Wi-Fi, Bluetooth 5
8.9 mA transmit current in BT 5 mode, 2 Mbps data rate
Operating temperature: -40°C to +85°C.

REYAX’s RYWB117 module provides a comprehensive multi-protocol wireless solution including 802.11 b/g/n, dual-mode Bluetooth 5.

Item	Min.	Typical	Max.	Unit	Description
Operation Voltage	1.75	3.3	3.6	V	VBATT
Imax			400	mA	Maximum Current consumption in TX mode
IPmax			500	mA	Peak current rating for power supply
WLAN Data Transfer Average Current		270		mA	11Mbps Tx
WLAN Data Receive Average Current		48.2		mA	72 Mbps Rx
BR/EDR TX Active Current, 3 Mbps EDR		140		mA	HP chain, Tx Power = Maximum
BR/EDR RX Active Current, 3 Mbps EDR		26.7		mA	HP chain
BLE TX Active Current		190		mA	HP Chain, Tx Power = Maximum (20 dBm)
BLE RX Active Current		26.7		mA	HP chain
WLAN Standby Associated Mode Current		119		uA	DTIM=3 Cisco Aironet AP
WLAN Standby Associated Mode Current		51		uA	DTIM=10 Cisco Aironet AP
Quiescent current		3		nA
Baud Rate	9600	115200	921600	bps
Wireless Protocols					IEEE 802.11b, 802.11g, 802.11n Bluetooth 5 (2.1+EDR, LE, LE 2 Mbp)
Operational Modes Supported					Wi-Fi Access Point with support for up to 16 clients Wi-Fi Client Wi-Fi Direct Bluetooth Classic (EDR v 2.1) Wi-Fi Client + Bluetooth Low Energy
Receive Power			10	dBm
WLAN Modulation					OFDM with BPSK, QPSK, 16-QAM, and 64-QAM 802.11b with CCK and DSSS
WLAN Operating Frequency	2.412		2.484	GHz
WLAN Bandwidth		20		MHz
WLAN Data Rates	1 6		11 54	Mbps	802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: MCS0 to MCS7
Bluetooth Channel Spacing	1		2	MHz	BR, EDR, – 1 MHz LE – 2 MHz
