SK-144G2

Starter Kit for TFT 1.44" 128x128, Intelligent Display Module with an embedded GOLDELOX graphics processor that delivers 'stand-alone' functionality to any project, 200cd/m²

1.44" micro LCD Display

The uLCD-144G2 display module is compact and cost effective and features a 1.44” LCD TFT screen, which is the smallest LCD TFT module available from 4D Systems. Driven by the GOLDELOX processor, the uLCD-144G2 is the perfect compact display solution for any application requiring a small embedded screen.

The module is an elegant combination of a 1.44” TFT LCD screen, along with a modest but comprehensive collection of I/O Features. These include a micro-SD card connector, two general purpose input/output pins (GPIO's) with Dallas 1-Wire Support, Analog Input and sound generation capability, along with serial communications.

4DGL is a graphics oriented language allowing the developer to write applications in a high level language, syntax similar to popular languages such as BASIC, C and Pascal. The module offers modest but comprehensive I/O features that can interface to serial, analogue, digital, buttons, joystick, sound generation and Dallas 1-wire devices.

This display module serves as a perfect solution to be deployed at the forefront of any product design, requiring a brilliance of colour, animation or images on any application. This GOLDELOX driven Intelligent Display Module is a perfect example of where art meets technology.



Information about the display module

  • Low-cost LCD display graphics user interface solution.
  • 128 x 128 resolution, 65K true to life colours, LCD-TFT screen.
  • 1.44" diagonal size Active Area on the uLCD Display.
  • LED back lighting with greater than 150° viewing angle.
  • Easy 10 pin interface to any external device:
    • 3.3Vout, IO2, GND, IO1, RESET, GND, RX, TX, +5V, 5V OUT.
  • Powered by the 4D-Labs GOLDELOX graphics processor highly optimised for 4DGL, the high level 4D Graphics Language.
  • 2 x GPIO ports supports:
    • Digital I/O
    • A/D converter with 8/10 bit resolution
    • Complex sound generation
    • Dedicated RTTTL tune engine
    • Multi-Switch Joystick
    • Dallas 1-Wire
  • 10K bytes of flash memory for user code storage and 510 bytes of RAM for user variables (255 x 16bit vars).
  • 1 x Asynchronous hardware serial port, TTL interface, with 300 baud to 600K baud.
  • On-board micro-SD memory card adaptor for storing of icons, images, animations, etc. Supports 64MB to 2GGB micro-SD as well as micro-SDHC memory cards starting from 4GB and above. A SPI compatible micro-SD card is required.
  • Comprehensive set of built in high level 4DGL graphics functions and algorithms that can draw lines, circles, text, and much more.
  • Display full colour images, animations, icons and video clips.
  • Supports all available Windows fonts and characters (imported as external fonts).
  • 4.0V to 5.5V range operation (single supply).
  • Module dimensions: 31 x 36.2 x 14mm.
  • Weighing ~8.1 g.
  • Display Viewing Area: 26.5 x 25.50mm
  • 4 x Mounting Holes with 2.0mm diameter for mechanical mounting.
  • RoHS Compliant.
  • CE Compliant (On Modules with CE Mark).

The uLCD-144-G2 includes the following items:

  • uLCD-144-G2 Display Module

  • 150mm 5-way Female-Female Jumper Cable

  • 5 way Male-Male Adaptor

  • Getting Started Guide Available as a Download

If you are a first time user and just beginning your development, we strongly recommend purchasing a Starter Kit of this same model as it includes additional items that allow you to get started with your development immediately.



Documentation
pdf uLCD-144-G2 3D PDF 1.6 MB |

Rev. 4.0

Rev. 1.5

Rev. 1.0

Rev. 1.0
Software Tools


Product Page
GOLDELOX Processor Documentation
pdf GOLDELOX Datasheet 2.8 MB |

Rev. 2.1

Rev. 7.1
STEP Models

Rev. 4.0
Related Documents
 Application Notes Tutorials & Instruction


For any technical clarification, refer to the 4D support center at the link https://4dsystems.com.au/support
SKU: SK-144G2
Brand: 4D Systems
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€50.60
€48.10
€44.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€50.60 excl tax

1.44" micro LCD Display

The uLCD-144G2 display module is compact and cost effective and features a 1.44” LCD TFT screen, which is the smallest LCD TFT module available from 4D Systems. Driven by the GOLDELOX processor, the uLCD-144G2 is the perfect compact display solution for any application requiring a small embedded screen.

The module is an elegant combination of a 1.44” TFT LCD screen, along with a modest but comprehensive collection of I/O Features. These include a micro-SD card connector, two general purpose input/output pins (GPIO's) with Dallas 1-Wire Support, Analog Input and sound generation capability, along with serial communications.

4DGL is a graphics oriented language allowing the developer to write applications in a high level language, syntax similar to popular languages such as BASIC, C and Pascal. The module offers modest but comprehensive I/O features that can interface to serial, analogue, digital, buttons, joystick, sound generation and Dallas 1-wire devices.

This display module serves as a perfect solution to be deployed at the forefront of any product design, requiring a brilliance of colour, animation or images on any application. This GOLDELOX driven Intelligent Display Module is a perfect example of where art meets technology.



Information about the display module

  • Low-cost LCD display graphics user interface solution.
  • 128 x 128 resolution, 65K true to life colours, LCD-TFT screen.
  • 1.44" diagonal size Active Area on the uLCD Display.
  • LED back lighting with greater than 150° viewing angle.
  • Easy 10 pin interface to any external device:
    • 3.3Vout, IO2, GND, IO1, RESET, GND, RX, TX, +5V, 5V OUT.
  • Powered by the 4D-Labs GOLDELOX graphics processor highly optimised for 4DGL, the high level 4D Graphics Language.
  • 2 x GPIO ports supports:
    • Digital I/O
    • A/D converter with 8/10 bit resolution
    • Complex sound generation
    • Dedicated RTTTL tune engine
    • Multi-Switch Joystick
    • Dallas 1-Wire
  • 10K bytes of flash memory for user code storage and 510 bytes of RAM for user variables (255 x 16bit vars).
  • 1 x Asynchronous hardware serial port, TTL interface, with 300 baud to 600K baud.
  • On-board micro-SD memory card adaptor for storing of icons, images, animations, etc. Supports 64MB to 2GGB micro-SD as well as micro-SDHC memory cards starting from 4GB and above. A SPI compatible micro-SD card is required.
  • Comprehensive set of built in high level 4DGL graphics functions and algorithms that can draw lines, circles, text, and much more.
  • Display full colour images, animations, icons and video clips.
  • Supports all available Windows fonts and characters (imported as external fonts).
  • 4.0V to 5.5V range operation (single supply).
  • Module dimensions: 31 x 36.2 x 14mm.
  • Weighing ~8.1 g.
  • Display Viewing Area: 26.5 x 25.50mm
  • 4 x Mounting Holes with 2.0mm diameter for mechanical mounting.
  • RoHS Compliant.
  • CE Compliant (On Modules with CE Mark).

The uLCD-144-G2 includes the following items:

  • uLCD-144-G2 Display Module

  • 150mm 5-way Female-Female Jumper Cable

  • 5 way Male-Male Adaptor

  • Getting Started Guide Available as a Download

If you are a first time user and just beginning your development, we strongly recommend purchasing a Starter Kit of this same model as it includes additional items that allow you to get started with your development immediately.



Documentation
pdf uLCD-144-G2 3D PDF 1.6 MB |

Rev. 4.0

Rev. 1.5

Rev. 1.0

Rev. 1.0
Software Tools


Product Page
GOLDELOX Processor Documentation
pdf GOLDELOX Datasheet 2.8 MB |

Rev. 2.1

Rev. 7.1
STEP Models

Rev. 4.0
Related Documents
 Application Notes Tutorials & Instruction


For any technical clarification, refer to the 4D support center at the link https://4dsystems.com.au/support
Products specifications
Brand 4D Systems
Size 1.44"
Resolution 128x128
Viewing Area (mm) 26.50x5.50
Color Full Color
Nr. Of Color RGB 65K
Power supply 5V
Built-in Controller Goldelox
Brightness Range Standard 100~600cd/m²
Touch Panel No touch
O. Temperature (°C) -20~70

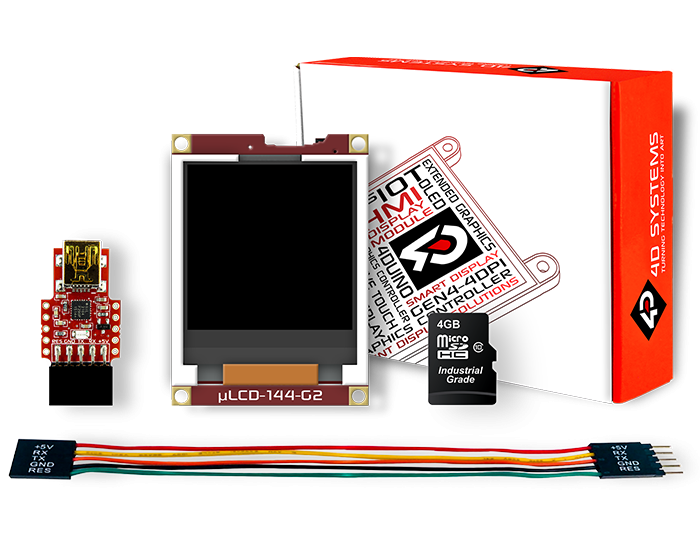

In the Box IN THE BOX: uLCD-144-G2 Display Module, 4GB Industrial microSD Card, uUSB-PA5-II Programming Adaptor, 150mm 5 way Female-Female jumper cable with Male-Male adaptor, Quick Start User Guide Available as a download
