SK-IA208048MC-070ABF-B

Starter Kit for Ubique TFT Panel 7'' 800x480 with CTP + ARM Cortex M7-based MCU @480Mhz with 32MB DRAM & ADE Software, Without Bezel
The Starter Kit includes:
  • IA208048MC-070AWD-E Smart HMI Solution
  • AC/DC power adaptor
  • AC power cord
  • DC power cord
  • MicroUSB/USB cable for download
  • 12-Pin extension cable
  • 20-Pin extension cable

Module information:

  • Working with ADE for delivering illuminating HMI
  • 7” 800x480 LCM with Capacitive touch panel (CTP) from Evervision Electronics Co., LTD / Resistive touch panel (RTP) already available on request
  • ARM Cortex M7-based MCU @480Mhz with 32MB DRAM
  • Built-in 2Gb (256MB) Flash memory for storage
  • Support ARGB (16,777,216 colors) with 256 levels of transparency
  • Support LCM backlight control
  • Support GPIO, PWM, Input-Capture and ADC functions
  • Support UART communication interfaces
  • Working with IOT’s extension board (sold separately) to support Ethernet, WiFi, RS-232, RS-485 and audio line-out



HMI Total Solutions that meet functional and aesthetic requirements for every application...

  • Appealing UI Design: creating an amazing HMI is no longer a far-fetched goal
  • Low-Code Development: design an HMI without any traditional computer programming
  • Faster Time-To-Market: fast prototyping & customer feedback can cut the development cycle time and lower the development risks

More information @ the link https://www.first-components.com/en/total-solution-for-your-hmi-with-nv-iot-tfts

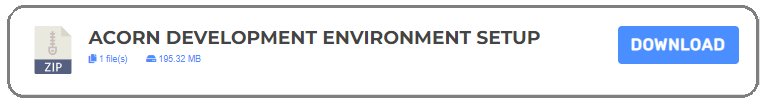

No-Code/ Low-Code HMI Development easy-to-learn and easy-to-use / SW ADE for design & deployment:



SKU: SK-IA208048MC-070ABF-B
Brand: NV-IOT
Available: Yes
€204.10 excl tax
The Starter Kit includes:
  • IA208048MC-070AWD-E Smart HMI Solution
  • AC/DC power adaptor
  • AC power cord
  • DC power cord
  • MicroUSB/USB cable for download
  • 12-Pin extension cable
  • 20-Pin extension cable

Module information:

  • Working with ADE for delivering illuminating HMI
  • 7” 800x480 LCM with Capacitive touch panel (CTP) from Evervision Electronics Co., LTD / Resistive touch panel (RTP) already available on request
  • ARM Cortex M7-based MCU @480Mhz with 32MB DRAM
  • Built-in 2Gb (256MB) Flash memory for storage
  • Support ARGB (16,777,216 colors) with 256 levels of transparency
  • Support LCM backlight control
  • Support GPIO, PWM, Input-Capture and ADC functions
  • Support UART communication interfaces
  • Working with IOT’s extension board (sold separately) to support Ethernet, WiFi, RS-232, RS-485 and audio line-out



HMI Total Solutions that meet functional and aesthetic requirements for every application...

  • Appealing UI Design: creating an amazing HMI is no longer a far-fetched goal
  • Low-Code Development: design an HMI without any traditional computer programming
  • Faster Time-To-Market: fast prototyping & customer feedback can cut the development cycle time and lower the development risks

More information @ the link https://www.first-components.com/en/total-solution-for-your-hmi-with-nv-iot-tfts

No-Code/ Low-Code HMI Development easy-to-learn and easy-to-use / SW ADE for design & deployment:



Products specifications
Brand NV-IOT
Size 7"
Resolution 800x480
Color Full Color
Operating System ARM Cortex M7-based MCU @480Mhz with 32MB DRAM
Display Interface UART
Touch Panel Capacitive
Preferred - Not Preferred Preferred
Download
Products specifications
Brand NV-IOT
Size 7"
Resolution 800x480
Color Full Color
Operating System ARM Cortex M7-based MCU @480Mhz with 32MB DRAM
Display Interface UART
Touch Panel Capacitive
Preferred - Not Preferred Preferred
